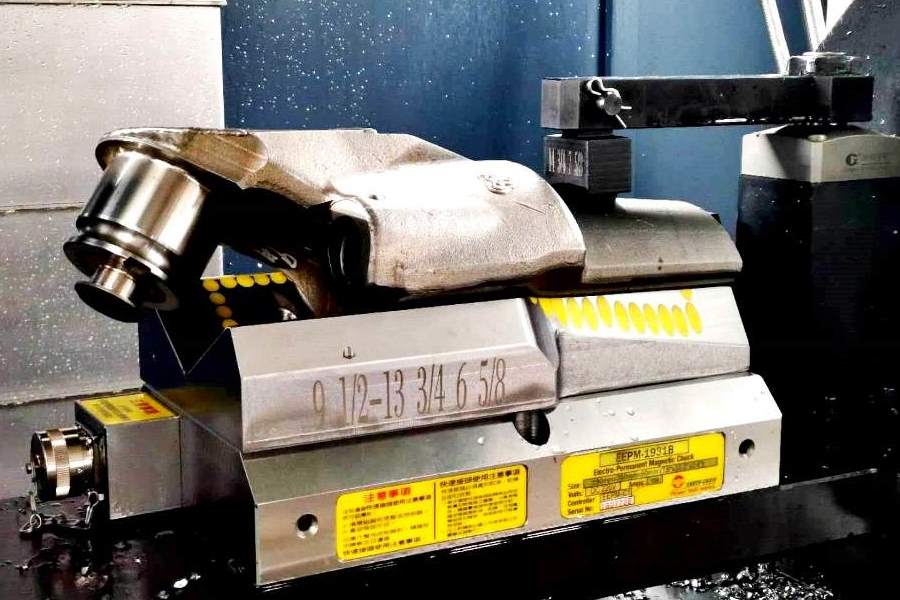

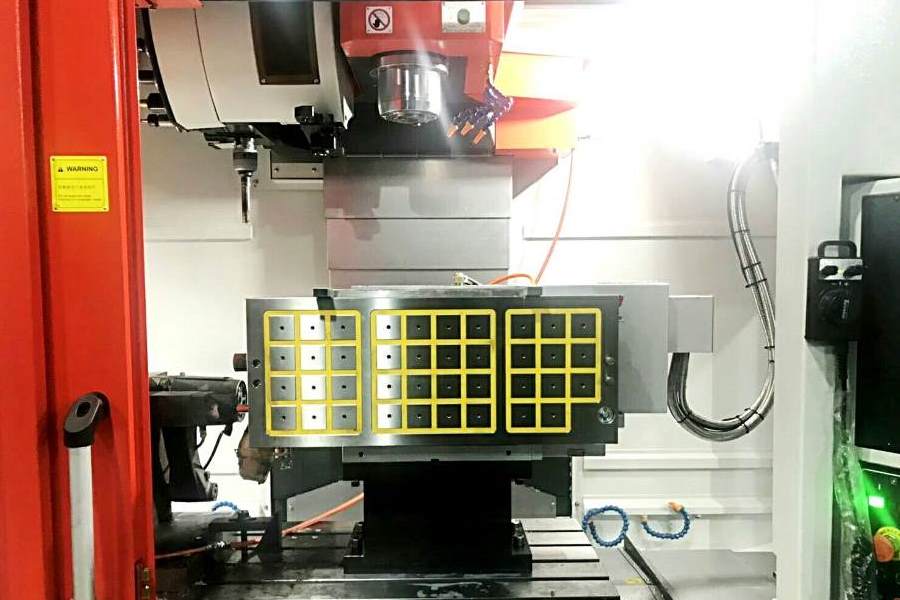

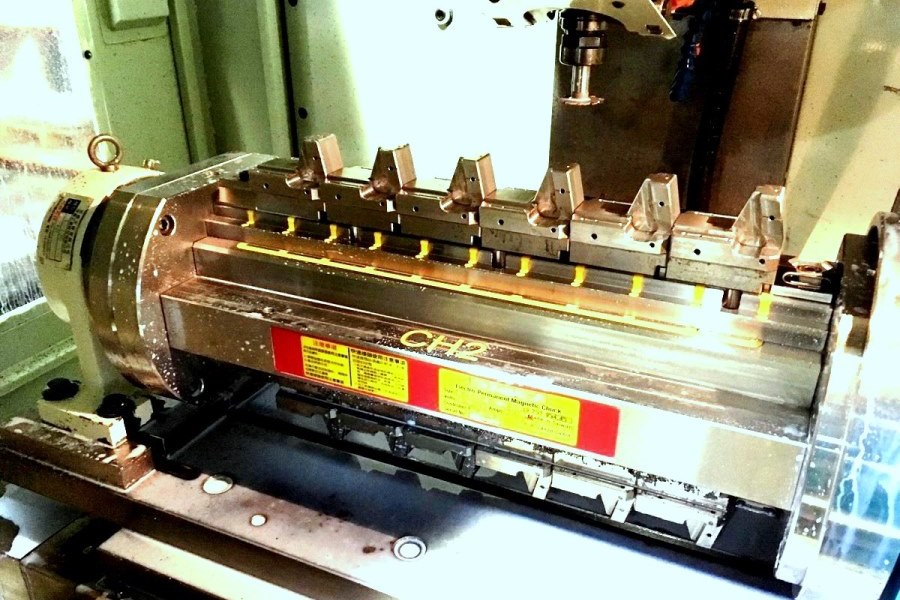

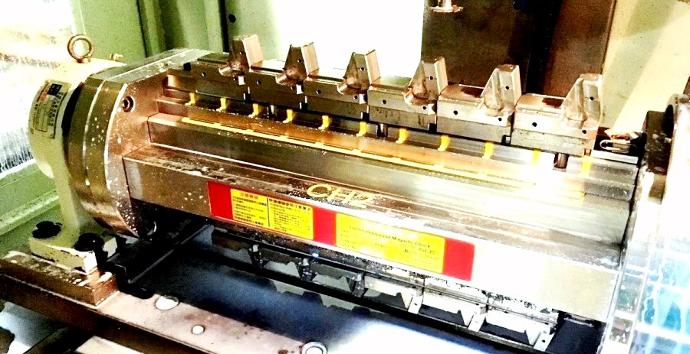

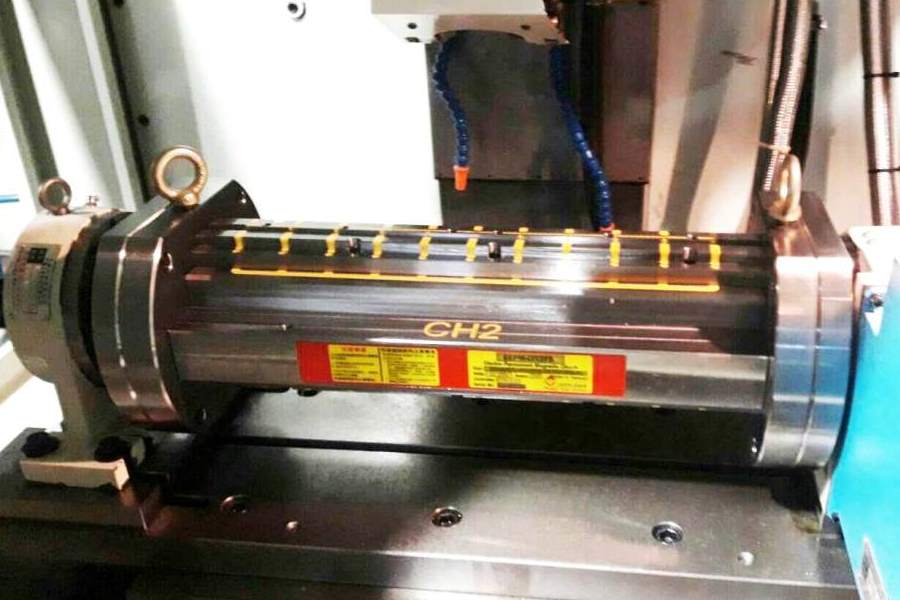

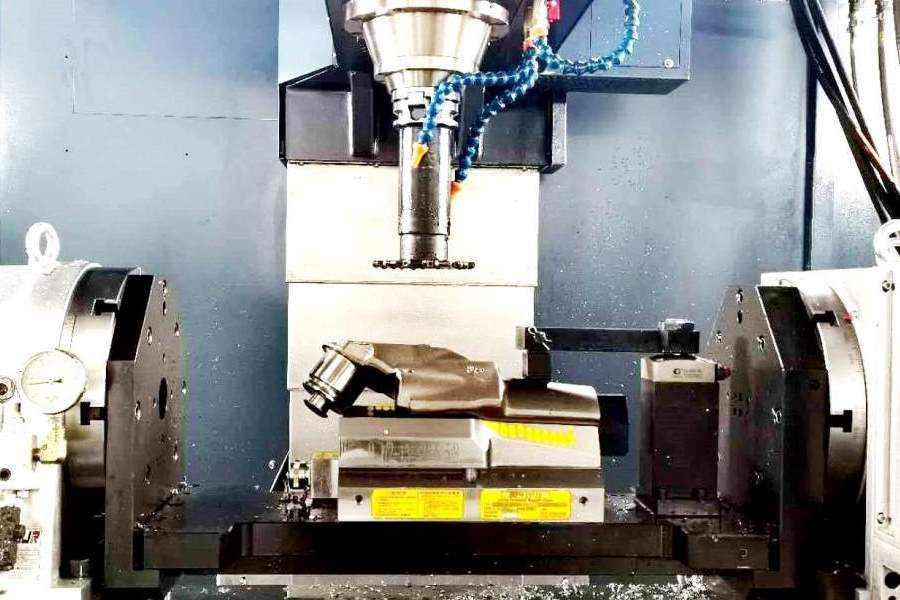

4 Axis Machining Applications

Without any obstructed movement of cutters during machining. Can be use all the functions of CNC 4 Axic Index Device completely.

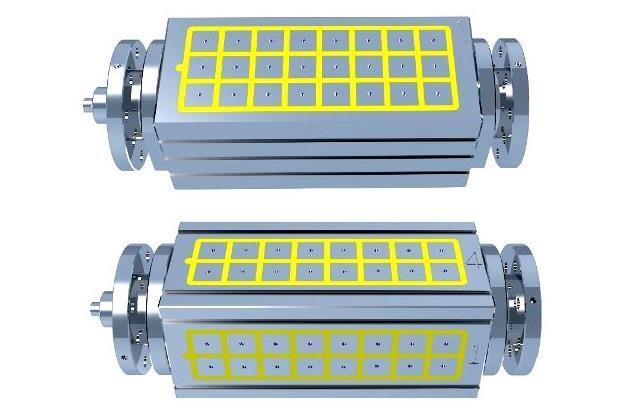

EEPM-CIT Series

Suitable to be used with combine with CNC 4 Axis Index Device

Super power magnetic force 1250kgf/100cm²±5%.(4 Poles)
Control each working face for ON and OFF, so it can be load and unload the workpiece on each working face. 3 seconds control for power ON and OFF.

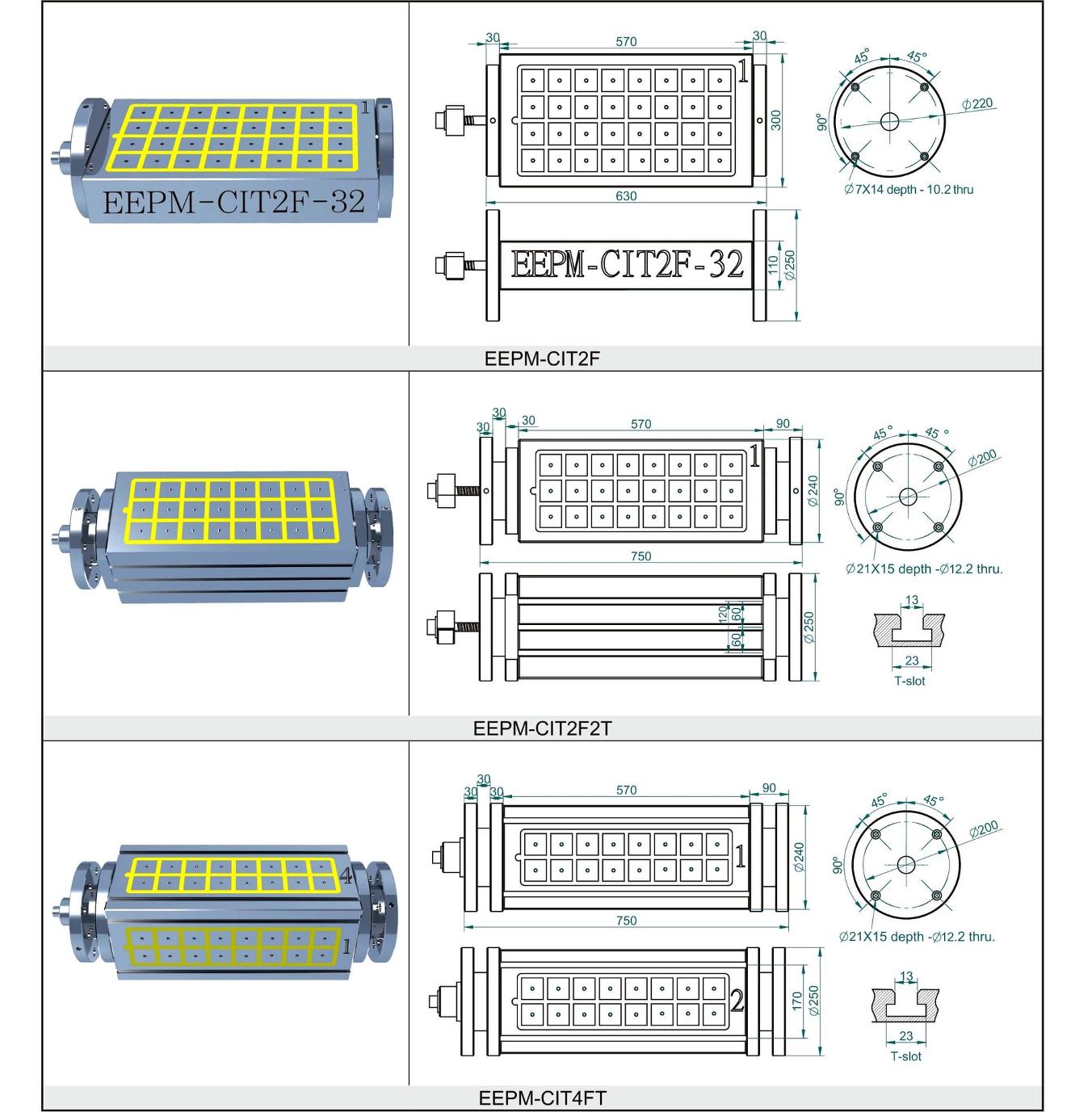

EEPM-CIT2F with 2 magnetic working face, can be clamp 2 workpiece for machining. Suitable for bigger workpiece machining.
EEPM-CIT2F2T with 2 magnetic working face and 2 T-slot working face, can be clamp both of magnetic and non-magnetic material of workpiece machining. Suitable for smaller workpiece machining.
EEPM-CIT4FT with 4 magnetic working face and T-slots available. Suitable for smaller workpiece machining.
Without any obstructed movement of cutters during machining. Can be use all the functions of CNC 4 Axic Index Device completely.

Unit:mm

MODEL NO.	DIMENSION	PITCH	POLE	NO. OF POLE	TOTAL HOLDING POWER kgf ±5%	CHUCK N.W.	VOLTAGE (Single Phase)	CURRENT AMP	CONTROLLER (included)
MODEL NO.	DIMENSION	PITCH	POLE	NO. OF POLE	TOTAL HOLDING POWER kgf ±5%	CHUCK N.W.	VOLTAGE (Single Phase)	CURRENT AMP	CONTROLLER (included)	EEPM-CIT2F	300×570	10	50×50	32×2	10000	141 kg	CHUCK DC 220V CONTROLLER AC 220V / 480V	30A	C2-2C1-G
EEPM-CIT2F2T	240×570	10	50×50	24×2	7500	228 kg	23A	C2-2C1-G
EEPM-CIT4FT	240×570	10	50×50	16×4	5000	219 kg	20A	C4-4C1-G
