Feature

• Structure of Electro-Permanent Magnetic Chuck, 1-3 seconds control fo power ON & OFF. No electric power supply required to keep the chuck ON.
• EEPM Chucks can be connected and one controller can be control muti-EEPM Chucks.
• Linear guideway or long strip workpieces can be fully clamped by EEPM Chucks for increasing grinding accuracy.
• It could be used for long time and never get temperatures to affect the accuracy of workpieces.


Specification

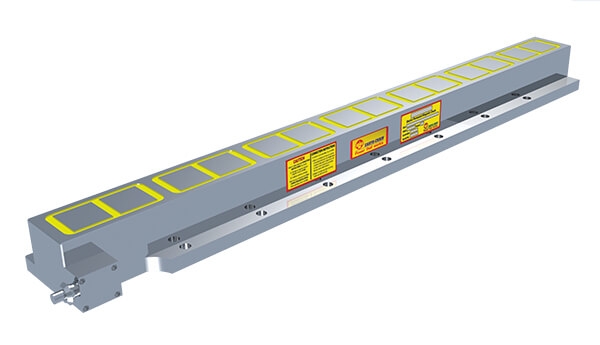

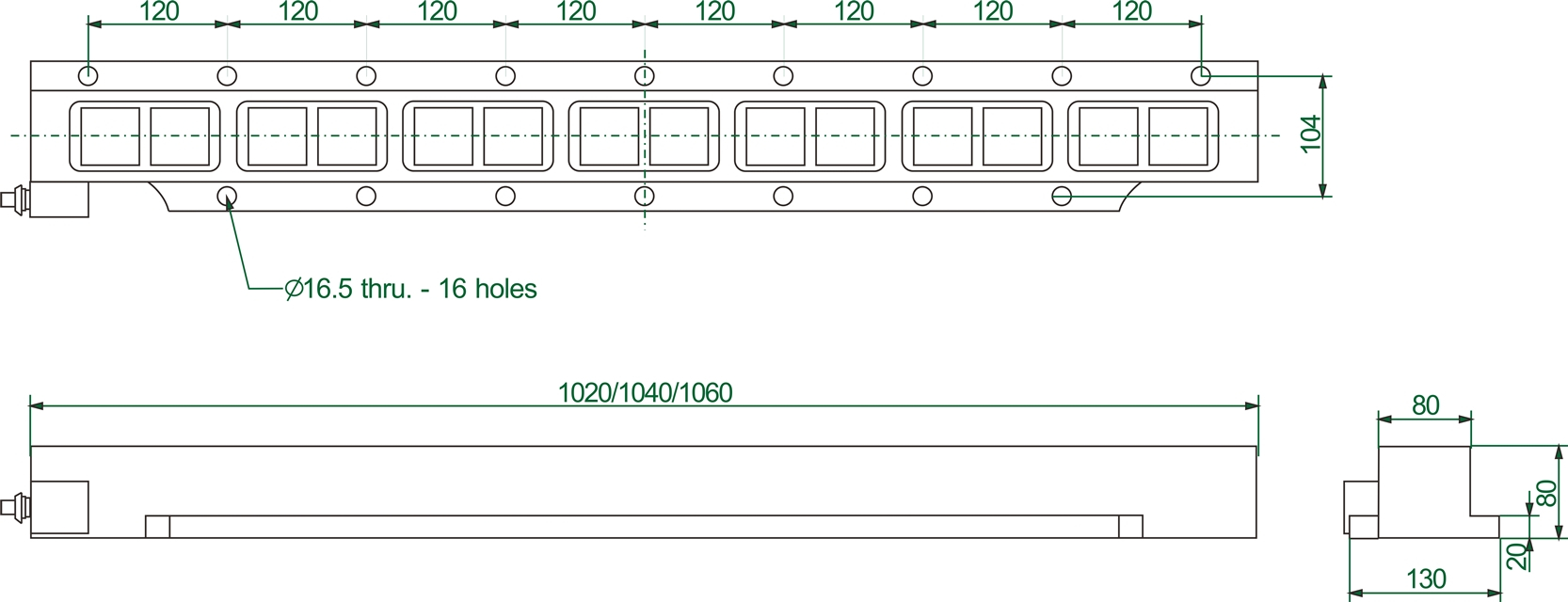

EEPM-WS Series

suitable for large sizes of precision linear guideway or long strip workpiece.

Unit:mm     Customized service-the following specifications are for reference only

MODEL NO	DIMENSION L x W x H	NO. OF POLE	TOTAL HOLDING POWER kgf ±5%	CHUCK N.W.	VOLTAGE (Single Phase)	CURRENT AMP	CONTROLLER (included)	VOLTAGE (Single Phase)	CURRENT AMP	CONTROLLER (included)
EEPM-08102WS	1020×130×80	14	3150								60 kg	CHUCK DC 220V CONTROLLER AC 220V / 480V	20A	C1-G	CHUCK DC 380V CONTROLLER AC 380V / 440V	10A	C1-B
EEPM-08104WS	1040×130×80			61 kg
EEPM-08106WS	1060×130×80			62 kg

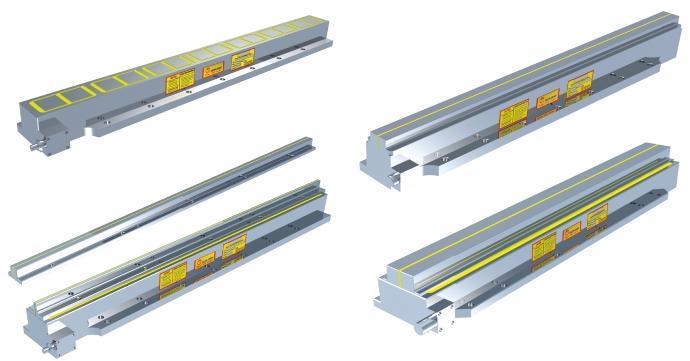

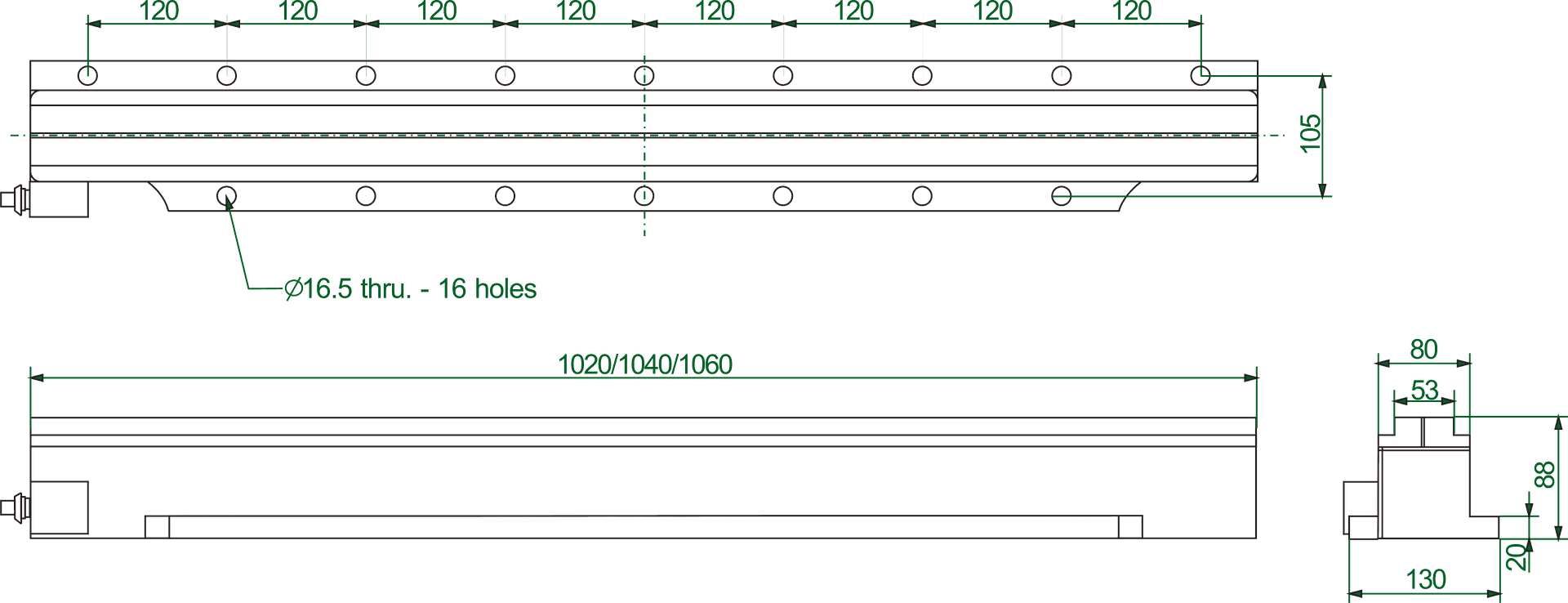

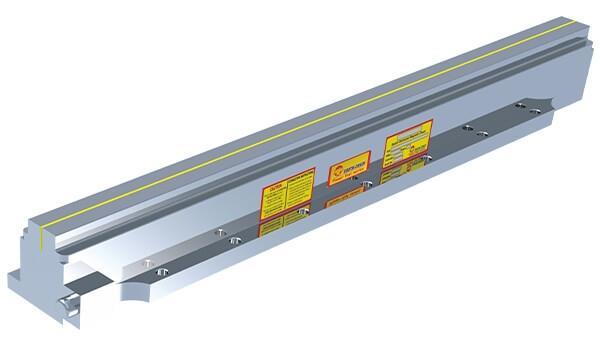

EEPML-11 Series

Suitable for small, medium and large of linear guideway high precision or long strip workpieces.

Unit:mm     Customized service-the following specifications are for reference only

MODEL NO	DIMENSION L x W x H	NO. OF POLE	TOTAL HOLDING POWER kgf ±5%	CHUCK N.W.	VOLTAGE (Single Phase)	CURRENT AMP	CONTROLLER (included)	VOLTAGE (Single Phase)	CURRENT AMP	CONTROLLER (included)
EEPM-11-08102	1020×130×88	14	2275								65 kg	CHUCK DC 220V CONTROLLER AC 220V / 480V	20A	C1-G	CHUCK DC 380V CONTROLLER AC 380V / 440V	10A	C1-B
EEPM-11-08104	1040×130×88			66 kg
EEPM-11-08106	1060×130×88			67 kg

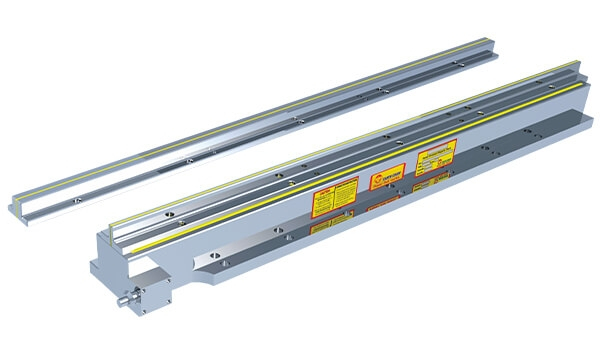

EEPML-11-1 Series

Induction block is changeable, can be suitable for small, medium and large of linear guideway high precision or long strip workpieces.

Unit:mm     Customized service-the following specifications are for reference only

MODEL NO	DIMENSION L x W x H	NO. OF POLE	TOTAL HOLDING POWER kgf ±5%	CHUCK N.W.	VOLTAGE (Single Phase)	CURRENT AMP	CONTROLLER (included)	VOLTAGE (Single Phase)	CURRENT AMP	CONTROLLER (included)
EEPM-11-08102-1	1020×130×88	14	2275								63 kg	CHUCK DC 220V CONTROLLER AC 220V / 480V	20A	C1-G	CHUCK DC 380V CONTROLLER AC 380V / 440V	10A	C1-B
EEPM-11-08104-1	1040×130×88			64 kg
EEPM-11-08106-1	1060×130×88			65 kg

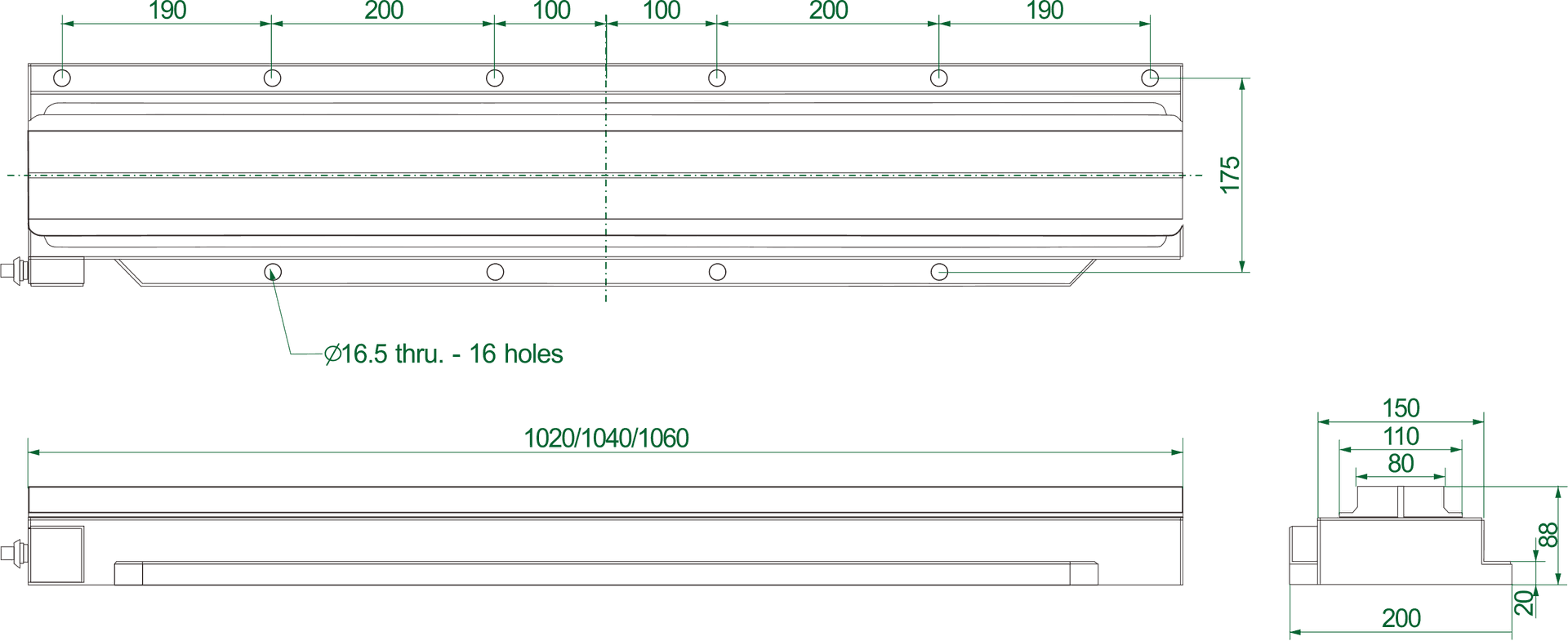

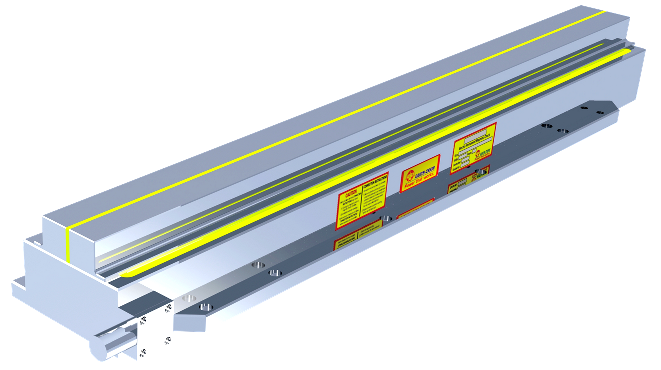

EEPML-15 Series

Induction block is changeable, can be suitable for small, medium and large of linear guideway high precision or long strip workpieces .

Unit:mm     Customized service-the following specifications are for reference only

MODEL NO	DIMENSION L x W x H	NO. OF POLE	TOTAL HOLDING POWER kgf ±5%	CHUCK N.W.	VOLTAGE (Single Phase)	CURRENT AMP	CONTROLLER (included)	VOLTAGE (Single Phase)	CURRENT AMP	CONTROLLER (included)
EEPM-15-15102-1	1020×200×88	28	4550								101 kg	CHUCK DC 220V CONTROLLER AC 220V / 480V	33A	C1-G	CHUCK DC 380V CONTROLLER AC 380V / 440V	15A	C1-B
EEPM-15-15104-1	1040×200×88			103 kg
EEPM-15-15106-1	1060×200×88			105 kg

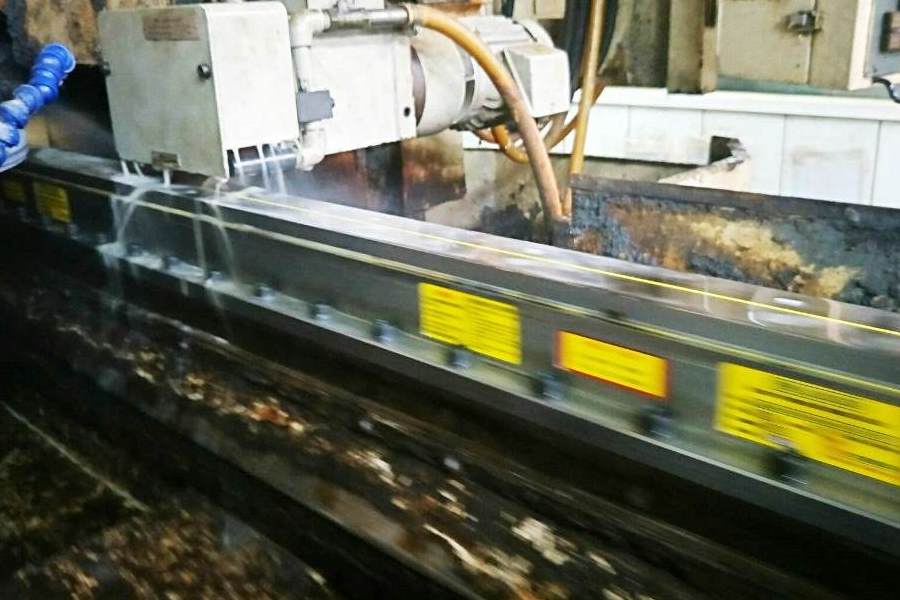

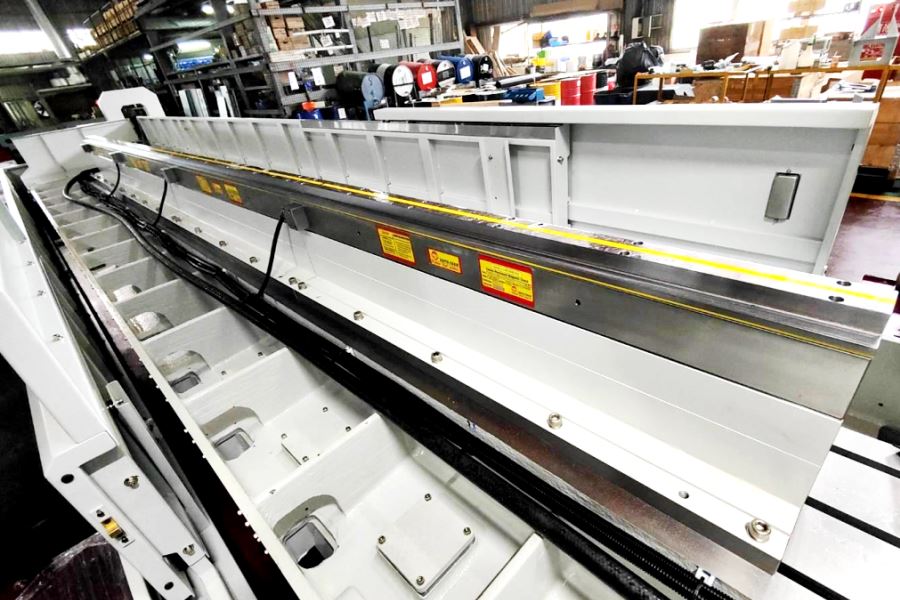

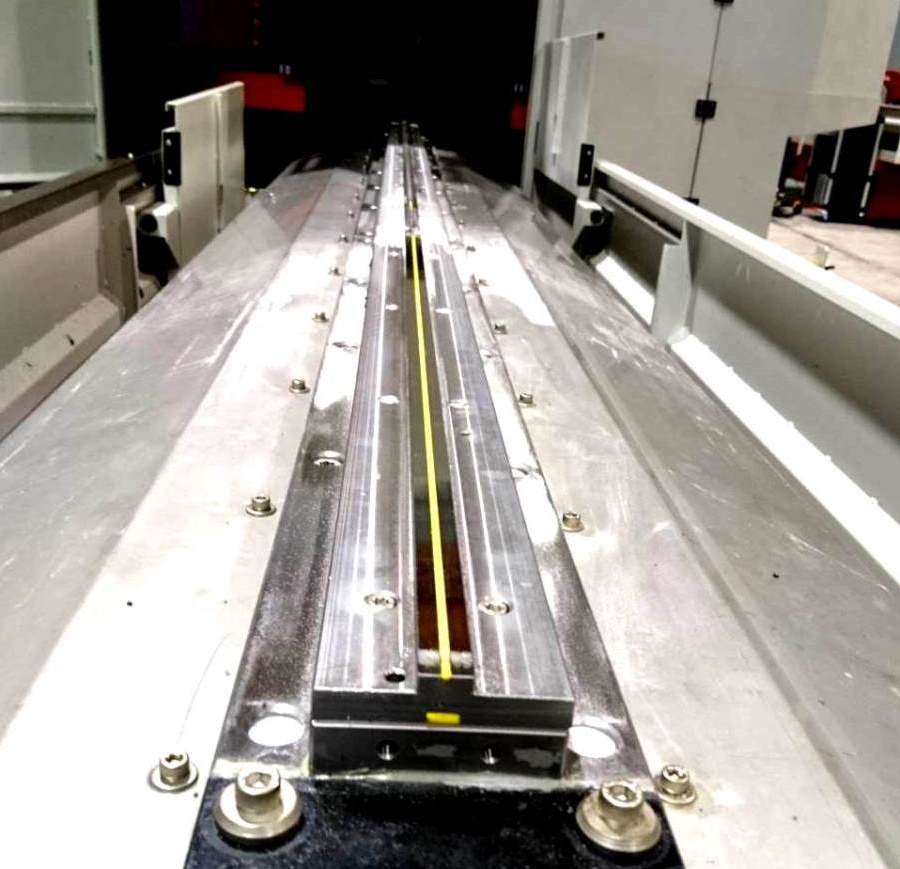

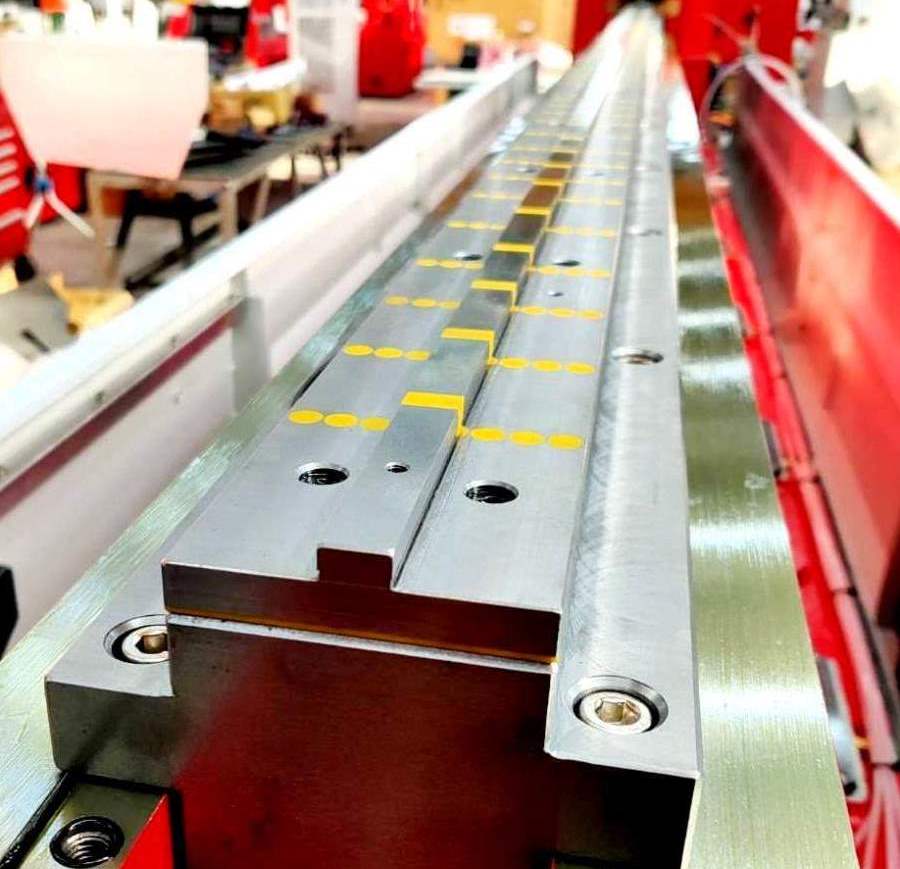

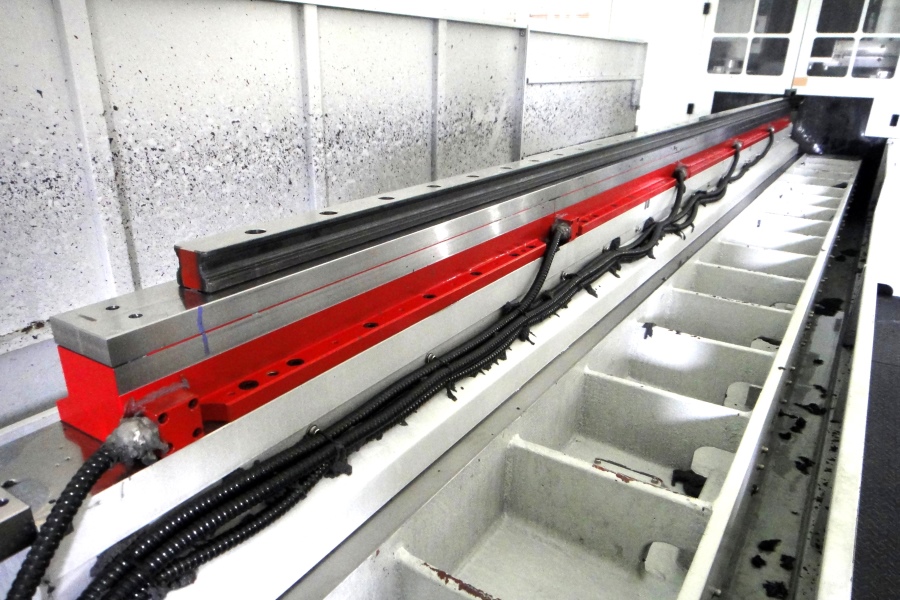

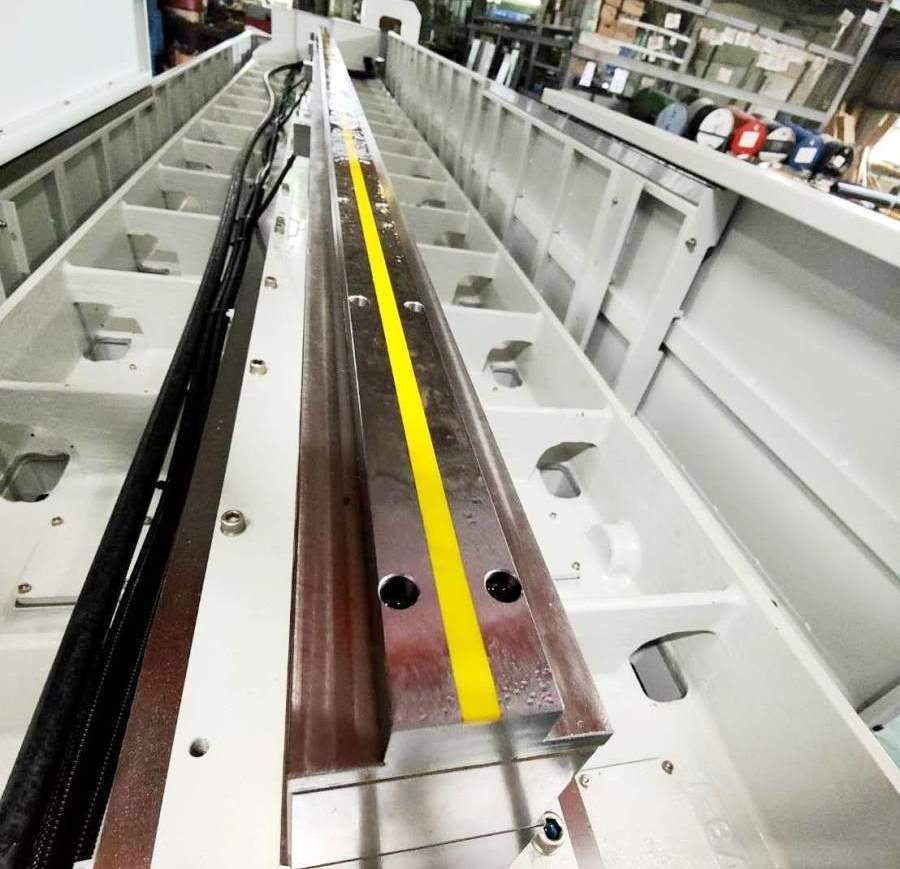

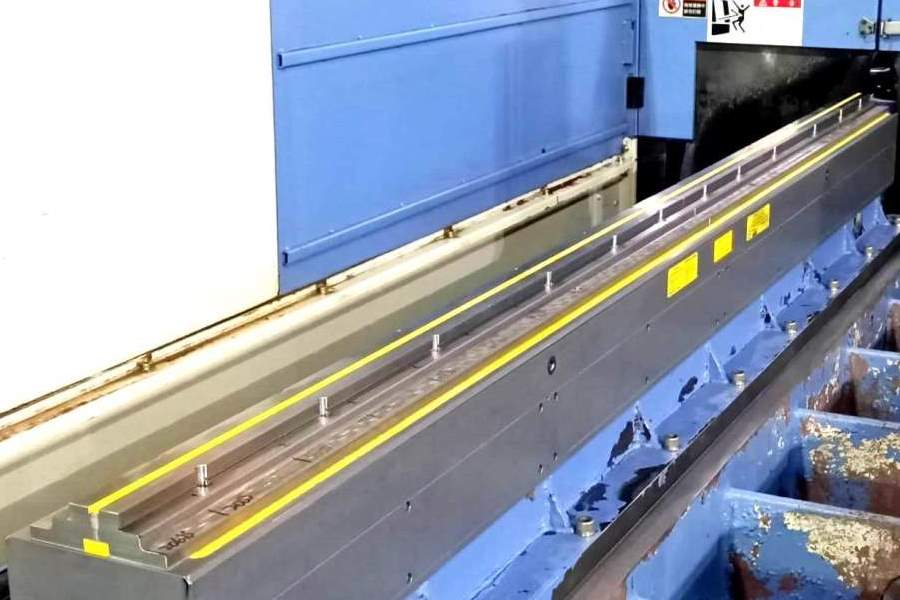

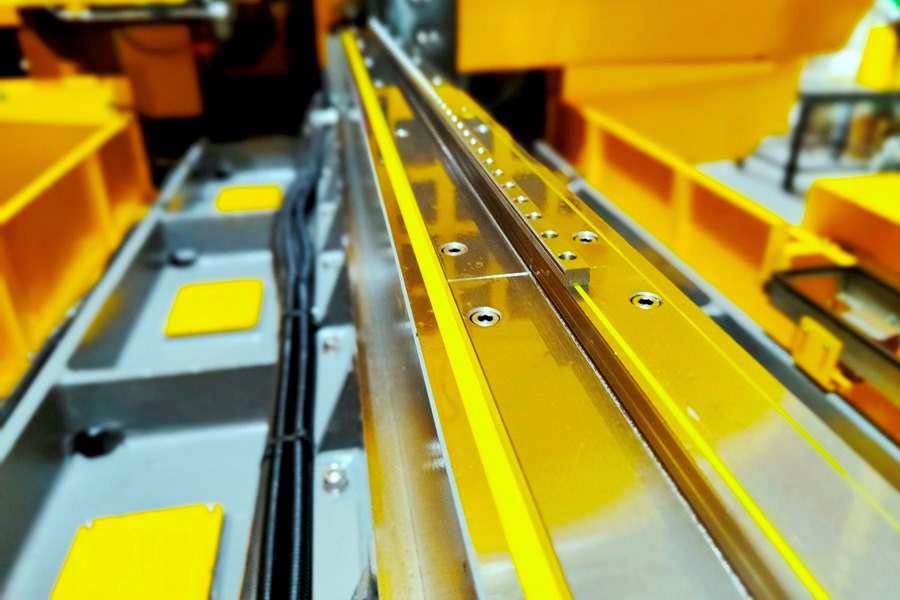

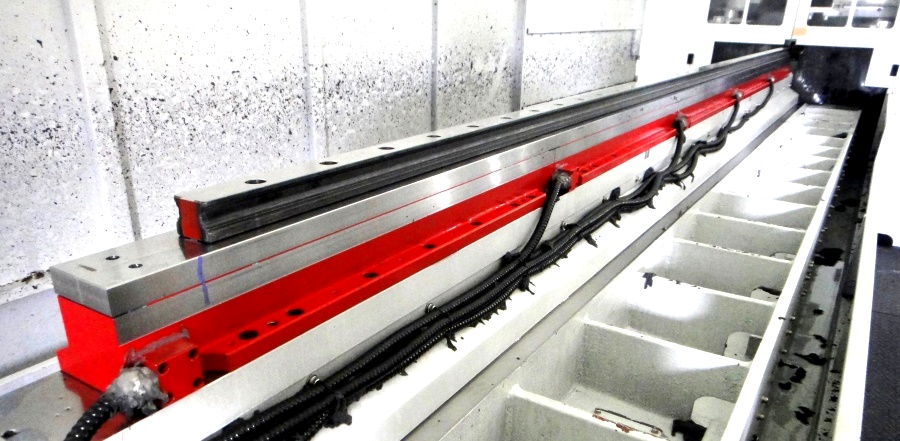

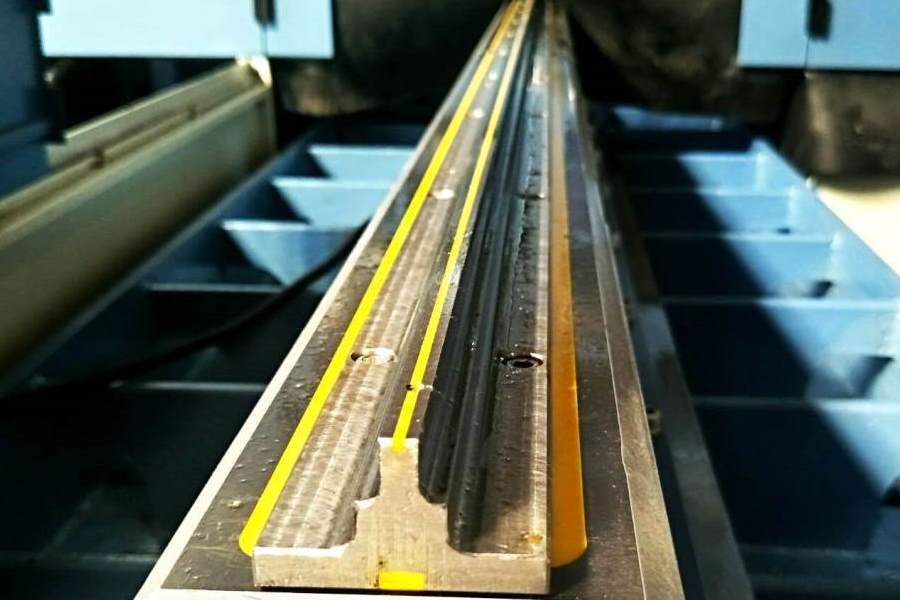

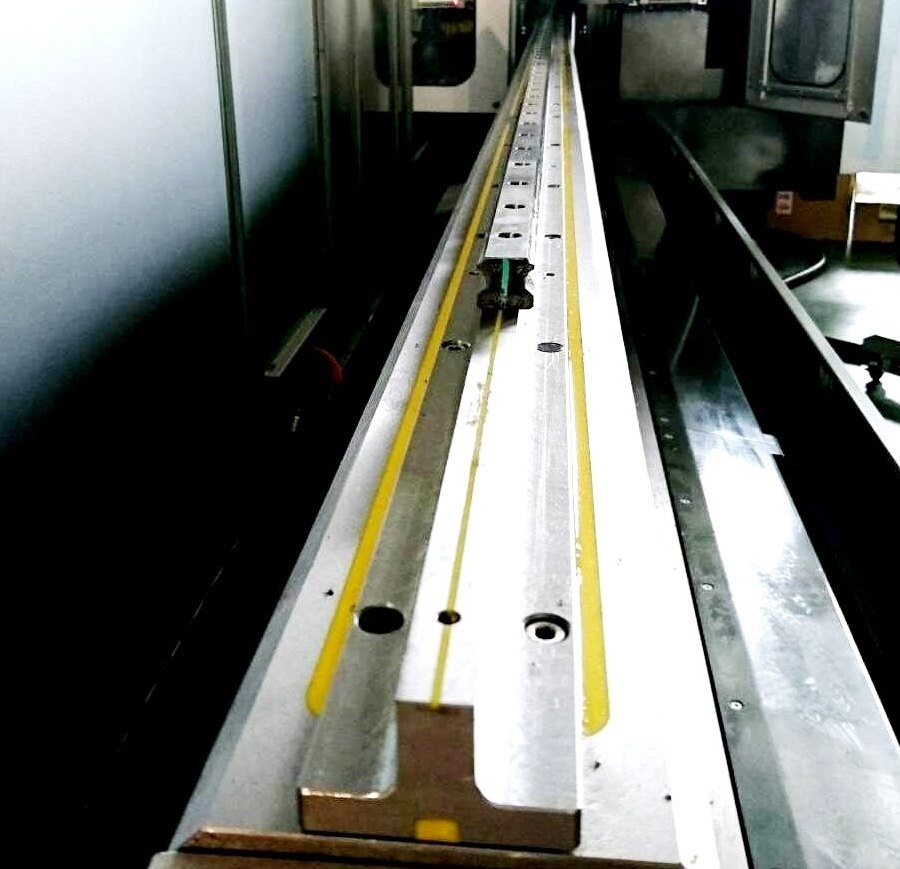

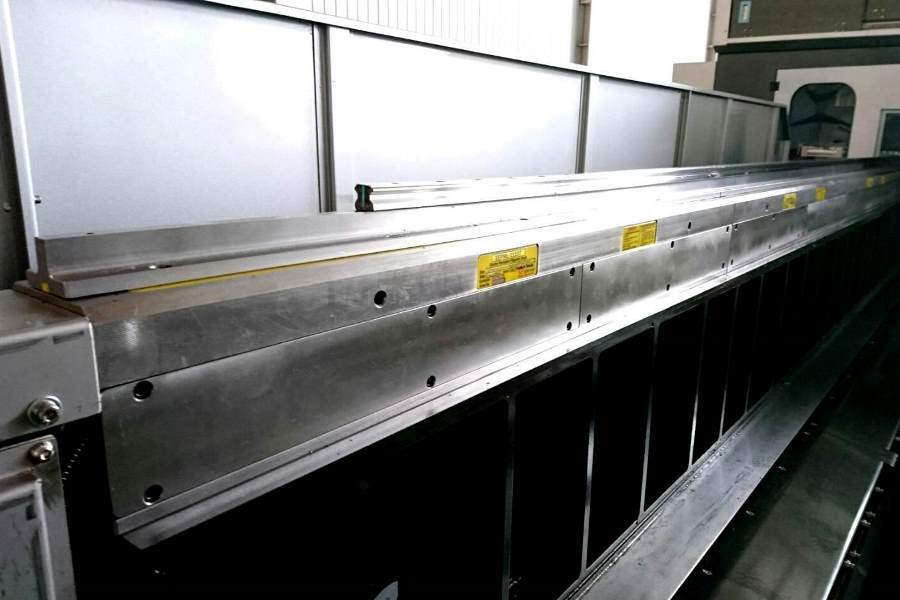

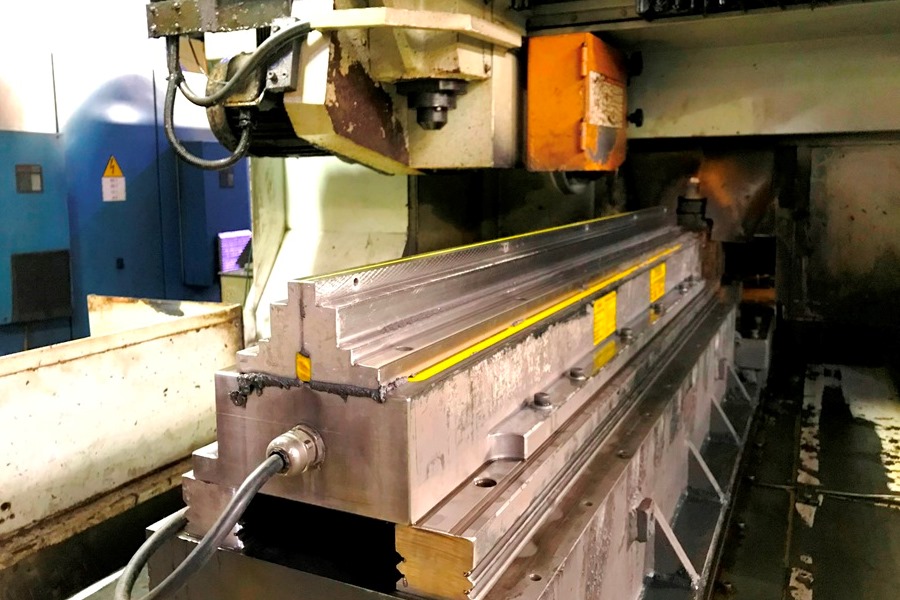

Practical Case(Picture)

 Practical Case (Video)
