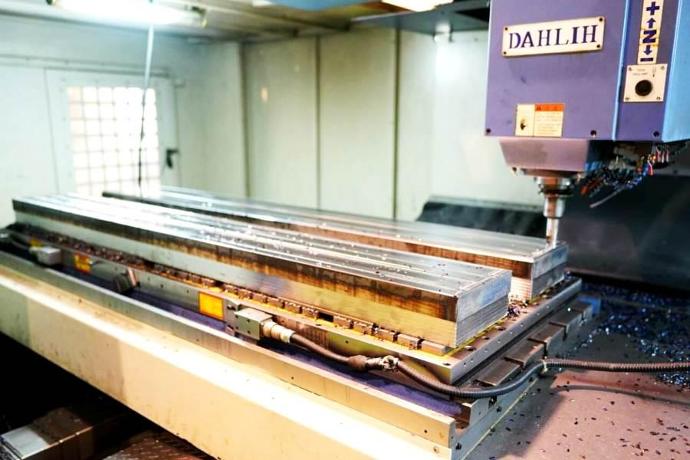

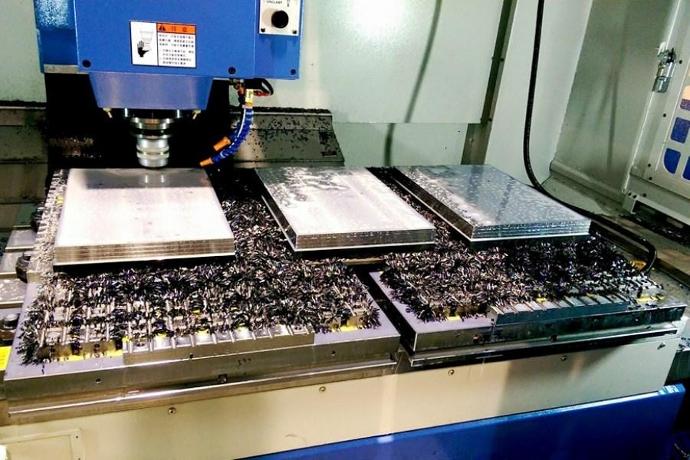

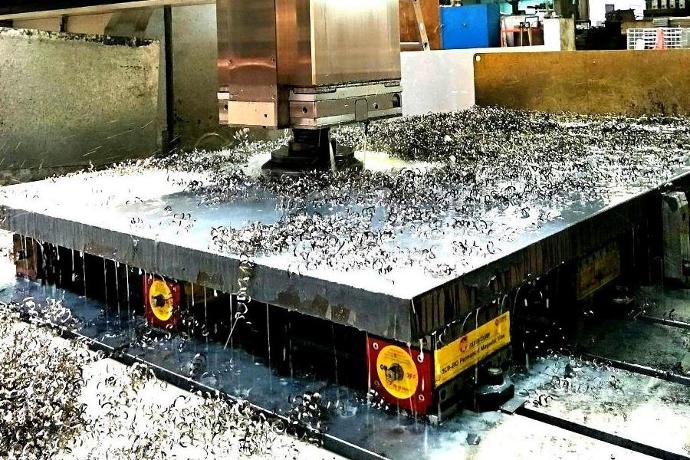

Vertical Machining Applications
Magnetic clamping in vertical machining offers fast setup, uniform holding force, and five-sided access to the workpiece. It reduces vibration, improves surface finish, and enhances safety by maintaining clamping even during power loss. Ideal for ferromagnetic materials, it boosts efficiency and precision.
Product Advantages
Fast Setup Time
Magnetic clamping allows quick workpiece loading and unloading, reducing downtime and increasing machining efficiency, especially in high-mix or short-run production environments.
Uniform Clamping Force
It provides consistent holding across the entire surface, minimizing deformation and improving machining accuracy compared to traditional point-based mechanical clamping systems.
Can do 5 sides machining
The workpiece is held from below, giving tools access to five faces in a single setup, reducing repositioning and improving productivity.
Vibration Dampening
Magnetic chucks help absorb machining vibrations, leading to better surface finishes, reduced tool wear, and more stable cutting performance during vertical milling operations.

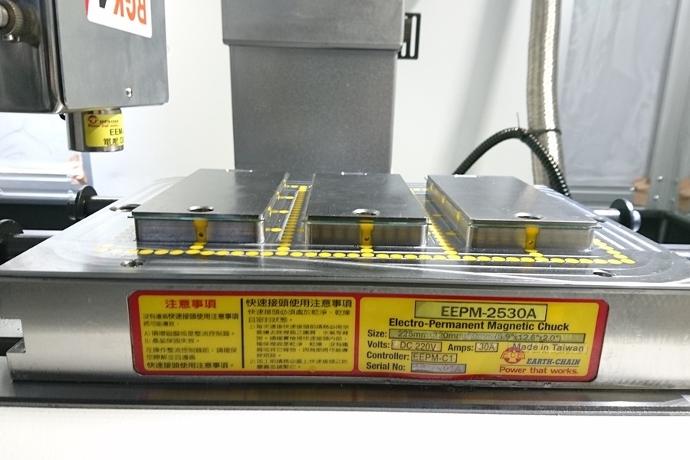

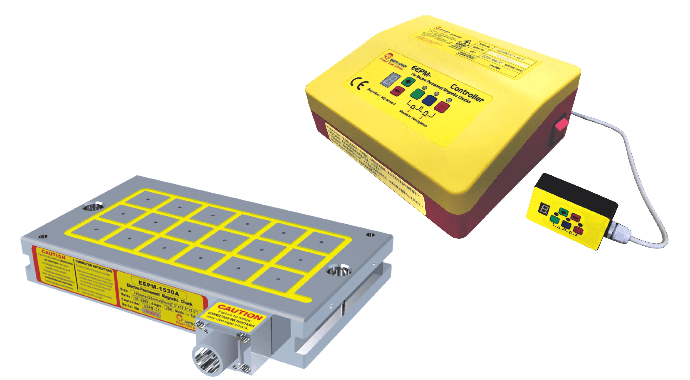

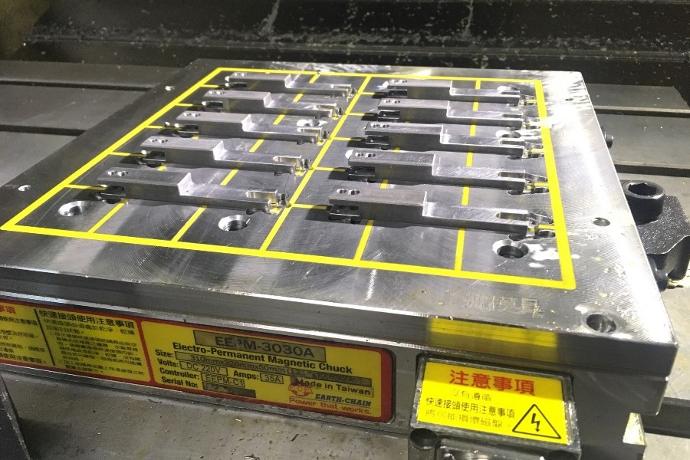

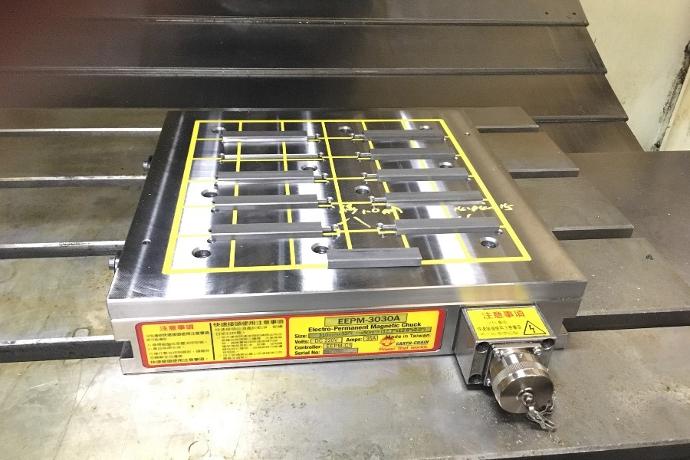

EEPM-A Series
Electro-Permanent Magnetic Chuck
Suitable for thin, small and medium workpiece on light duty machining.

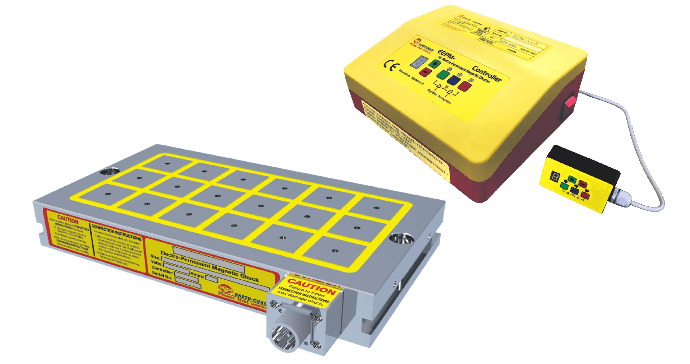

EEPM-B Series
Electro-Permanent Magnetic Chuck
Suitable for small and medium workpiece machining

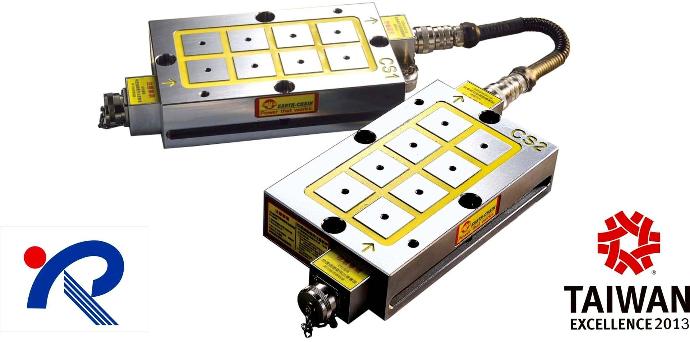

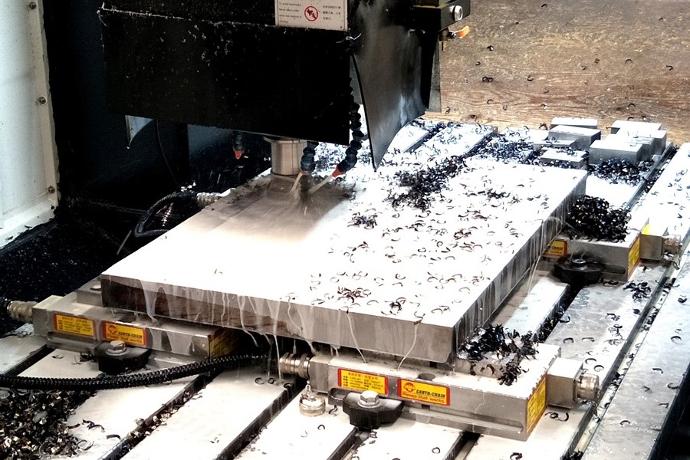

EEPM-C Series
Electro-Permanent Magnetic Chuck-Connection Type

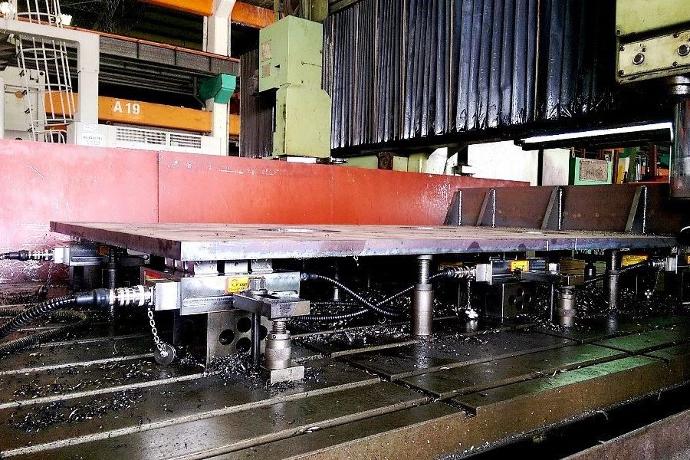

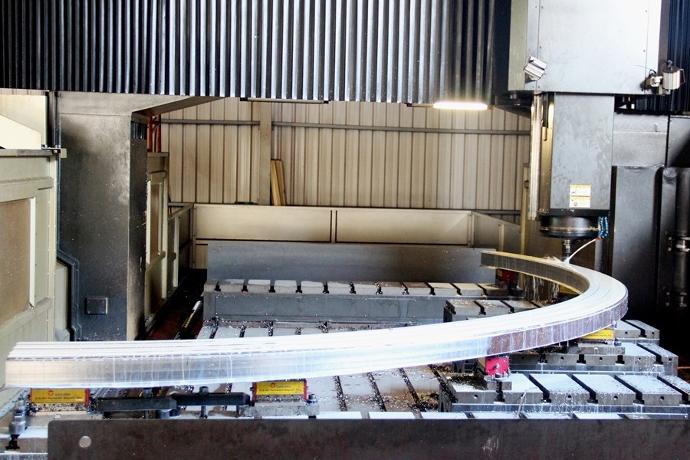

Suitable to be used with large Vertical Lathe, Double Column Machining Center and CNC Machining Center …etc.

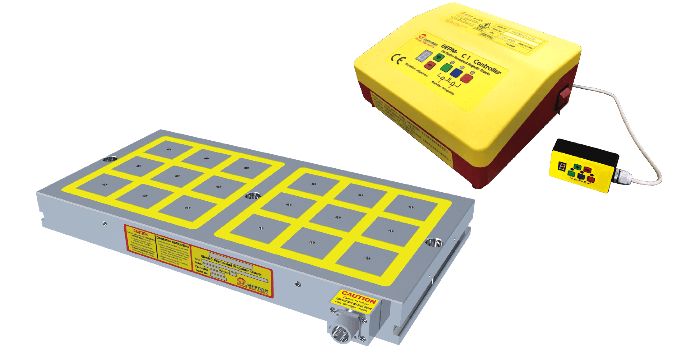

EEPM-D Series
Electro-Permanent Magnetic Chuck
Suitable for medium and large workpiece on heavy duty machining.

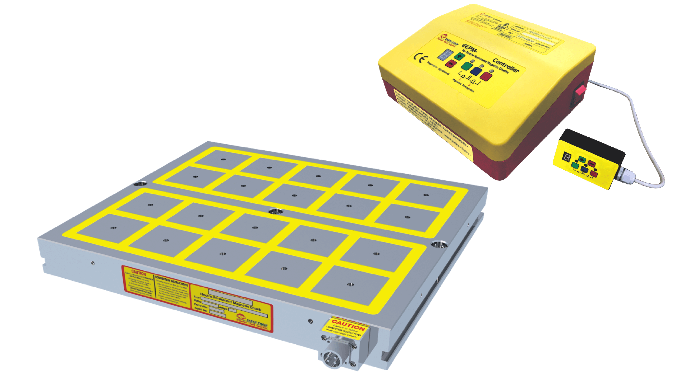

EEPM-E Series
Electro-Permanent Magnetic Chuck
Suitable for large and high-thickness workpiece .

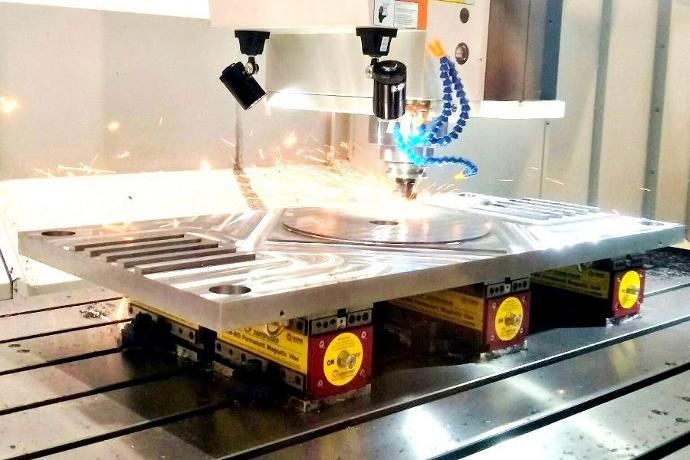

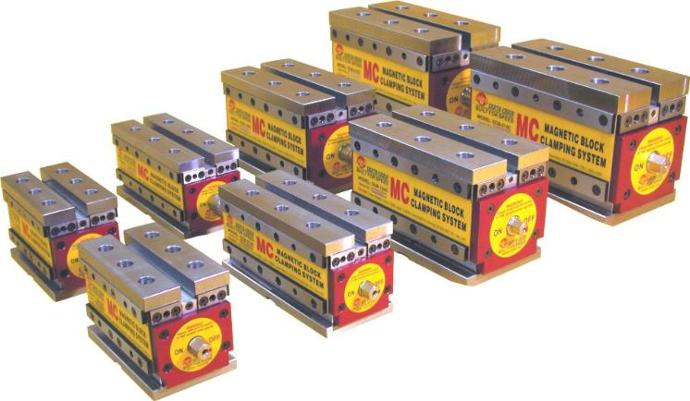

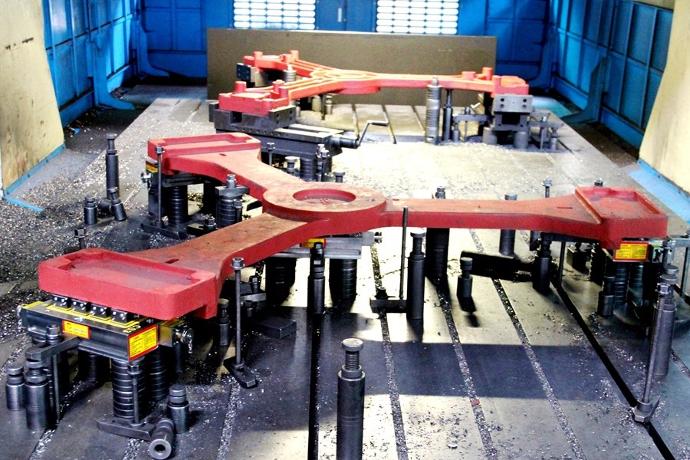

Permanent Magnetic Clamping Block ECB Series
- The all new model Magnetic Clamping Block ECB Series are a new sense of clamping way for metal working on CNC Machining Center and Milling Machine in quick clamp workpieces.
- Free to set up position, numbers and distance of Magnetic Clamping Block according to the size of workpiece.
- The ECB Series including changeable Induction Soft Block. It can be revised the surface to be 100% accuracy on the machine for clamp workpieces. Can be also cutting, drilling, tapping and slotting directly to the Induction Soft Block during machining workpiece. Multi-function of Induction Soft Block, the user can make it by themselves according to workpiece required.
-
Two machining circle for finish workpiece machining, increase a lot of machining efficiency and achieve accuracy required.
ECB Series
Permanent Magnetic Clamping Block
Suitable for
medium & small workpiece.
(Can do 5 sides machining)
