In precision **Linear
Guideway grinding**, the straightness, parallelism, surface roughness, and
dimensional stability of the workpiece directly determine the final product’s
accuracy grade and service life. Therefore, a clamping method is not merely a tool
for “fixing the workpiece,” but a critical factor that significantly influences
grinding quality. **Electro-permanent magnetic chucks**, combining the
stability of permanent magnetic force with the convenience of electrical
control, have become a highly advantageous clamping solution in precision
linear guideway grinding. The following outlines their key benefits from
multiple perspectives.
1. Uniform magnetic
clamping to prevent workpiece deformation

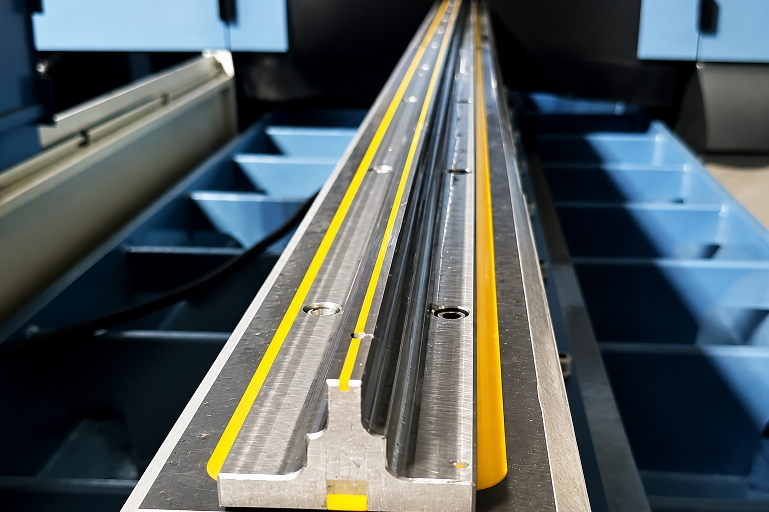

Precision linear guideways
are typically long and slender components, often measuring several hundred to
over a thousand millimeters in length, with extremely strict requirements for
straightness and parallelism. Traditional mechanical clamps or bolt-down
fixtures tend to generate localized stress concentrations, causing
micro-deformation during clamping. Once unclamped after grinding, elastic
recovery may occur, leading to dimensional inaccuracies.

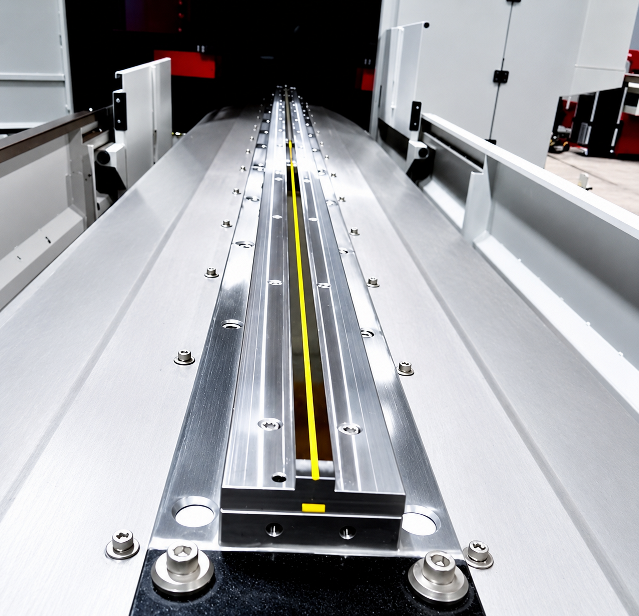

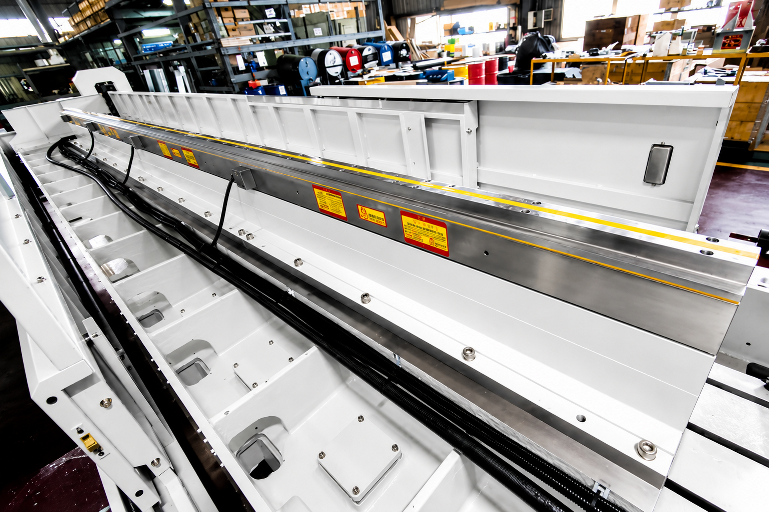

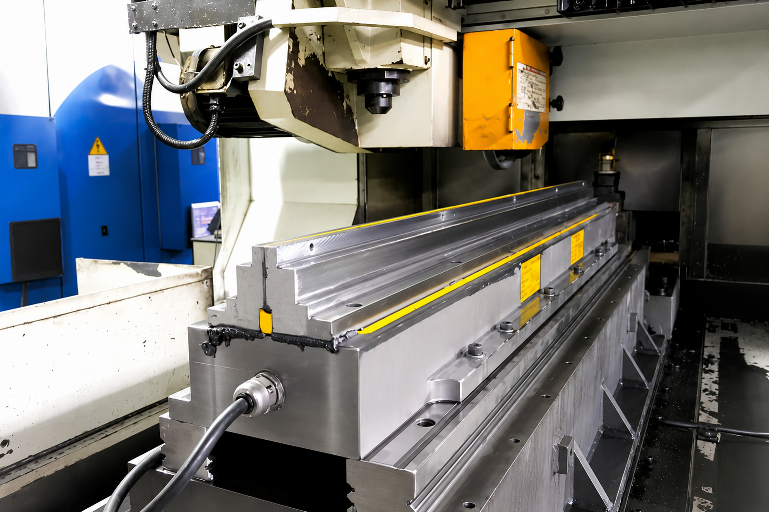

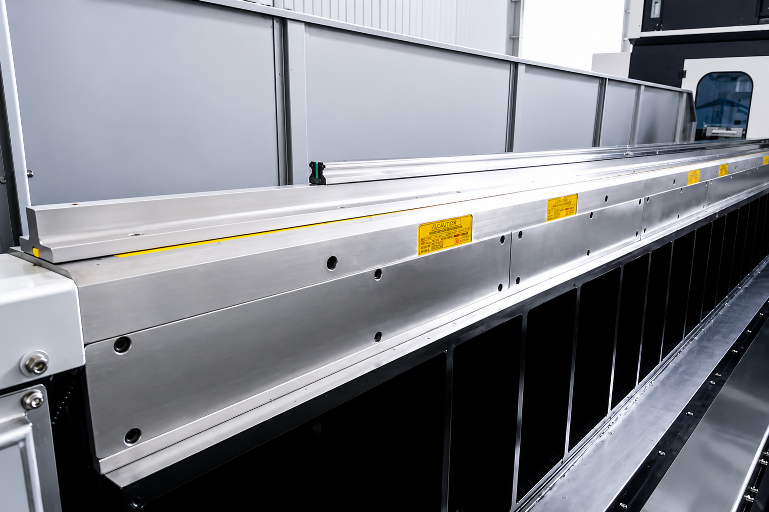

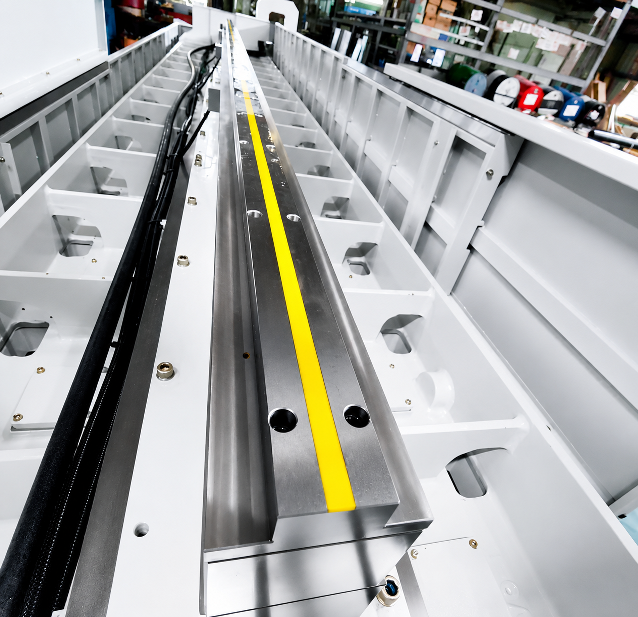

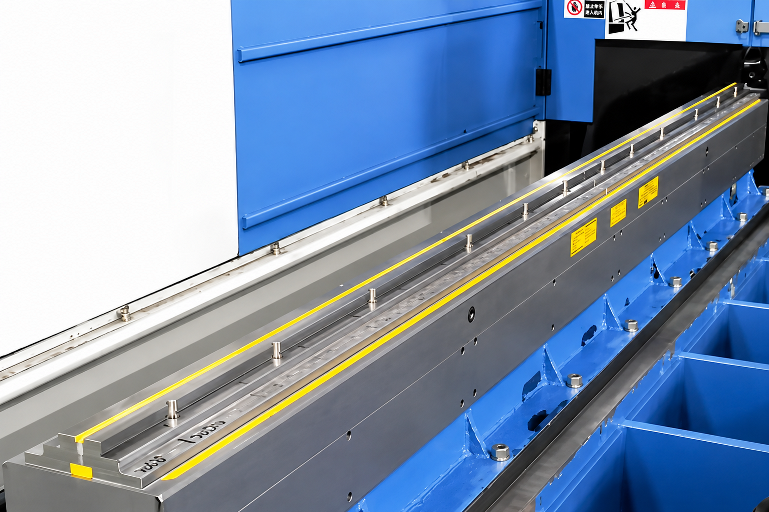

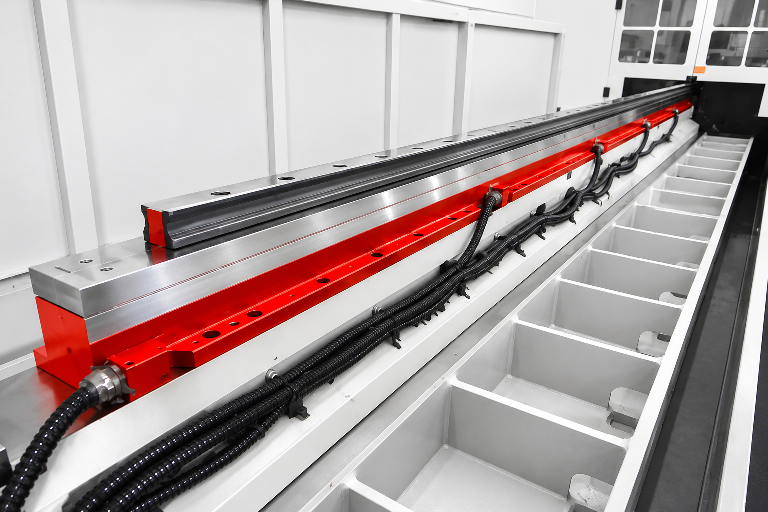

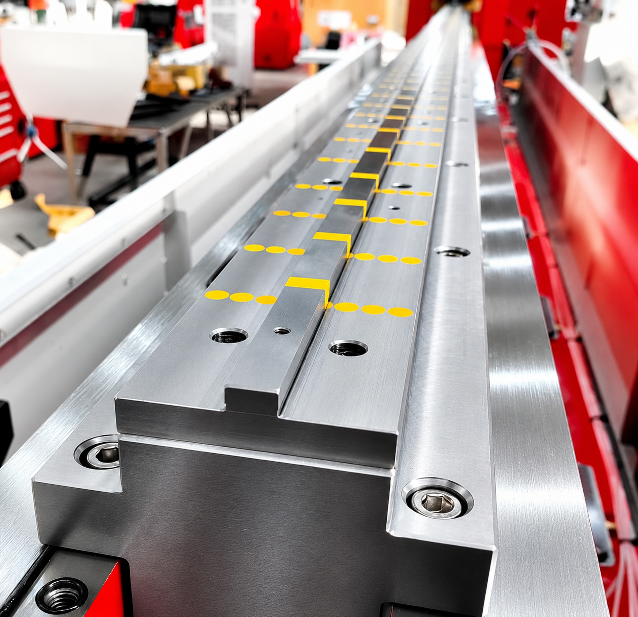

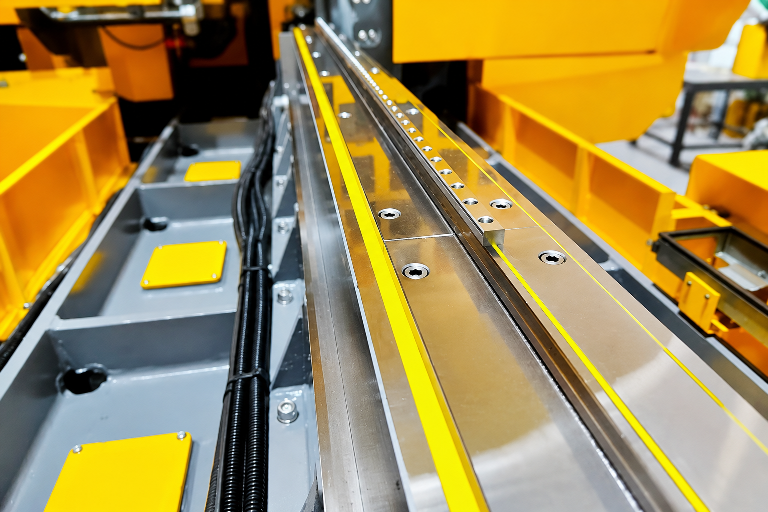

Electro-permanent magnetic
chucks use evenly distributed magnetic force across the entire contact surface,
providing uniform clamping without significant stress concentration. This
greatly reduces the risk of bending or warping during grinding and helps
maintain micron-level straightness and flatness.
2. Improved grinding
accuracy and surface quality

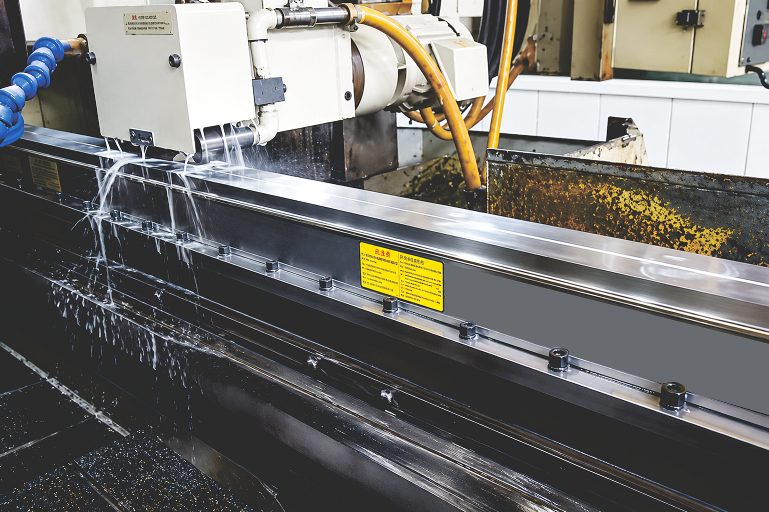

Linear guideway grinding
is a high-precision process that is extremely sensitive to vibration. After
activation, electro-permanent magnetic chucks do not require continuous power
supply, ensuring stable magnetic force without electromagnetic interference. As
a result, fluctuations in electrical current do not affect machining stability.
This rigid, vibration-free
clamping condition allows the grinding wheel to cut more smoothly, effectively
improving surface finish while reducing waviness and grinding marks—an
especially critical advantage for manufacturers seeking high smoothness and
superior running performance of linear guideways.
3. Fast clamping to
significantly enhance productivity
Linear guideway grinding
is often performed in batch or mass production. If loading and unloading take
too long, overall production efficiency is directly affected. Electro-permanent
magnetic chucks enable clamping and demagnetization with a simple electrical
switch, eliminating time-consuming operations such as tightening bolts or
adjusting clamps. This dramatically reduces changeover time between workpieces.
For production involving
the same or multiple guideway specifications, magnetic chucks allow fast and
repeatable positioning, increasing machine utilization and making them ideal
for automated or semi-automated grinding lines.
4. Full surface
accessibility, minimizing secondary clamping
Traditional mechanical
fixtures often obstruct the machining area, requiring multiple re-clamping or
workpiece flipping, which increases setup time and the risk of accumulated

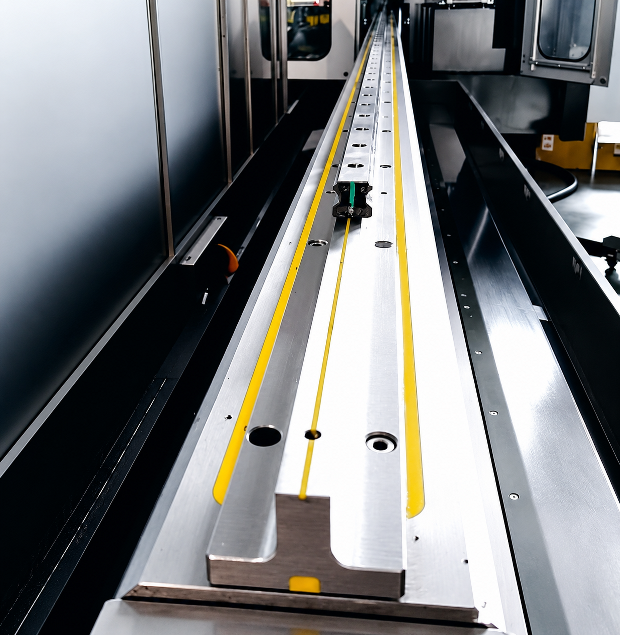

errors. Electro-permanent magnetic chucks provide unobstructed clamping,
leaving the entire top surface accessible. Long-stroke grinding can be
completed in a single setup, effectively minimizing precision loss caused by
repeated clamping and ensuring overall consistency of the linear guideway.
5. High safety and
power-off protection
Once activated,
electro-permanent magnetic chucks maintain their magnetic holding force even in
the event of a power failure, preventing workpiece loosening or slippage. This
is particularly critical when machining high-value linear guideways and using precision
grinding wheels. Compared with conventional electromagnetic chucks that lose
magnetism during power outages, electro-permanent magnetic designs offer a
clear safety advantage, significantly reducing the risk of machine damage and
workplace accidents.
6. Reduced fixture costs
and long-term maintenance expenses
With the wide variety of
linear guideway sizes and designs, using dedicated fixtures often requires
customized solutions for each specification, resulting in high costs and
limited flexibility. Electro-permanent magnetic chucks can accommodate
guideways of different lengths and widths, requiring only simple spacers or
locating elements. This greatly reduces the need for specialized fixtures.
In addition, the chuck’s
robust structure and absence of complex mechanical wear components result in
low maintenance requirements, effectively lowering total cost of ownership over
long-term operation.
7. Alignment with advanced
precision manufacturing and automation trends
As the linear guideway
market increasingly demands higher precision, consistency, and shorter lead
times, grinding operations are moving toward automation and smart
manufacturing. Electro-permanent magnetic chucks are easily integrated with CNC
grinding machines, automatic loading and unloading systems, and intelligent
control or sensing solutions, making them a fundamental component of advanced
linear guideway production lines.
Conclusion
In precision linear
guideway grinding, electro-permanent magnetic chucks offer a comprehensive
combination of **high accuracy, minimal deformation, high efficiency, and
superior safety**. Their uniform magnetic clamping effectively prevents
stress-induced deformation, while stable grinding conditions support
micron-level precision. At the same time, they significantly improve changeover
efficiency and reduce fixture and maintenance costs.
For manufacturers striving
for stable quality, higher productivity, and long-term competitiveness,
electro-permanent magnetic chucks are undoubtedly a high-value clamping
solution that aligns with future manufacturing trends.
If you are seeking a magnetic clamping solution
that truly meets your production requirements, please feel free to contact us.
We will be pleased to provide you with professional and comprehensive technical
recommendations.
