In large gantry milling applications, workpieces are often massive in size, heavy in weight, and complex in geometry. How to achieve fast, stable clamping while ensuring machining accuracy and operational safety has long been a core concern for on-site engineers and production managers. Compared with traditional clamping methods such as strap clamps, anchor bolts, or large dedicated fixtures, **magnetic chuck clamping systems** demonstrate exceptional flexibility and practicality on large gantry milling machines. In particular, the ability to **freely combine the number, position, and spacing of magnetic chucks according to workpiece size** has become an irreplaceable key advantage.

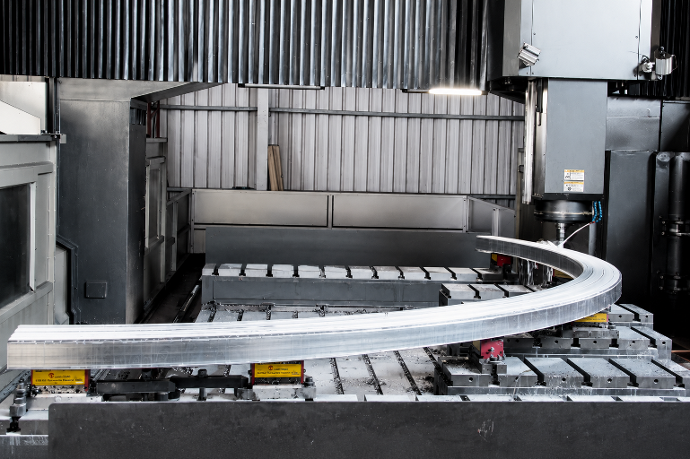

First, when dealing with large workpieces of varying sizes and shapes, magnetic chucks can be arranged in a **modular configuration**. The tables of gantry milling machines are typically expansive, allowing multiple magnetic chucks to be placed side by side or in segmented layouts. Users can freely determine the number and arrangement of chucks based on the length, width, and support requirements of the workpiece. For extra-long or large flat workpieces, multiple chucks can be aligned along the machining direction to form a continuous magnetic clamping surface. For irregularly shaped parts or localized machining requirements, chucks can be positioned only at critical load-bearing and machining areas, avoiding unnecessary interference. This flexible combination significantly enhances the machine’s adaptability to different products, making it especially suitable for high-mix, low-volume or mixed production environments.

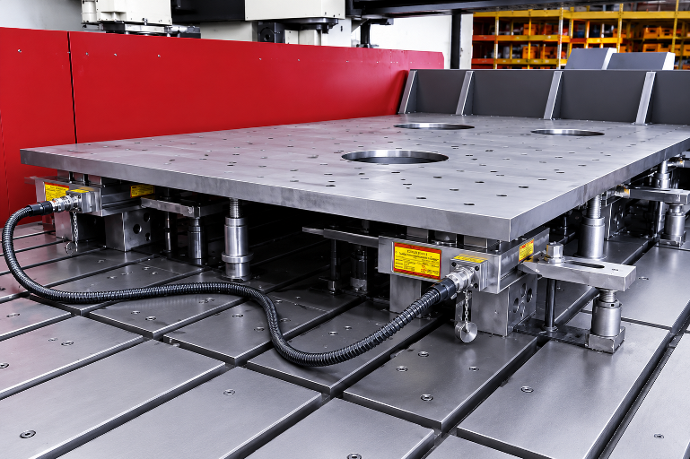

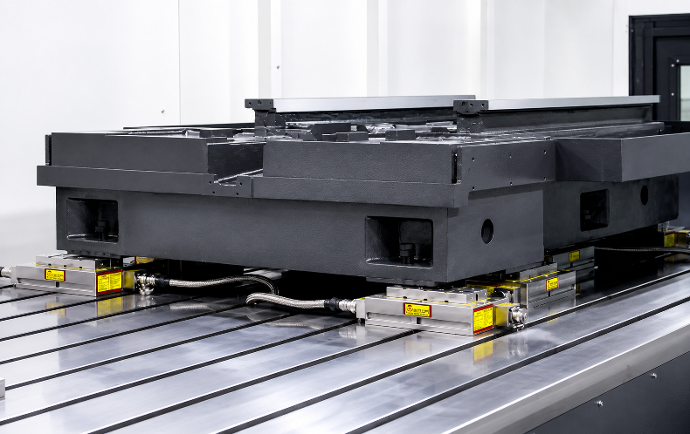

Second, the **freedom to adjust chuck positions and spacing** allows the clamping setup to closely match the structural characteristics and machining requirements of the workpiece. Large workpieces often feature uneven thickness, rib structures, or partially unsupported areas. With fixed mechanical fixtures, these conditions can easily lead to uneven clamping forces and deformation risks. Magnetic chucks, however, can be positioned according to actual load-bearing areas, with spacing optimized to concentrate holding force where support is most critical while avoiding excessive force at a single point. This “workpiece-oriented clamping design” effectively reduces warping, vibration, and dimensional deviation during machining, ensuring that large gantry mills maintain stable accuracy even under prolonged heavy cutting.

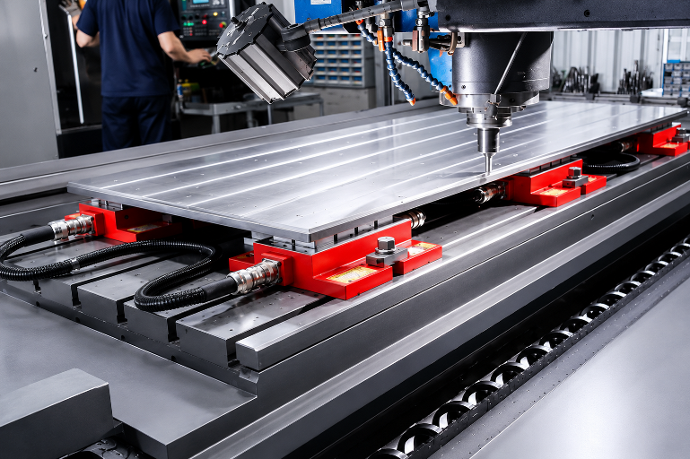

Furthermore, **multi-chuck combined clamping** significantly improves overall machining efficiency. Compared with strap clamps or bolts that require repeated tightening and loosening, magnetic chucks can be engaged or disengaged in a very short time. When workpiece dimensions change, operators simply reposition chucks or adjust their quantity—without the need to design or manufacture new dedicated fixtures. In large workpiece machining, setup and re-alignment often consume substantial time. The flexible modular nature of magnetic chuck systems dramatically shortens setup time and increases actual machine utilization. For high-value gantry milling equipment, the resulting productivity gains are particularly significant.

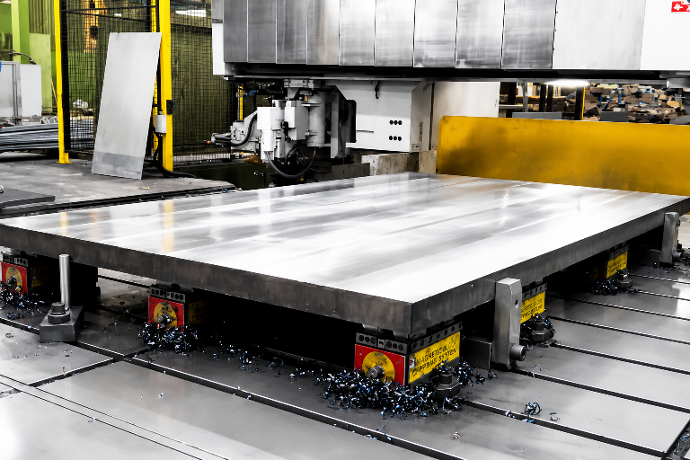

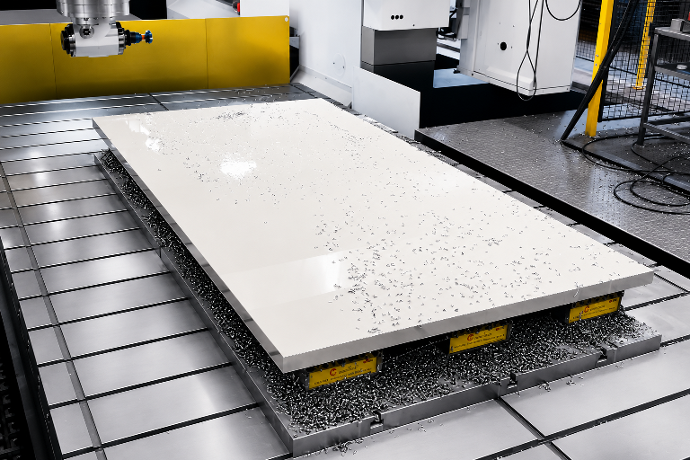

In terms of machining stability, the combined use of multiple magnetic chucks creates a **uniformly distributed clamping force**. This is especially critical for large workpieces, where self-weight alone can cause sagging or internal stress concentration. By properly configuring the number and spacing of chucks, magnetic force can be evenly distributed across the underside of the workpiece, minimizing localized overloading. This balanced clamping approach improves flatness and machining consistency. For gantry milling operations involving large-area milling or multiple cutting passes, it also helps suppress vibration, extend tool life, and enhance surface finish quality.



In addition, the free combinability of magnetic chucks delivers **higher operational safety and greater management flexibility**. In large-part machining environments, any loss of clamping can have serious consequences. Multi-chuck configurations provide redundant holding capability—if load conditions change in one area, the remaining chucks continue to maintain overall stability. From a production management perspective, magnetic chucks can be flexibly allocated according to actual line requirements, eliminating the need to build and store large, dedicated fixtures for every workpiece type. This significantly reduces fixture manufacturing, storage, and management costs.



In summary, the greatest value of magnetic chuck systems on large gantry milling machines lies in their **highly flexible ability to freely combine the number, position, and spacing of chucks according to workpiece size**. This capability not only addresses the challenges of clamping large workpieces—such as difficulty, high fixture costs, and insufficient stability—but also substantially improves equipment utilization and production flexibility while maintaining accuracy and safety. For modern manufacturing facilities pursuing high efficiency, high stability, and versatile machining capabilities, magnetic chuck clamping has become an indispensable solution for large gantry milling applications.
