In the field of modern precision machining, as workpiece structures become increasingly complex and the demands for machining accuracy continue to rise, the requirements for clamping solutions are also becoming more diverse and standardized. Traditional mechanical fixtures, hydraulic clamping systems, or bolt-down methods, while providing basic fixation, often face challenges when handling large, precision, or multi-surface workpieces, such as localized clamping stress, low setup efficiency, and difficulty in maintaining consistent machining accuracy. To address these challenges, **electro-permanent magnetic chucks (EEPM)**, with their unique magnetic structure and operational convenience, have become an ideal workpiece clamping solution for vertical lathes, CNC five-axis machining centers, and rotary surface grinding machines.

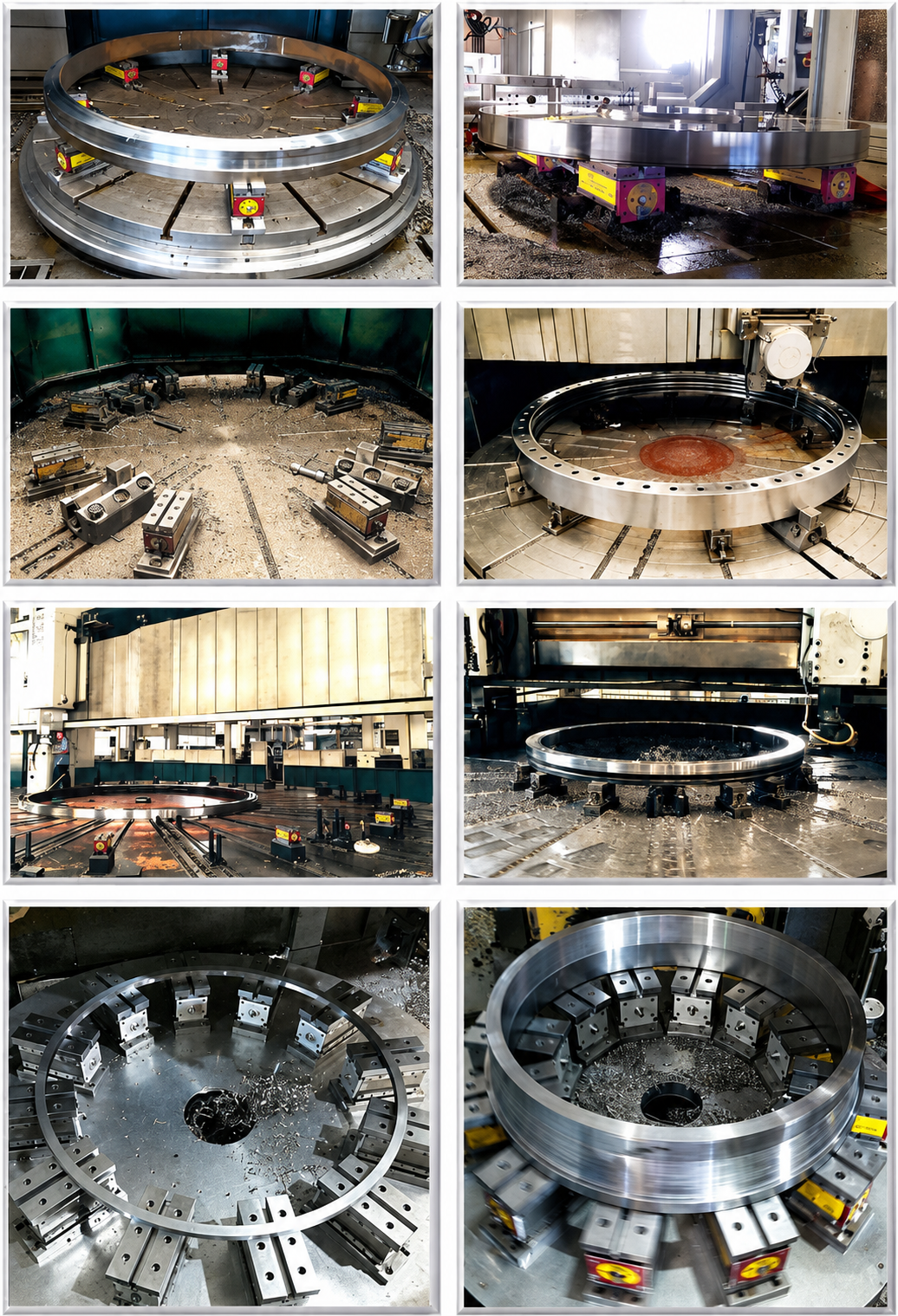

Firstly, in **vertical lathe** applications, EEPM chucks offer significant advantages in rapid workpiece setup. Vertical lathes are commonly used for turning the outer diameters of large cylindrical or disk-shaped workpieces and for precision cutting, where workpiece stability and rotational accuracy are critical. Traditional fixtures often require multiple adjustments of the chuck and supports, leading to long setup times and localized stress points that can deform the workpiece. EEPM chucks utilize permanent magnets as the core source of holding force, combined with electric on/off control, enabling instant magnetization and demagnetization. Once the workpiece is held, the magnetic force remains stable even in the event of a power outage, ensuring no slipping or vibration during machining. In addition, the chuck surface can directly contact the lathe table, eliminating the need for cumbersome mechanical fixture installation and adjustment, significantly shortening production cycles, especially for small- to medium-batch, diversified production.

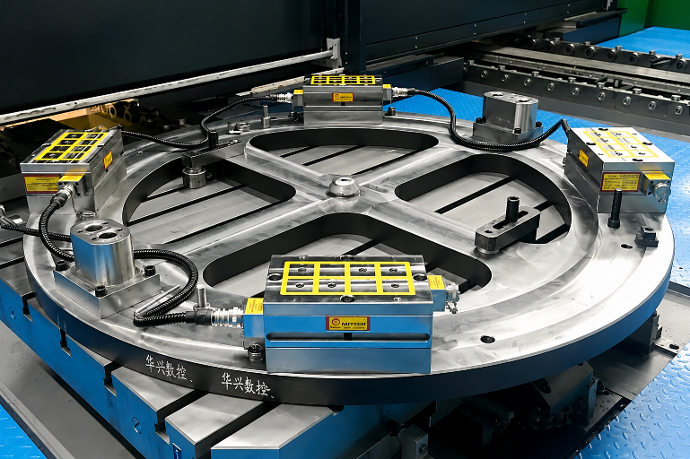

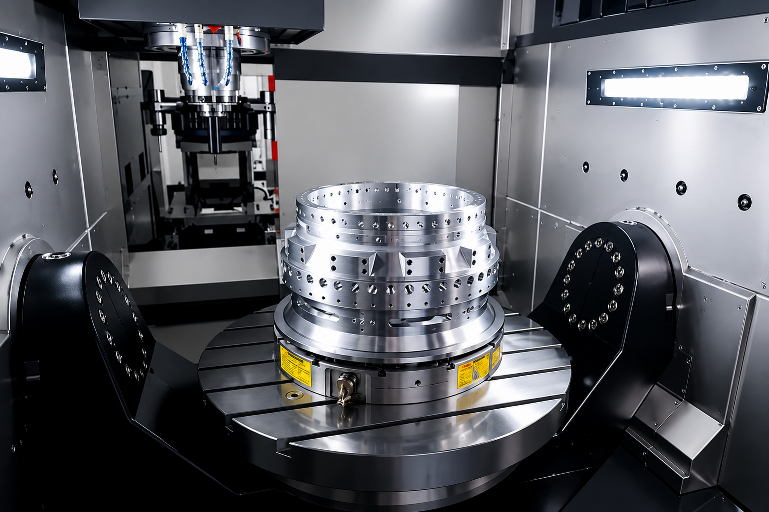

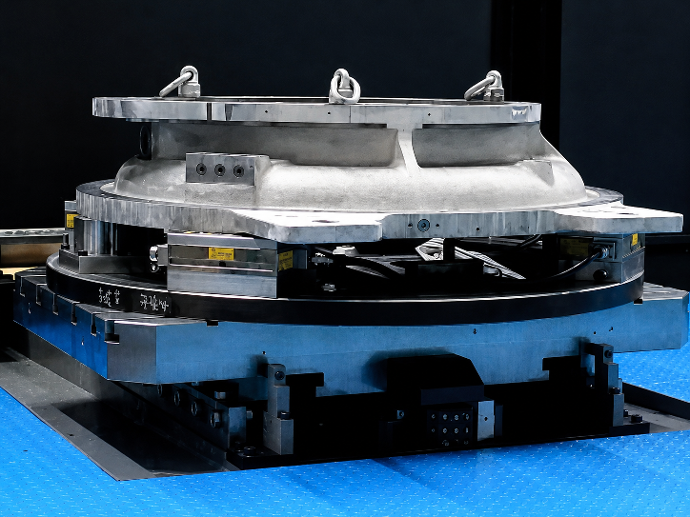

In **CNC five-axis machining centers**, the benefits of EEPM chucks are even more pronounced due to their flexibility and multi-surface clamping capabilities. Five-axis machines allow for multi-sided machining of complex geometries, but traditional mechanical fixtures may interfere with tool paths, and re-positioning the workpiece can compromise accuracy. EEPM chucks can be designed with custom pole arrangements tailored to the workpiece structure, enabling multiple surfaces to be machined in a single setup, greatly improving machining efficiency and reducing errors caused by re-clamping. The magnetic force is uniform and controllable, effectively resisting cutting forces and torque in different directions during five-axis machining, maintaining workpiece stability, and minimizing vibration that could affect surface finish and dimensional accuracy. Additionally, electric control can be integrated with CNC programs to automate magnetization and demagnetization, supporting smart manufacturing and robotic automated loading, enhancing flexibility in both batch and mixed production.



For **rotary surface grinding machines**, EEPM chucks provide distinct advantages in precision grinding and surface finish control. Surface grinding requires extremely stable workpiece fixation, as even minor shifts or vibrations can affect flatness and parallelism. Electro-permanent magnetic chucks offer stable and long-lasting holding force, evenly distributed across the workpiece bottom surface, eliminating localized stress concentration and preventing warping or deformation caused by mechanical clamping plates. Magnetic force can be adjusted according to the grinding area and workpiece weight, ensuring the workpiece is securely held without compromising machining accuracy. During grinding, the chuck not only provides safe and reliable fixation but also allows for quick loading and unloading, improving production efficiency. Furthermore, without the need for additional hydraulic or pneumatic systems, EEPM chucks are simple to operate, reduce energy consumption and maintenance costs, and minimize the influence of external equipment on machine accuracy.



Overall, the **application of electro-permanent magnetic chucks in vertical lathes, CNC five-axis machining centers, and rotary surface grinding machines** enhances workpiece stability and machining accuracy while significantly improving production efficiency and automation levels. Their main advantages can be summarized as follows:



1. Rapid magnetization and demagnetization: Electric control enables instant holding and release, shortening production cycles.

2. Stable holding force: Permanent magnets provide long-lasting and stable attraction, maintaining workpiece fixation even during power outages.

3. Reduced localized stress: Magnetic force is evenly distributed, preventing deformation associated with traditional mechanical fixtures.

4. Improved surface quality: Particularly beneficial for surface grinding, ensuring flatness, parallelism, and smooth finish.

5. Supports automation and batch production: Can integrate with robotic arms and smart production lines, enhancing flexible manufacturing capabilities.

6. Lower energy consumption and maintenance costs: No hydraulic or pneumatic systems required; operation is simple, safe, and reliable.



In summary, EEPM electro-permanent magnetic chucks provide a safe, efficient, flexible, and precise workpiece clamping solution, fully leveraging their performance across various high-precision machining equipment. For companies seeking improved machining efficiency, surface quality, and production flexibility, EEPM chucks are undoubtedly a key solution for enhancing overall competitiveness.
