EEPM-V Series

Customized Magnetic Chuck with Multi-zone cooperative control magnetic chuck system
https://www.earth-chain.com/web/image/product.template/4/image_1920?unique=272bccc

Customized Product

Used for automatic processing with multi-workpiece clamping

Patented

  • Taiwan M644892
  • China ZL 2023 2 0683326.3

    This combination does not exist.


    This magnetic chuck system features high intelligence and flexible control, allowing independent magnetization and demagnetization of different zones, with magnetic force adjustable according to the workpiece. A single controller can manage multiple chucks simultaneously using a one-to-many operation, saving space and cost. Once magnetized, the workpiece remains securely clamped even when power is off, ensuring both stability and energy efficiency. The system can be integrated with the machine's communication interface to enable closed-loop control, enhancing safety and automation.

    FeaturePractical Case(Picture) Practical Case (Video)

    Feature

    • The operator can arbitrarily select partitions of the magnetic chuck, and perform magnetization or demagnetization actions independently.
    • Each partition of the magnetic chuck can be set independently, flexibly matched with workpieces of different sizes and thicknesses.
    • The controller can control multiple groups of different size chuck, saving space and cost for device installation.
    • The power connection will be automatic cut off when the magnetism is completed, effectively reduce the power consumption and achieve the purpose of energy saving.
    • The controller can be connected to the machine's operation interface, achieving real closed-loop control.

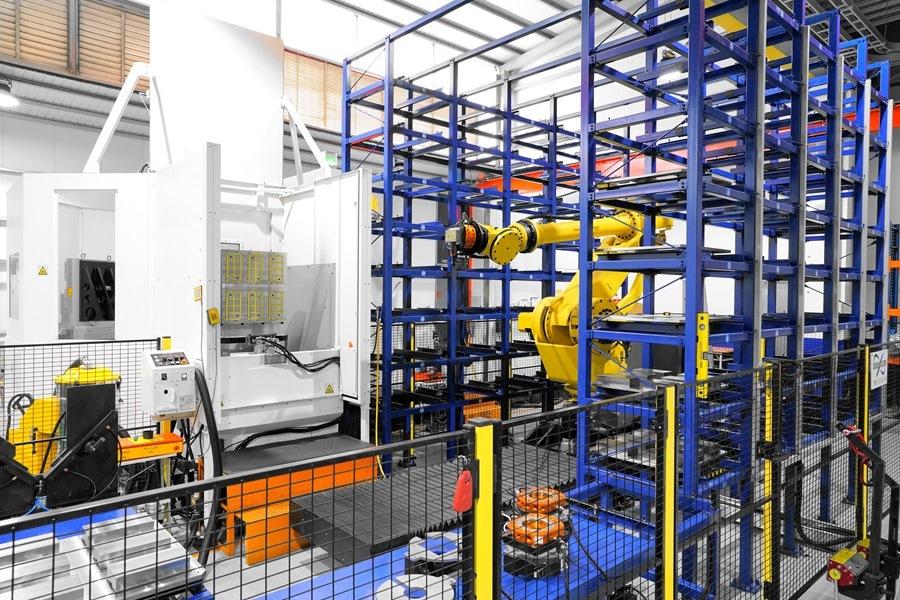

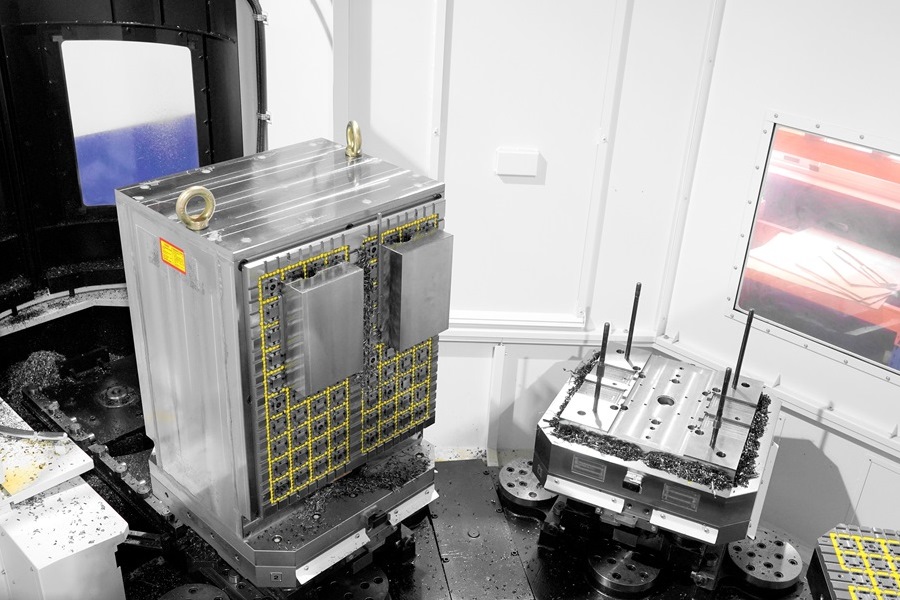

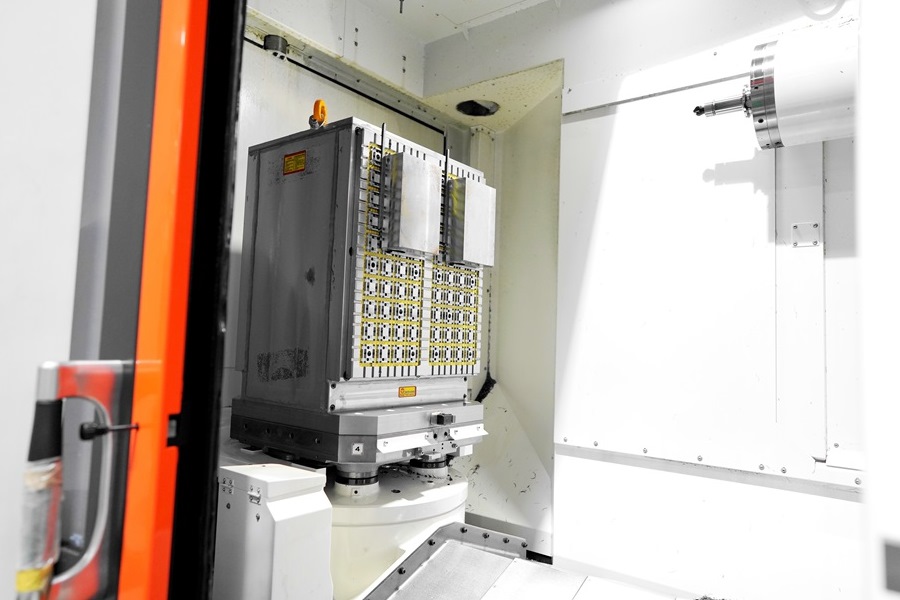

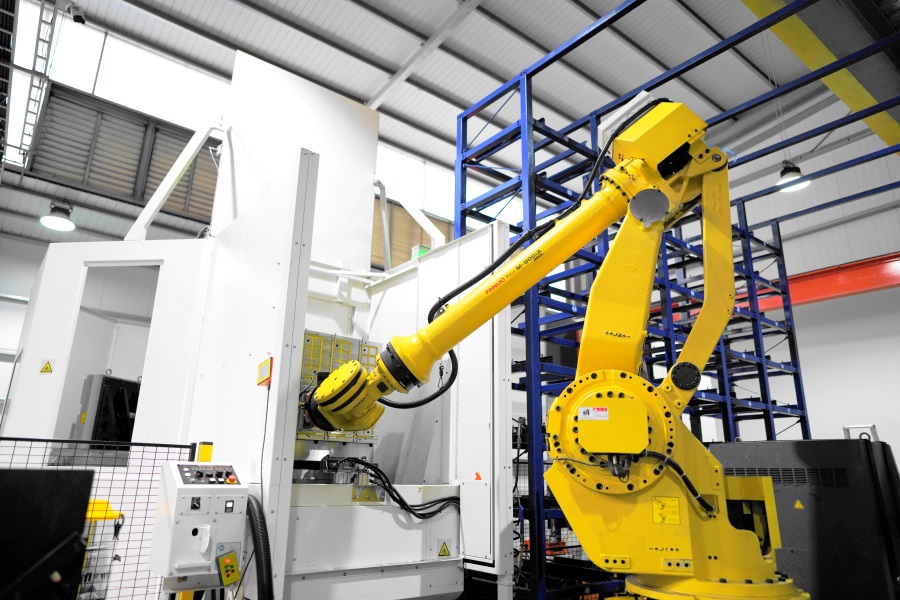

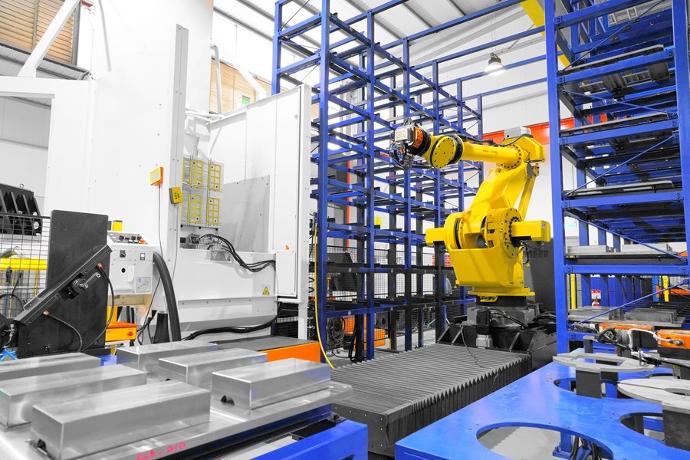

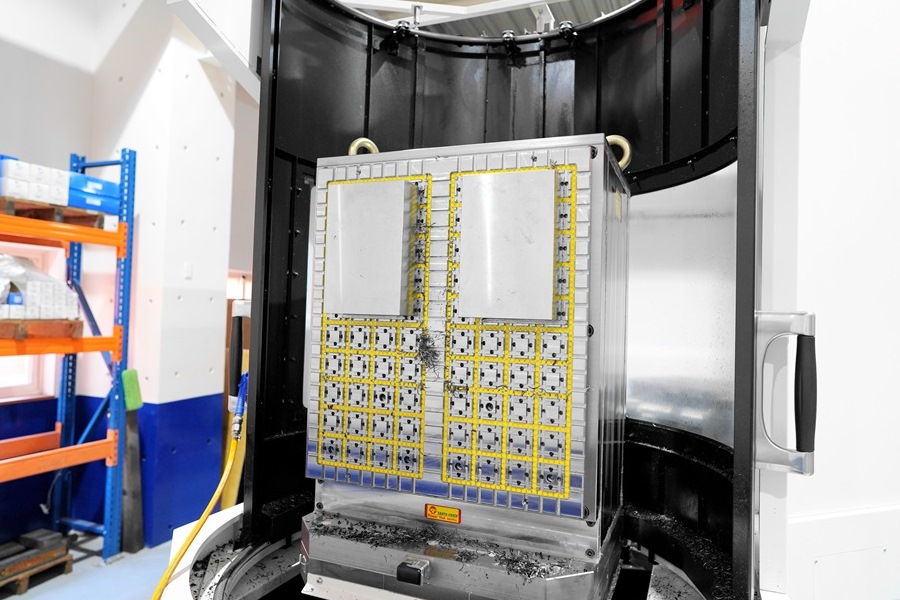

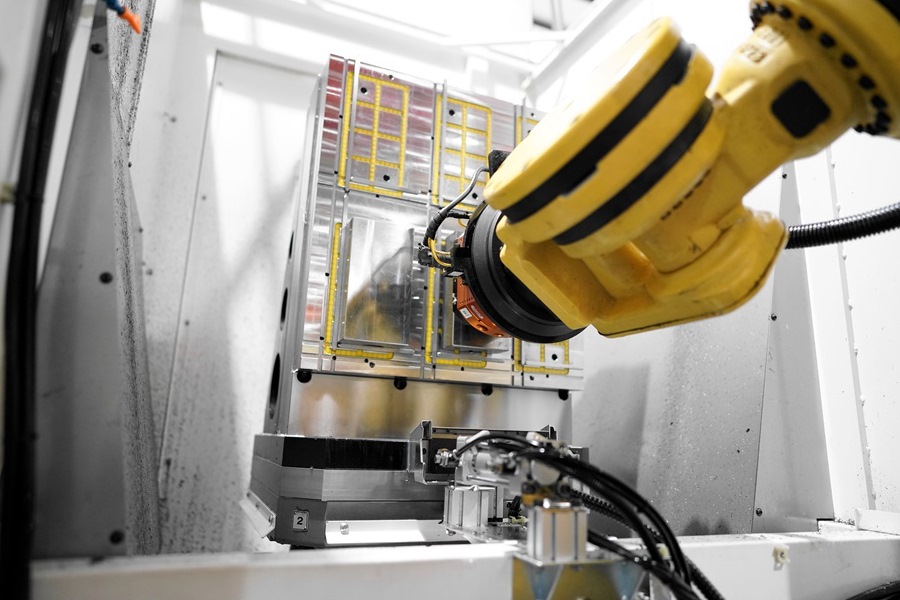

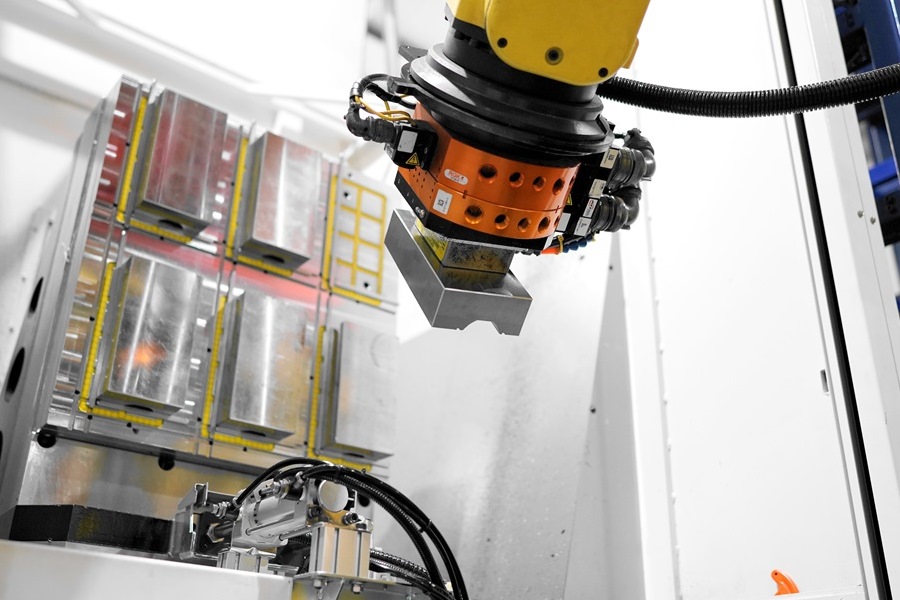

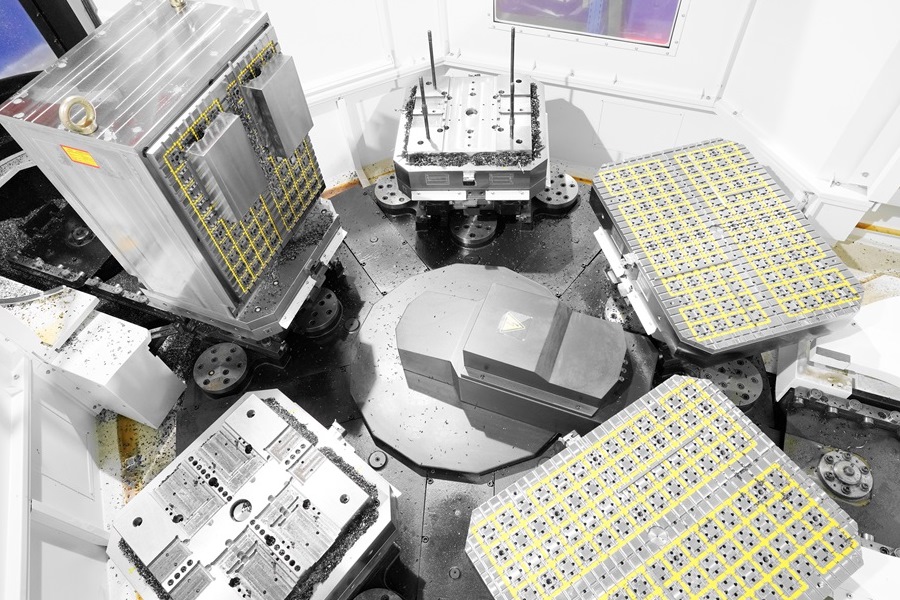

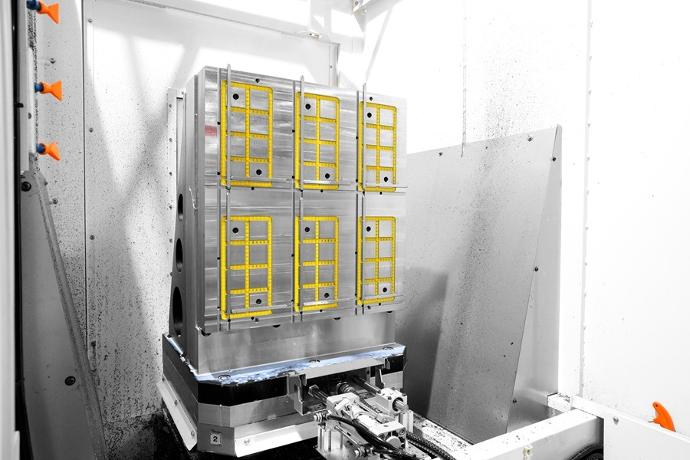

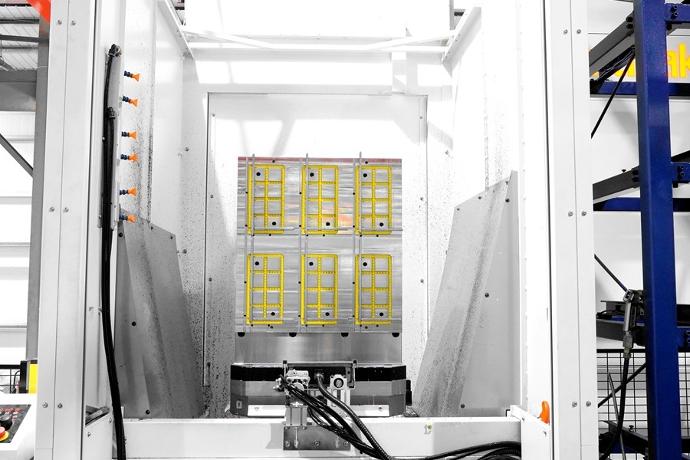

    Practical Case(Picture)

    Practical Case (Video)
