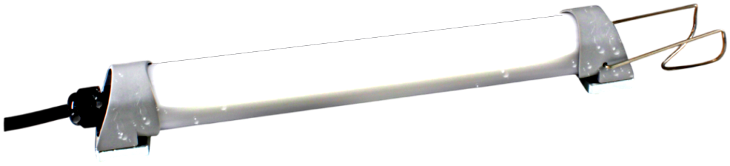

ELD-HL18/ELD-HL36
HL SERIES WATER-PROOF LED LAMP
- Power saving LED lamp. 110V~220V wide voltage range. This lamp is designed with built-in power magnets to attach on steel surface (as fig. B) and with hook on objects (as fig. A) or to brace up the lamp.
-
ldeal for machine maintenance. Ip67 proof to protect lamp from corrosive fluid or air.

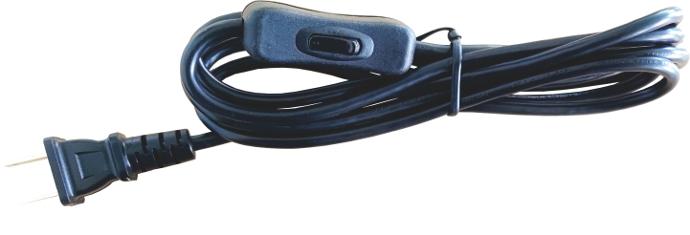

Power Cable(Contains power switch)

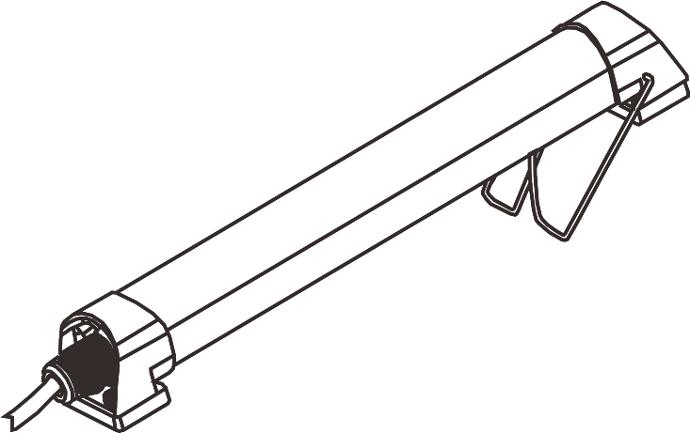

A.Hook
B.Power magnet

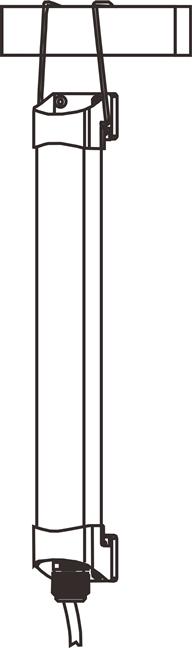

C.Use hook to brace up one end
| |

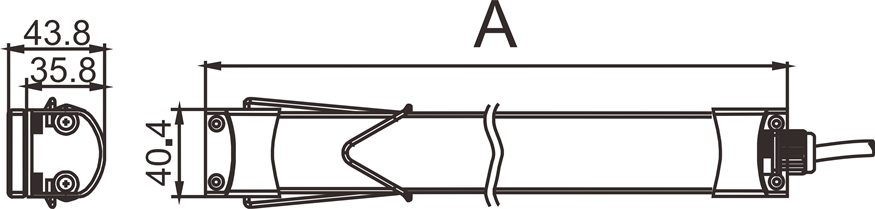

A | B |
|
LED-HL18
|
300 mm
|
290 mm
|
|
LED-HL36
|
520 mm
|
510 mm |

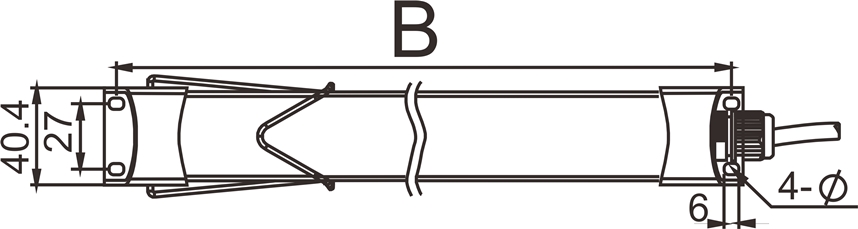

Mounting hole template(B)
