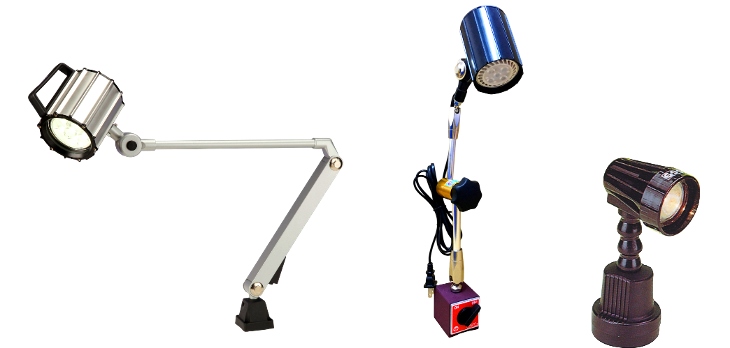

LED SERIES

LED LIGHTING LAMP
https://www.earth-chain.com/web/image/product.template/140/image_1920?unique=8de3f52

    This combination does not exist.


    LED-L95, LED-M95

    LED-HP20

    LED-601(Spot Type)

    LED-SS20(Spot Type)

    LED-L60(Spot Type)

    LED-S60(Spot Type)

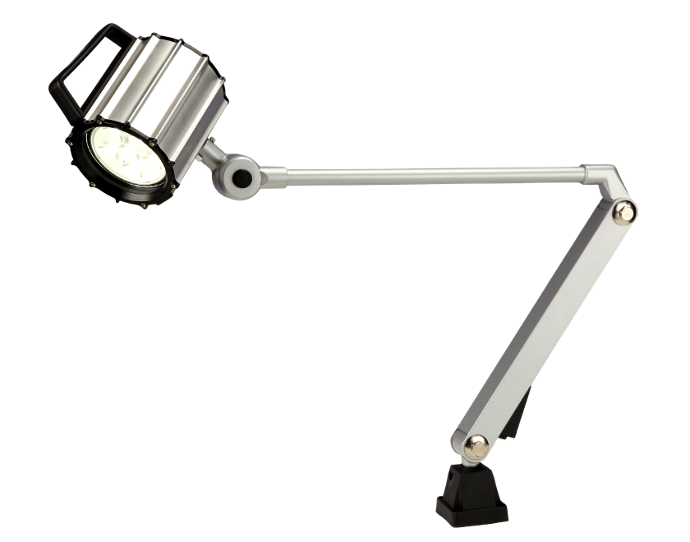

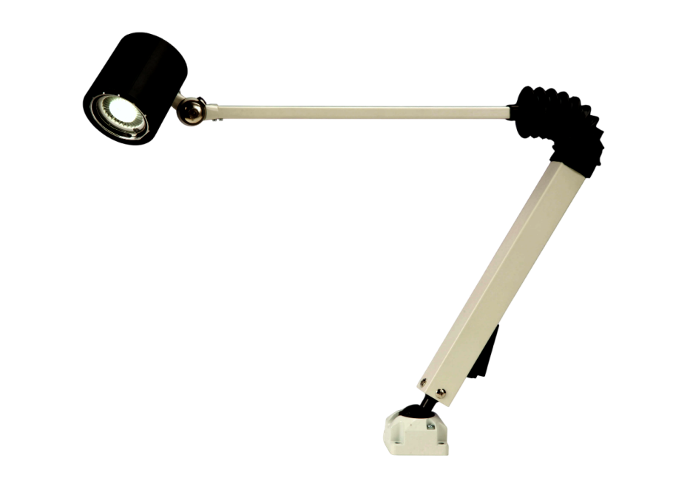

    • LED-L95 & LED-M95 are installed water-proof lighting head and specially adopted the tempered glass, so far, which can be endured the large temp variation, very bright, glare-free. Furthermore, there are equipped foldable arm and coupled with various attachment, so that, they are ideal for use in applications where the lighting cannot be attached close to the area to be illuminated since they are already designed for use on machine tool.

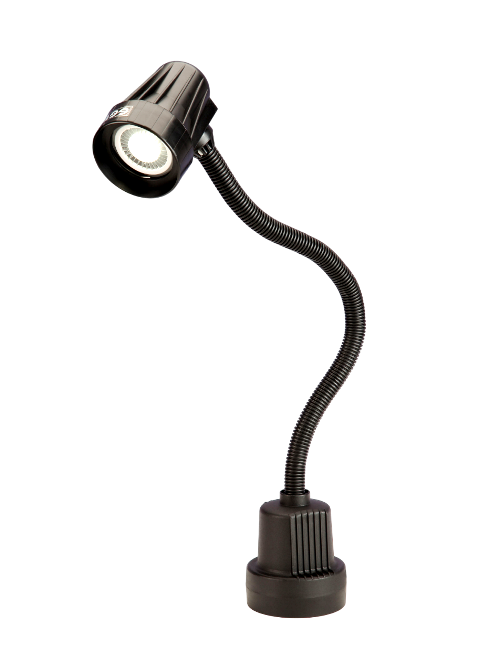

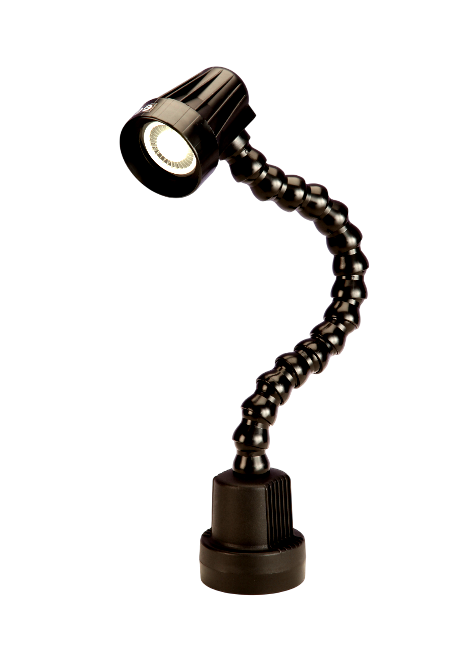

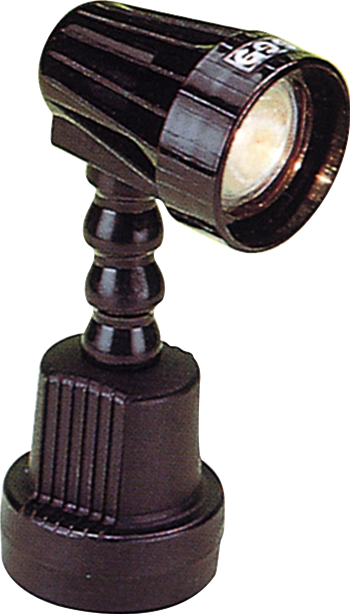

    • LED-HP20, LED-L601, LED-SS20, LED-L60 and LED-S60 are spot type ideal for workplace lighting if bright concentrated light is required in performance not too large area illumination. Suitable for use at small machineine such as CNC engraving machine, sewing maching, lathe machine, working benches and working table...etc.

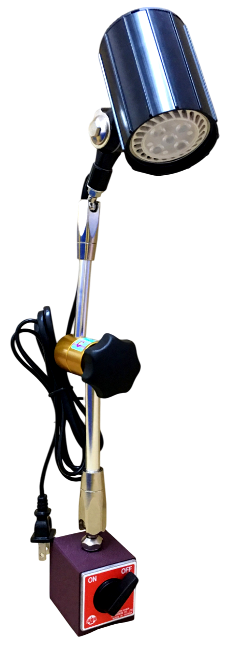

    • LED-SS20 with holding power 80kgf magnetic base.


    Unit:mm

    ModelArm Length Voltage Watt
    LED-L95  400×400mm  110V / 220V 9W
    LED-M95  220×175mm  110V / 220V 9W
    LED-HP20  415×280mm  110V / 220V 4W
    LED-601  400mm  110V / 220V 4W
    LED-SS20  347mm  110V / 220V 7W
    LED-L60  400mm  110V / 220V 4W
    LED-S60  --  110V / 220V 4W
