In the field of large-scale precision machining, gantry milling machines are widely used in mold manufacturing, mechanical component processing, and large structural part production due to their high-rigidity structure and extensive machining travel. However, machining efficiency and dimensional stability often depend on the design and reliability of the clamping system. The application of permanent electro-magnetic chucks on gantry milling machines not only overcomes the limitations of traditional mechanical clamps and bolt-fastening methods, but also demonstrates significant advantages in machining flexibility, efficiency improvement, and quality stability.

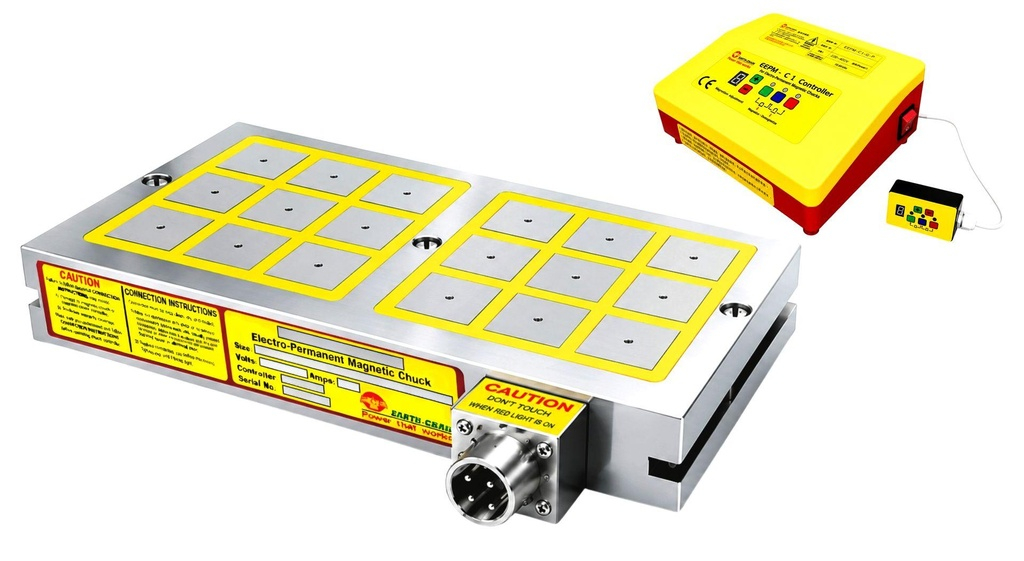

In terms of structure and operating principle, the permanent electro-magnetic chuck combines permanent magnetic materials with electrical control switching technology. By momentarily applying electric current to control the magnetic circuit on or off, it achieves strong clamping force and rapid release. A key feature is that no continuous power supply is required to maintain the magnetic holding force during clamping. This ensures energy efficiency and safety; even in the event of an unexpected power failure, the workpiece remains securely fixed. Such stable and uniform magnetic field distribution allows even force distribution across the bottom surface of the workpiece, preventing localized deformation and effectively improving flatness and dimensional accuracy.

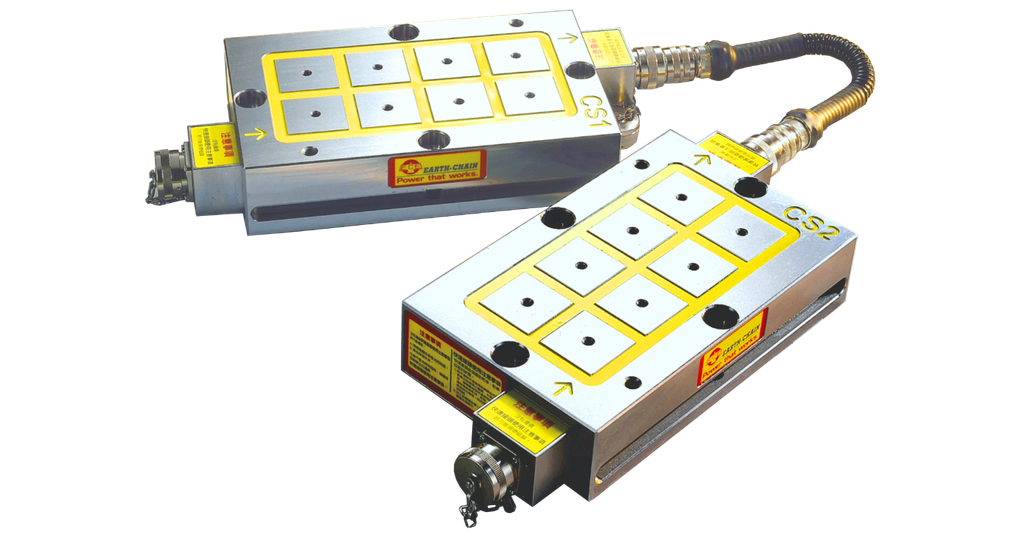

Furthermore, permanent electro-magnetic chucks feature a highly modular design, allowing the number, position, and spacing of magnetic modules to be freely configured according to workpiece size. For gantry milling machines, which typically have wide and versatile machining ranges, different workpiece dimensions require varying clamping areas and support points. Through modular arrangement of magnetic chucks, flexible configurations can be achieved to ensure that the clamping area evenly covers the entire machining range, avoiding unsupported or overhanging sections. This flexibility enhances clamping stability, effectively distributes cutting forces, and reduces vibration and machining errors.

In practical production applications, permanent electro-magnetic chucks also enable simultaneous machining of multiple workpieces. By properly arranging multiple magnetic modules, several identical or different-sized workpieces can be fixed on the gantry milling table for synchronized machining. This approach is particularly suitable for batch production, significantly reducing setup time and minimizing cumulative positioning errors caused by repeated clamping. When integrated with automated control systems, the overall production workflow can be further optimized, increasing productivity and machine utilization.

Compared with traditional mechanical clamping using step clamps and bolts, magnetic clamping offers the advantage of no mechanical interference. Conventional clamps often occupy machining space, restrict tool paths, and may require repeated disassembly to complete multi-face machining. In contrast, permanent electro-magnetic chucks provide a flat and unobstructed clamping surface, allowing tools to perform full-range machining freely, greatly improving efficiency and flexibility. Additionally, since no drilling or bolting is required, surface indentation and deformation of the workpiece can be avoided, making this solution especially suitable for high-precision or high-value materials.

In terms of machining quality, uniform and stable magnetic holding force effectively suppresses vibration, improving surface finish and dimensional consistency. During heavy cutting or high-speed machining on gantry mills, the comprehensive support provided by the magnetic chuck reduces the risk of workpiece warping and displacement, ensuring process stability. This is particularly beneficial for large plates or thin workpieces, where evenly distributed magnetic force helps prevent localized distortion and maintain overall structural accuracy.

From an economic perspective, permanent electro-magnetic chucks shorten setup and alignment time, reduce manual intervention, and enhance production rhythm. With adjustable magnetic module configurations, a single system can accommodate diverse machining tasks, lowering the cost of fixture fabrication and replacement. Moreover, the ability to machine multiple workpieces simultaneously increases output per unit time, ultimately reducing machining costs and enhancing competitiveness.

In conclusion, the application of permanent electro-magnetic chucks on gantry milling machines offers clear advantages in safety and energy efficiency. Through modular configuration, it achieves full coverage of the machining area and enables high-efficiency multi-workpiece processing. With stable magnetic force, flexible arrangement, and high-precision support characteristics, it has become an indispensable clamping solution in modern large-scale precision machining. As smart manufacturing and automation technologies continue to advance, permanent electro-magnetic chucks will play an increasingly critical role in improving machining quality and production efficiency.
