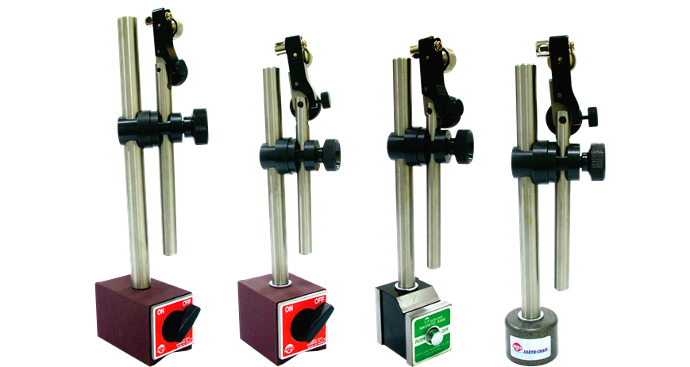

ECE-01A/ECE-02/ECE-02A/ECE-02B

HIGH PRECISION MAGNETIC STAND
https://www.earth-chain.com/web/image/product.template/53/image_1920?unique=fd522f5

    This combination does not exist.


    • With new type micro-adjustment device, it's more precise and stable.
    • The main and sub poles are made of stainless steel material.

    ECE-01A

    ECE-02

    ECE-02A

    ECE-02B

    HIGH PRECISION MAGNETIC STAND

    HIGH PRECISION MAGNETIC STAND

    Unit:mm

    Model Holding Power  Tapped Hole  Main Pole  Sub Pole  Base Dimension  Net Weight
    L  W  H
    ECE-01A  100 kgf  M10 × 1.5 Ø18×240 Ø14×217 80 mm 50 mm 55 mm  2.3 kg
    ECE-02  80 kgf  M8 × 1.25 Ø14×178 Ø11×178 60 mm 50 mm 55 mm  1.5 kg
    ECE-02A  35 kgf  M8 × 1.25 Ø14×178 Ø11×178 48 mm 40 mm 49 mm  1.2 kg
    ECE-02B  30 kgf  M8 × 1.25 Ø14×178 Ø11×178 Ø40×30  0.8 kg
