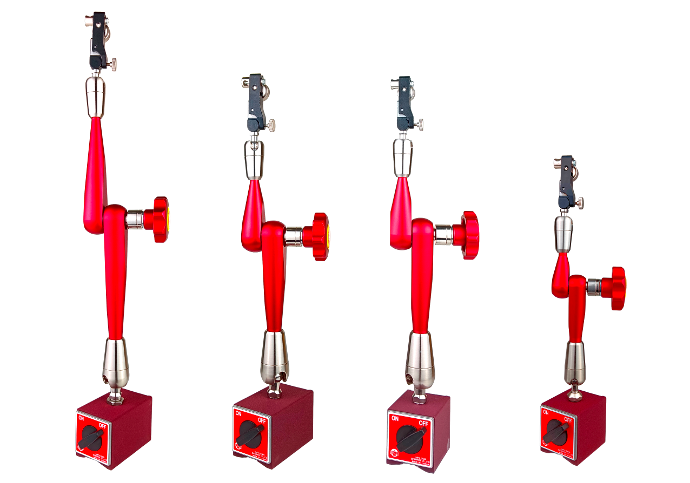

ECE-330 Series

Precision Type Mechanical Arm

Patented:Taiwan M352674

Feature

Made by aluminum alloy, light and easy to operate.

With new type micro-adjustment device, it's more precise and stable.

Specification

Unit:mm

Model	Holding Power	Arm Length	Base Dimension			Net Weight
Model	Holding Power	Arm Length	L	W	H	Net Weight
ECE-330AL	100 kgf	426 mm	80 mm	50 mm	55 mm	2.2 kg
ECE-330A	100 kgf	345 mm	80 mm	50 mm	55 mm	2.0 kg
ECE-330B	80 kgf	345 mm	60 mm	50 mm	55 mm	1.7 kg
ECE-330BS	80 kgf	278 mm	60 mm	50 mm	55 mm	1.5 kg

將其替換為您自己的 HTML 代碼

Practical Case(Picture)
