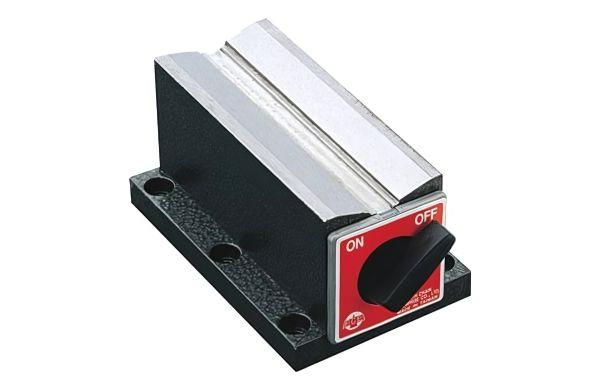

ECE-612

MAGNETIC CLAMPING BLOCK
https://www.earth-chain.com/web/image/product.template/81/image_1920?unique=be83cf5

Suitable for seting on the drilling machine and milling machine to hold work-piece of round steel bar or steel.

    This combination does not exist.


    SpecificationPractical Case(Picture)

    Specification


    Unit:mm

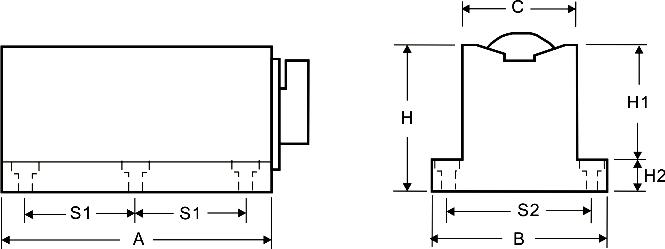

    ModelHolding Power Dimension Net Weight
    V-Face Surface A B C H H1 H2 S1 S2
    ECE-612  110 kgf  160 kgf  118 76 50 62 50 12 48 62 2.50 kg

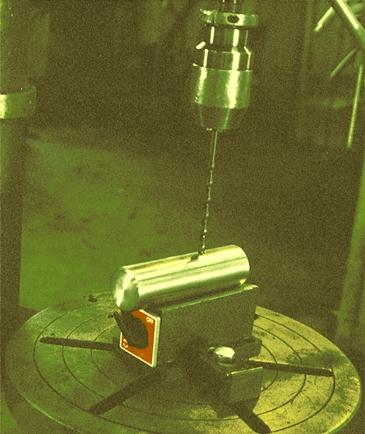

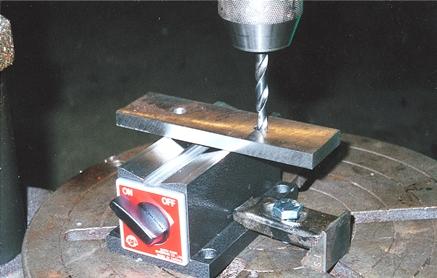

    Practical Case(Picture)
