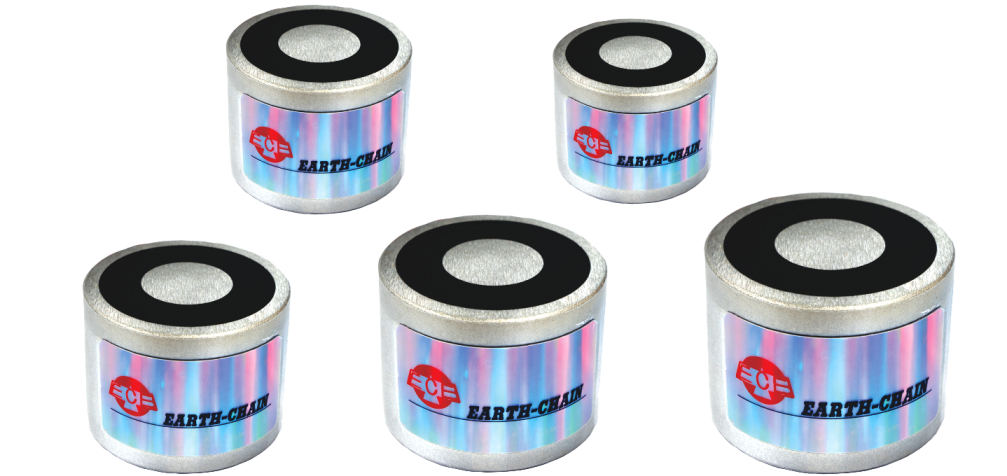

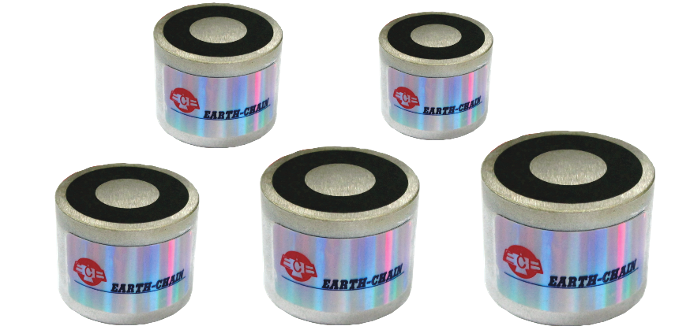

ECM SERIES

Small Electromagnet
https://www.earth-chain.com/web/image/product.template/65/image_1920?unique=d65691e

Suitable to be used with

Automatic Robotic Arm clamping

    This combination does not exist.


    FeatureSpecificationPractical Case (Video)

    Feature

    Light weight, Powerful, High Safety, Low Price, Easy assembly

    Suitable for automated production line including robotic arm, medical, machine, laboratory equipment and other automatic processing production line materials or product transport applications.

    Specification

    Unit:mm

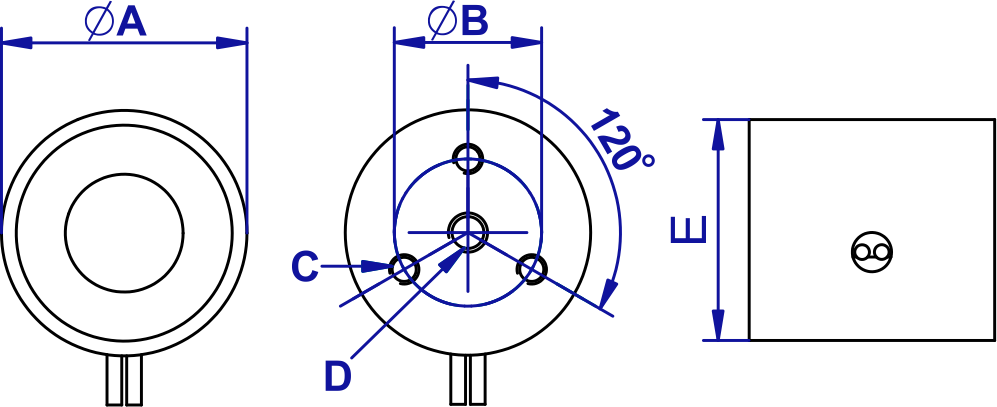

    Model NO.ABCDELINE
    LENGTH    		CURRENT
    AMP    		N.W.MAGNETIC FORCE
    ECM-25 25 15 M3 M4 22.5 300 0.11 0.07 15 kgf±5%
    ECM-30 32 18 M3 M5 24.5 300 0.12 0.12 25 kgf±5%
    ECM-40 42 26 M4 M5 30.5 300 0.25 0.26 60 kgf±5%
    ECM-50 52 34 M4 M5 34.5 300 0.31 0.45 90 kgf±5%
    ECM-60 65 40 M5 M8 38.5 300 0.40 0.78 160 kgf±5%

    Practical Case (Video)
