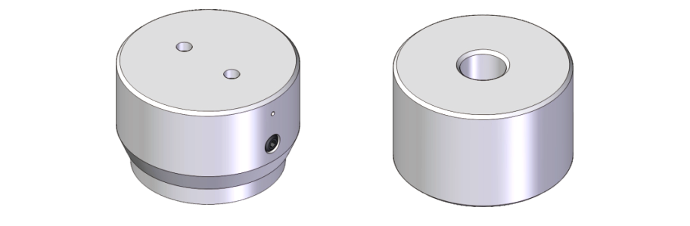

EEPM-SPR Series

Suitable to be used

with clamping on iron cast, irregular form and flexuous workpieces, it will
not be out of shape the workpiece after machining.

Feature

Suitable for clamping on iron cast, irregular form and flexuous workpieces, it will not be out of shape of the workpiece after machining.
3 Fixed Blocks is necessary for each workpiece clamping, it could be makes a basic surface for the workpiece touch to the Spring Blocks.

Unit:mm

MODEL NO	OD	H	SUITABLE
EEPM-SPR35	Ø37	21~25	EEPM-A Series
EEPM-SPRF35	Ø37	23	EEPM-A Series

Unit:mm

MODEL NO	OD	H	SUITABLE
EEPM-SPR50	Ø52	30~35	EEPM-B Series
EEPM-SPF50	Ø52	32.5	EEPM-B Series

Unit:mm

MODEL NO	OD	H	SUITABLE
EEPM-SPR70	Ø72	39~45	EEPM-D Series
EEPM-SPF70	Ø72	42	EEPM-D Series

Relative magnetic force to Fixed block and Spring block:

MODEL NO	HOLDING POWER (Kgf)
FIXED BLOCK	85%
SPRING BLOCK	40%
