ELM-L Series

Adjustable Spreader Beam
https://www.earth-chain.com/web/image/product.template/32/image_1920?unique=3febdcc

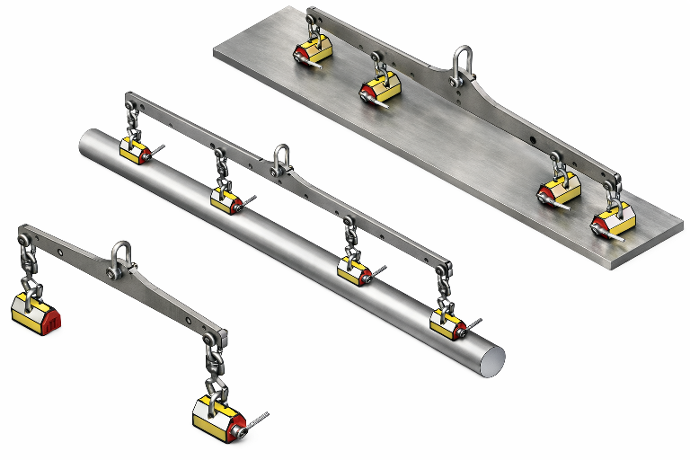

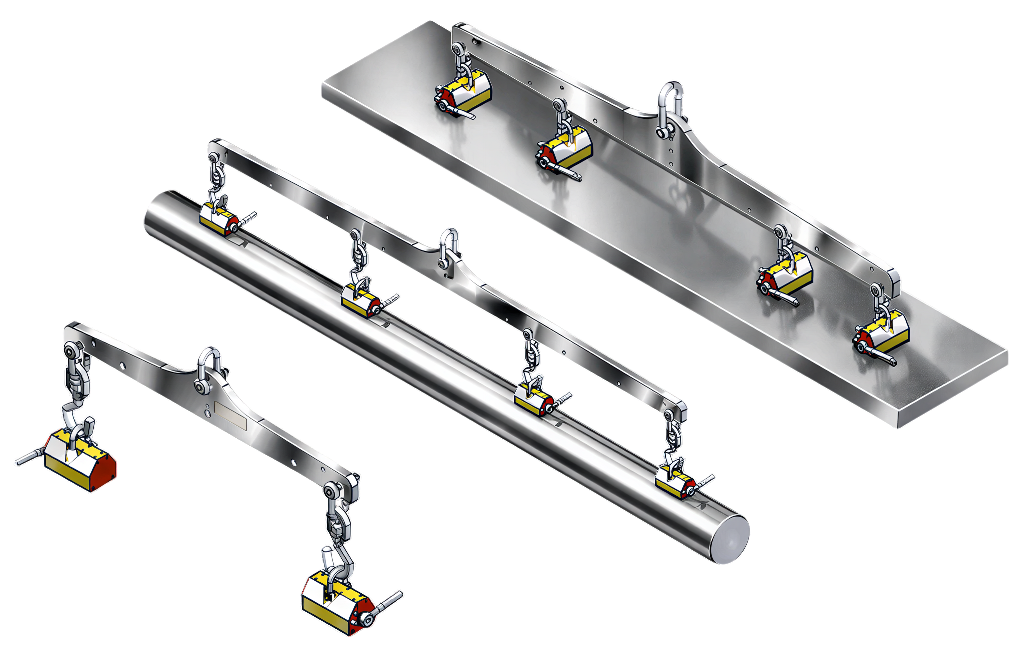

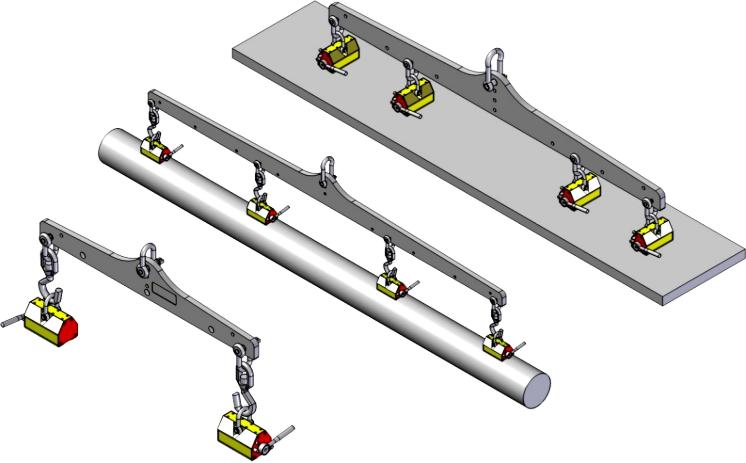

ELM-L Adjustable Spreader Beam for Lifting

Patented:Taiwan D173646, China ZL 2015 3 0073422.7


    This combination does not exist.


    This product doesn't include permanent lifting magnet "ELM Series", lifting magnets are optional according to your applications.

    FeatureSpecification

    Feature

      • For better overall balance.
      • Use with multiple lifters.
      • Lifter span adjustable.


    Keeps large materials balanced for safer transport.

    Specification

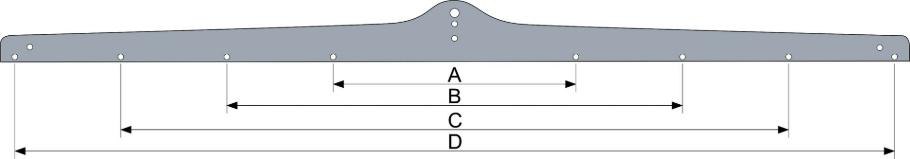

    Unit:mm

    ModelABCDWeight
    mminchmminchmminchmminchkglbs
    ELM-1000L 600 23.6 900 35.4 -- -- -- -- 16 35
    ELM-1600L 700 27.6 1100 43.3 1500 59.1 -- -- 25 55
    ELM-2000L 700 27.6 1300 51.2 1900 74.8 -- -- 57 125
    ELM-2600L 700 27.6

    1300

    		 51.2 1900 74.8 2500 98.4 75 165
    ELM-3000L 800 31.5 1500 59.1 2900 86.6 2900 114 86 189

    Spreader bars help keep large or irregular loads under control during transport. You can increase your lifting power by adding more magnets.
