Feature
- Made by "Rare Earth" magnet with technology of improvement.
- All new models with "light weight" "less dimension" and "lower price".
- Made by permanent magnet, require no power supply, thus eliminating hazards due to failure wiring system as electric type.
- It features powerful magnetic force, with 3.5 times safety coefficient makes more safety in use.
Applications

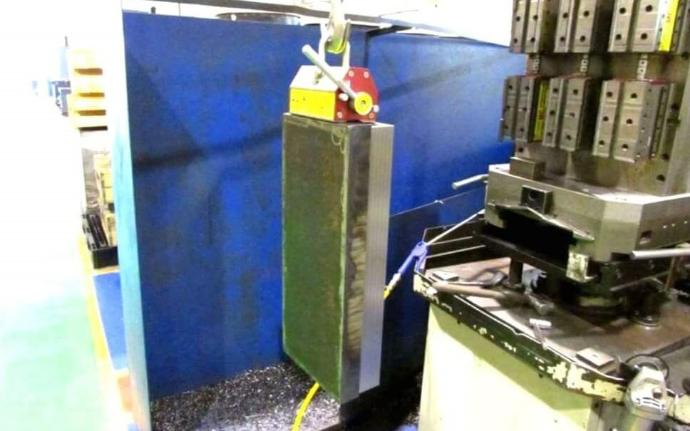

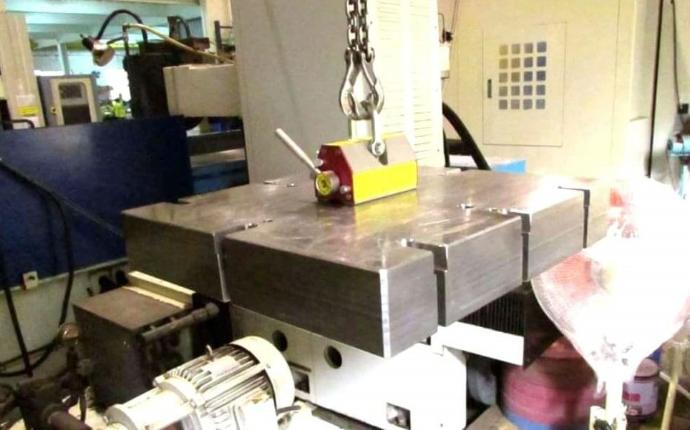

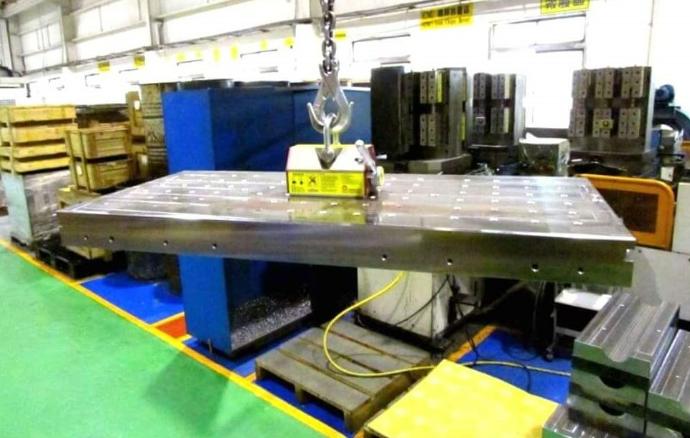

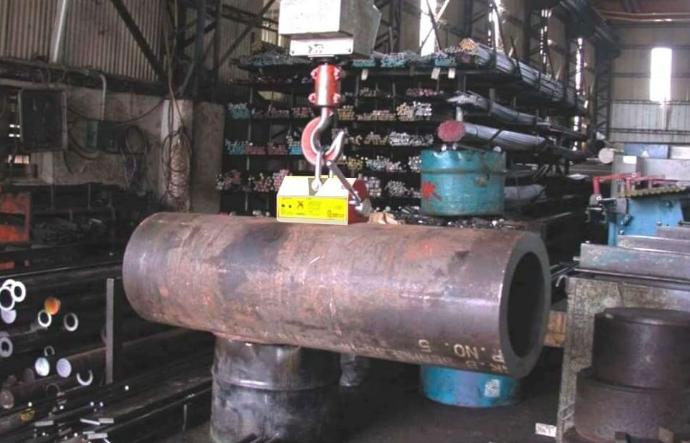

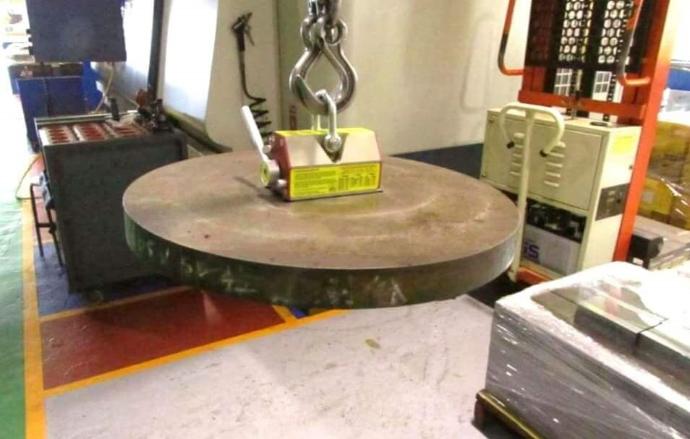

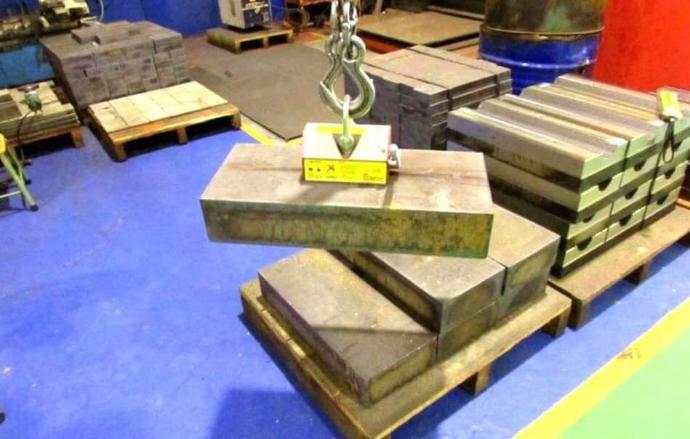

Suitable for move plate steel, block steel and round steel, such as machine parts, press molds, plastic molds and iron material .....etc.
SAFETY FACTOR x 3.5TIMES (ELM-3000 × 3.0 times)
The capacity of magnet indicated as 1/3.5 of holding power, it means the real holding power is 3.5 times of capacity. For example the capacity of ELM-600 is 600kg (1320lbs) but the real holding power is 2100kg (4620lbs).
The large safety coefficient is concideration for ensuring the use in safety.
MAXIMUM LIFTING RANGE
| Form of material | Steel plate  | Round steel   ; | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|

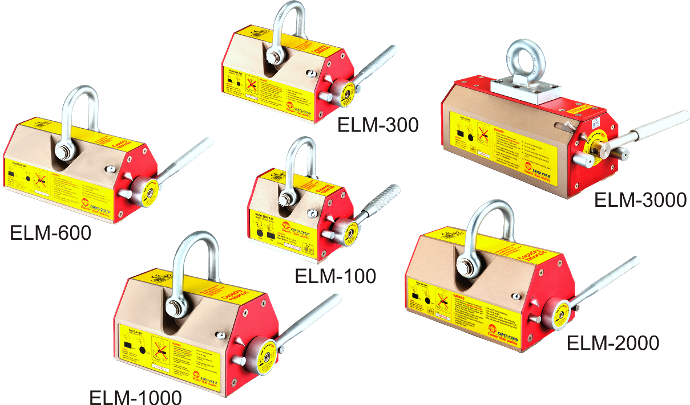

| MODEL | Max. lifting capacity | Min. thickness required | Max. lifting capacity | Max. diameter | Maximum length | |||||
| kgf | lbs | mm | inch | kgf | lbs | mm | inch | mm | inch | |
| ELM-100 | 100 | 220 | 15 | 0.59" | 60 | 132 | 150 | 5.9" | 500 | 20" |
| ELM-300 | 300 | 660 | 25 | 0.98" | 180 | 400 | 250 | 9.8" | 800 | 32" |
| ELM-600 | 600 | 1320 | 30 | 1.18" | 360 | 800 | 350 | 13.8" | 1200 | 48" |
| ELM-1000 | 1000 | 2200 | 40 | 1.57" | 600 | 1320 | 450 | 17.8" | 1500 | 60" |
| ELM-2000 | 2000 | 4400 | 55 | 2.16" | 1200 | 2640 | 550 | 21.6" | 1800 | 70" |
| ELM-3000 | 3000 | 6600 | 60 | 2.36" | 1800 | 3960 | 650 | 25.6" | 2300 | 90" |
The above diagrams is only for reference. The operator should be test and chech if it is in safe range before lift away the workpiece of steel. Other wise, it will be not responsibility by producer for any accidents.

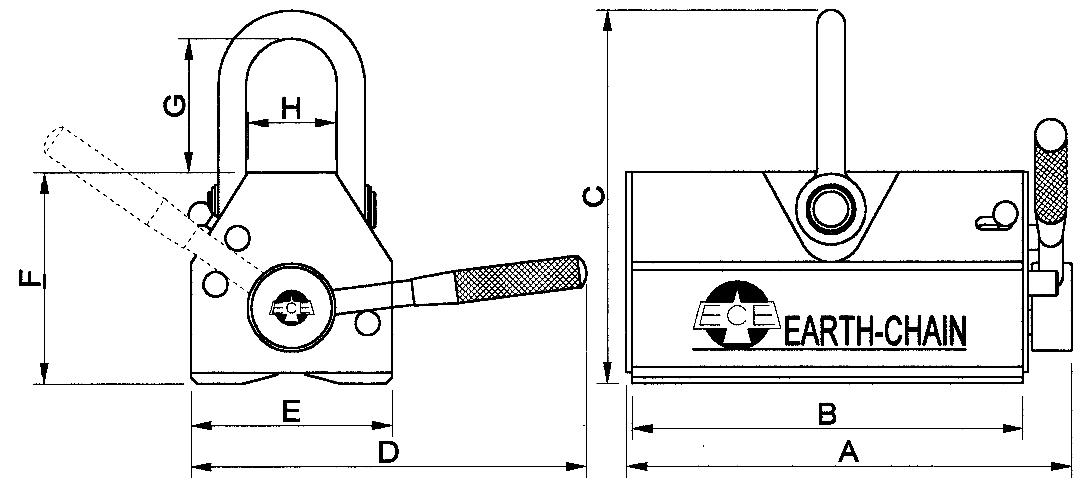

Specification
Unit:mm
