ELM-V Series

Vertical Lifting Magnets

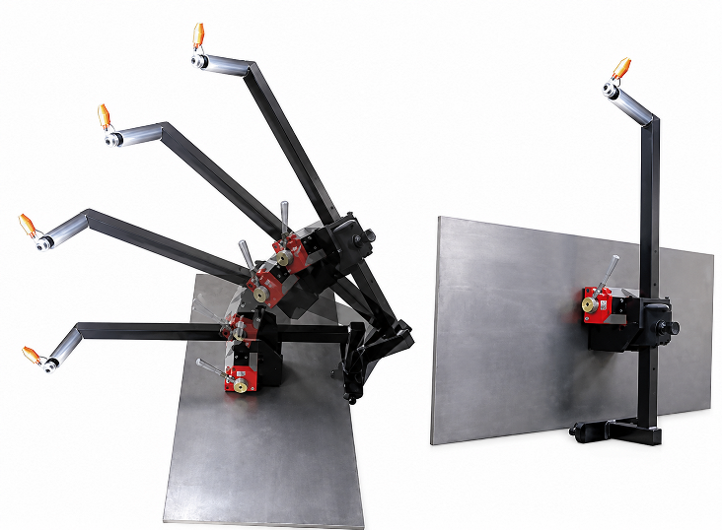

ELM-V Vertical Lifting Magnets
(The device included a Lifting Magnet)

Patented:Taiwan D173646, China ZL 2015 3 0073422.7

Feature

Fast loading for vertical transport.
One person can load and unload.
No dangerous straps & slings.

Used for vertical transport of plate stock for fabricating, machining, etc.

Specification

Unit:mm

Model	Size L X W X H		Weight
Model	mm	inch	kg	lbs
ELM-300V	953 X 216 X 254	37.5 X 8.5 X 10	26	57
ELM-600V	1156 X 272 X 254	45.5 X 10.7 X 10	39	86
ELM-1000V	1207 X 343 X 305	47.5 X 13.5 X 12	58	128

Model	Plate Size ( L X W X H min/max )
	Capacity		L (min. / max.)		W (min. / max.)		H (min. / max.)
	kg	lbs	mm	inch	mm	inch	mm	inch
ELM-300V	300	660	200/1500	8/60	300/800	11.8/31.5	6/150	0.25/5.9
ELM-600V	600	1320	300/1800	12/72	300/1000	11.8/39.4	8/250	0.31/9.8
ELM-1000V	1000	2200	300/2000	12.5/79	300/1000	11.8/39.4	10/300	0.93/11.8
