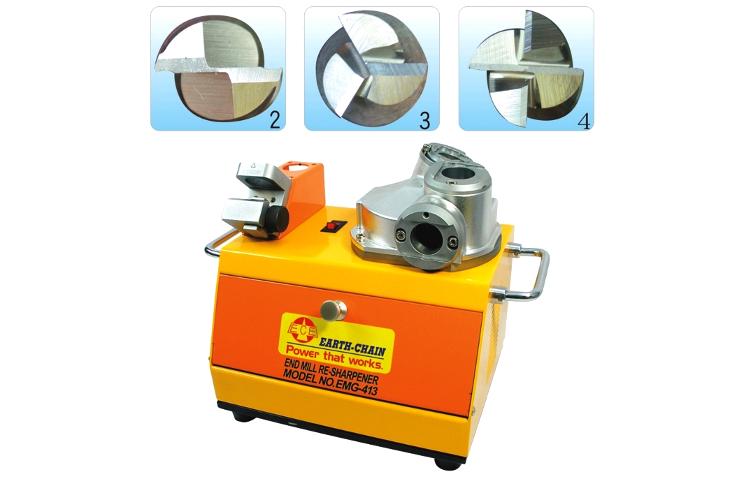

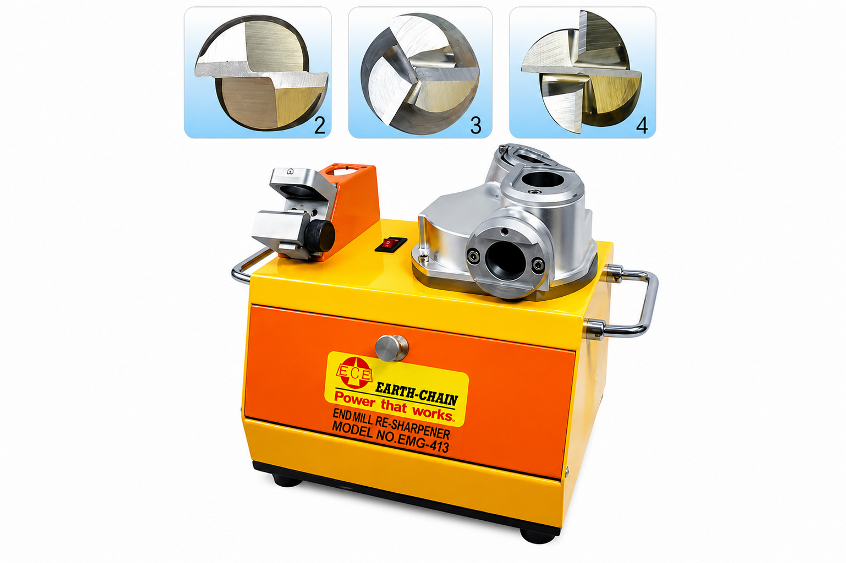

EMG Series

End Mill Re-Sharpener
https://www.earth-chain.com/web/image/product.template/117/image_1920?unique=e42a5c5

Easy Fast Precision


    This combination does not exist.

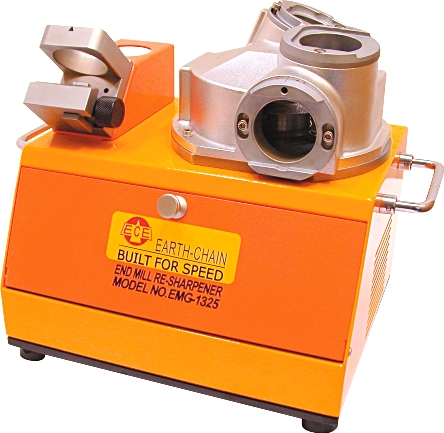

    EMG-1325(Ø12mm ~ Ø25mm)

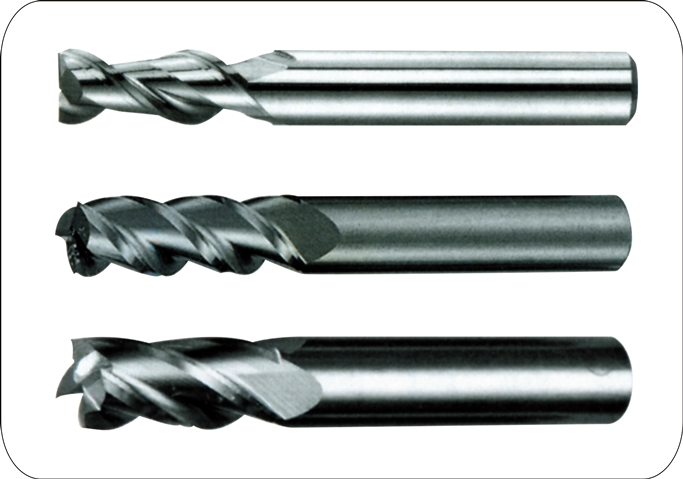

    For 2.3.4flutes END MILL



    6pcs ER collets
    2pcs collet holders



    SDC wheel for Ø12mm-Ø25mm
    CBN wheel for Ø12mm-Ø25mm

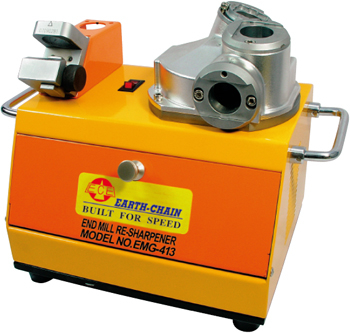

    EMG-413 (Ø4mm-Ø13mm)




    10pcs ER collets
    2pcs collet holders

    2pcs SDC Wheels included (For carbide End Mill only.)


    SDC wheel (for Ø4mm ~ Ø5mm)


    SDC wheel (for Ø6mm ~ Ø13mm)

    Specification Standard Accessories

    Specification

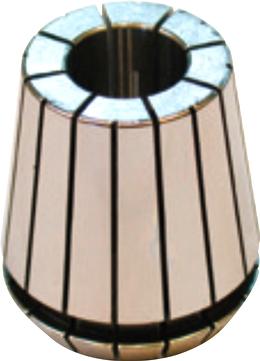

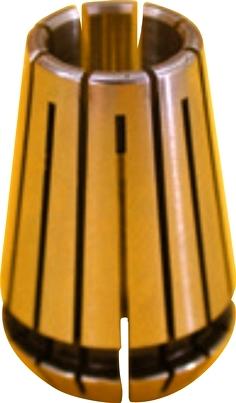

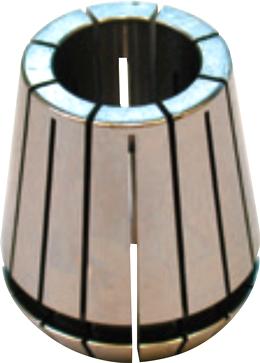

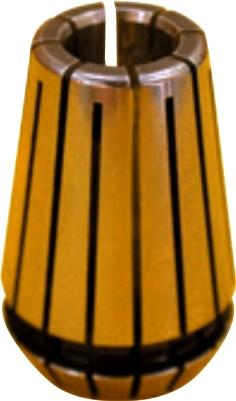

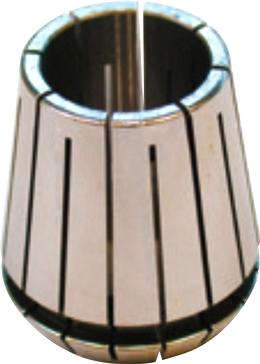

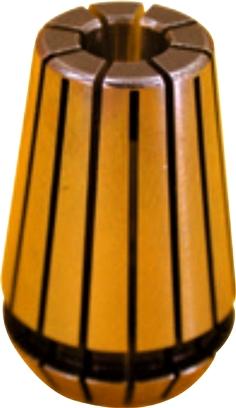

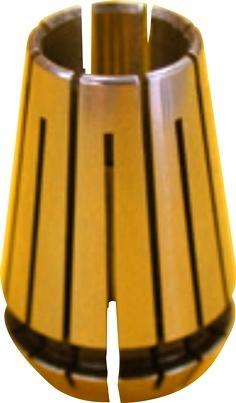

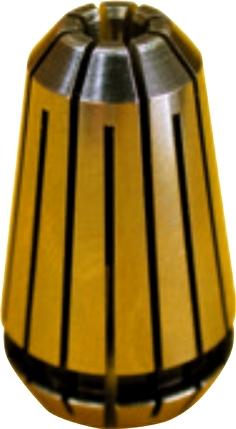

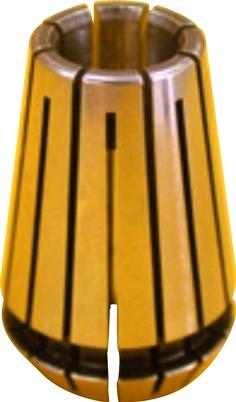

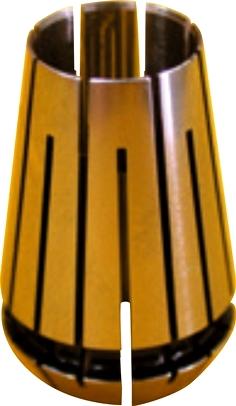

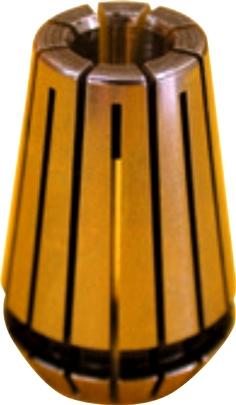

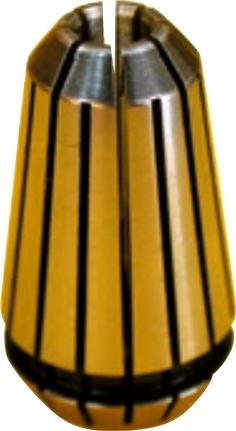

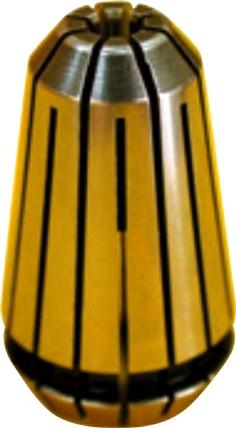

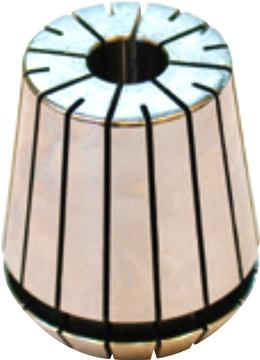

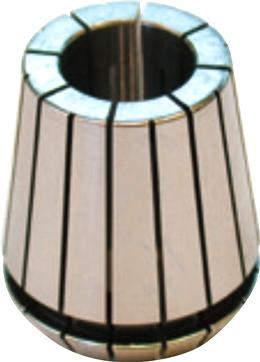

         ER collets

     Order No. EMG-413ER

    Ø4mm

    Ø5mm

    Ø6mm

    Ø7mm

    Ø8mm

    Ø9mm

    Ø10mm

    Ø11mm

    Ø12mm

    Ø13mm

      Order No. MG-1225ER

    Ø12mm

    Ø16mm

    Ø18mm

    Ø20mm

    Ø22mm

    Ø25mm

    Model NO.EMG-413EMG-1325
    Capacity Ø4mm ~ Ø13mm Ø12mm ~ Ø25mm
    Drill Angle End Mill Re-Sharpener (Easy Fast Precision) EMG-1325
    Grinding Wheel SDC Wheel #300 for Ø4mm ~ Ø5m　 CBN #150 x 1PC
    SDC Wheel #300/#120 for Ø6mm ~ Ø13mm SDC #150 x 1PC
    Motor 3/4 HP 450W 1000W
    R.P.M. 6000 R.P.M. 4300 R.P.M.
    Power Supply AC110V or AC220V Single Phase
    Weight 17 KGS 31 KGS

    Standard Accessories

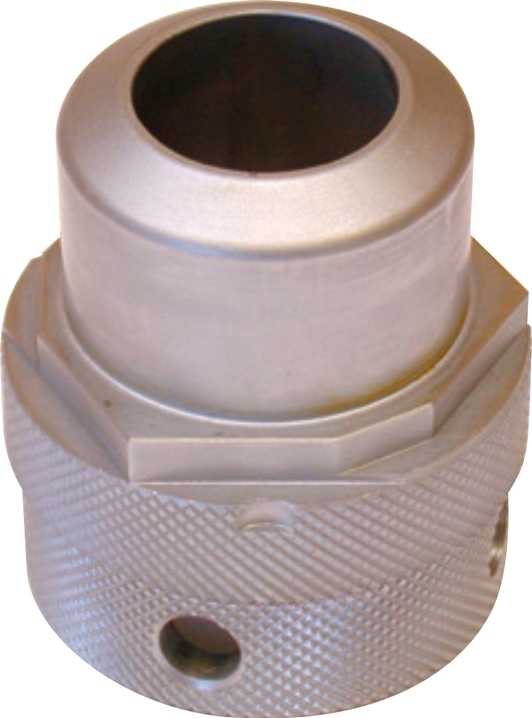

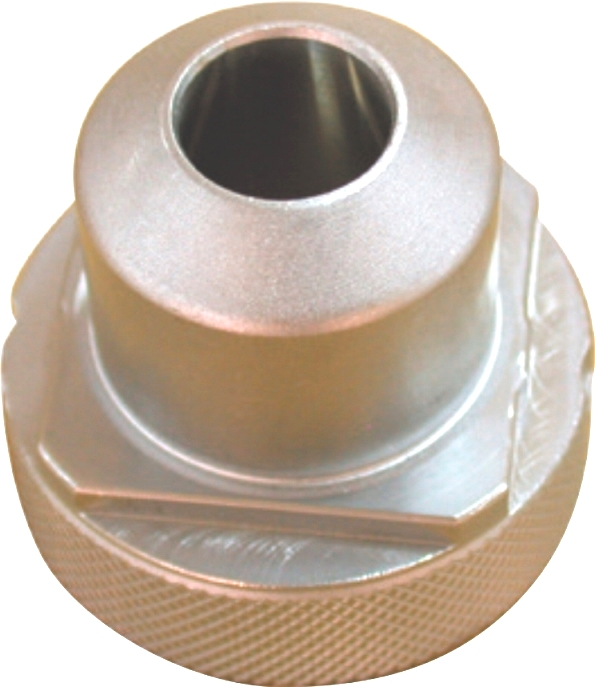

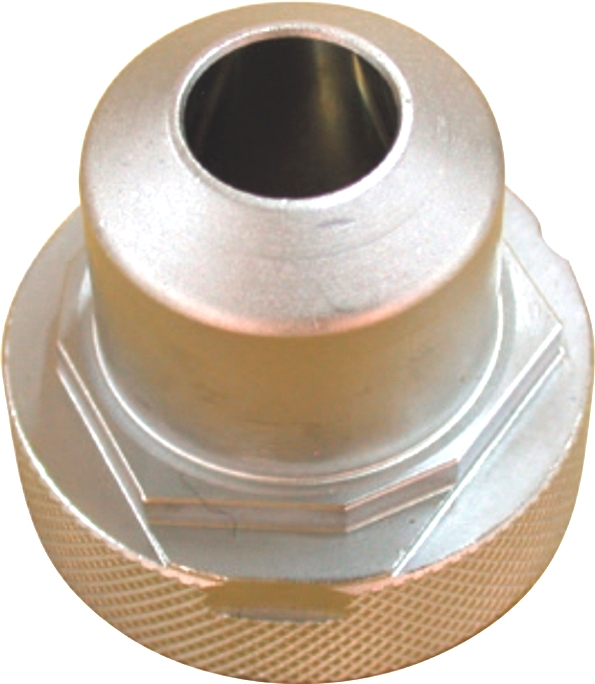

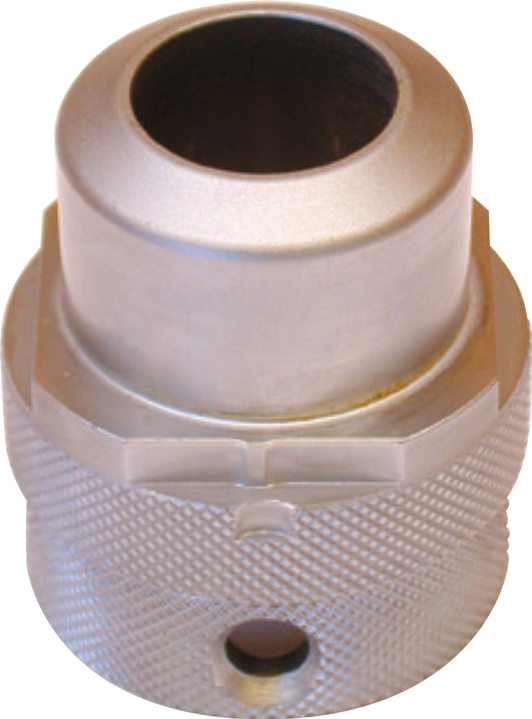

    Collets Holder



    for 3 flutes End Mill

    EMG-413-H1

    for 2 and 4 flutes

    EMG-413-H2


    for 3 flutes End Mill

    EMG-1225-H1


    for 2 and 4 flutes End Mill

    EMG-1225-H2

    Model NO.EMG-413EMG-1325
    ER collets Ø4mm ~ Ø13mm x 10pcs Ø12mm ~ Ø25mm x 6pcs
    SDC Wheel #300 x 1pcs (Ø4mm ~ Ø5mm) CBN #150 x 1PC
    SDC Wheel #300 #120 x 1pcs (Ø6mm ~ Ø13mm) SDC #150 x 1PC
    Collet Holder 1pc (for 2 and 4 flutes End Mill) 1pc (for 2 and 4 flutes End Mill)
    Collet Holder 1pc (for 3 flutes End Mill) 1pc (for 3 flutes End Mill)
    Hexagon Wrench 4mm x 1pc 4mm x 1pc

    Option Accessories

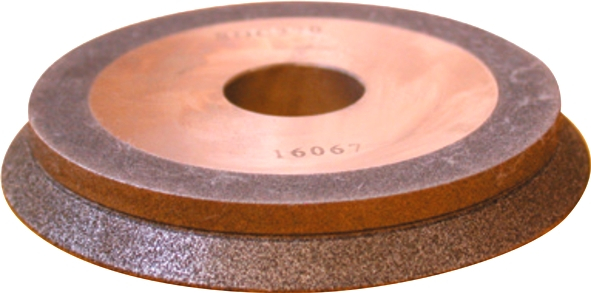

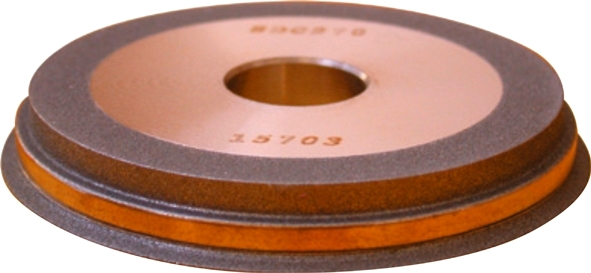

    SDC and CBN wheel

    EMG-413-1D
    or
    EMG-413-1C

    EMG-413-2D
    or
    EMG-413-2C


    EMG-1225-1C


    EMG-1225-1C

    Model NO. Description
    EMG-413-1D SDC Wheel #300 (for Ø4mm ~ Ø5mm)
    EMG-413-2D SDC Wheel #300 / #120 (for Ø6mm ~ Ø13mm)
    EMG-413-1C CBN Wheel #300 (for Ø4mm ~ Ø5mm)
    EMG-413-2C CBN Wheel #300 / #120 (for Ø6mm ~ Ø13mm)

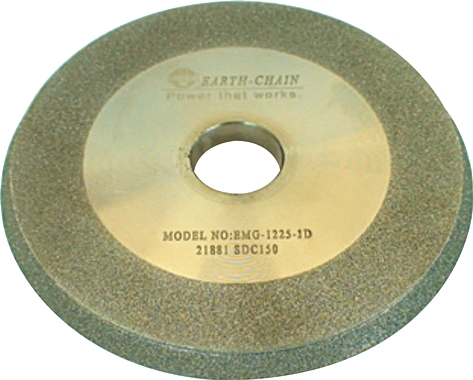

    EMG-1225-1D SDC Wheel #150 (for Ø12mm ~ Ø25mm)

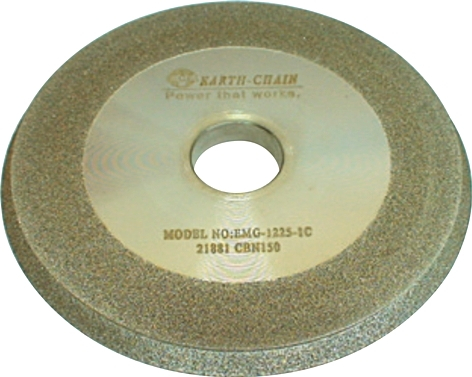

    EMG-1225-1C CBN Wheel #150 (for Ø12mm ~ Ø25mm)
    ***SDC Wheel for carbide End Mill.
    ***CBN Wheel for HSS End Mill.
