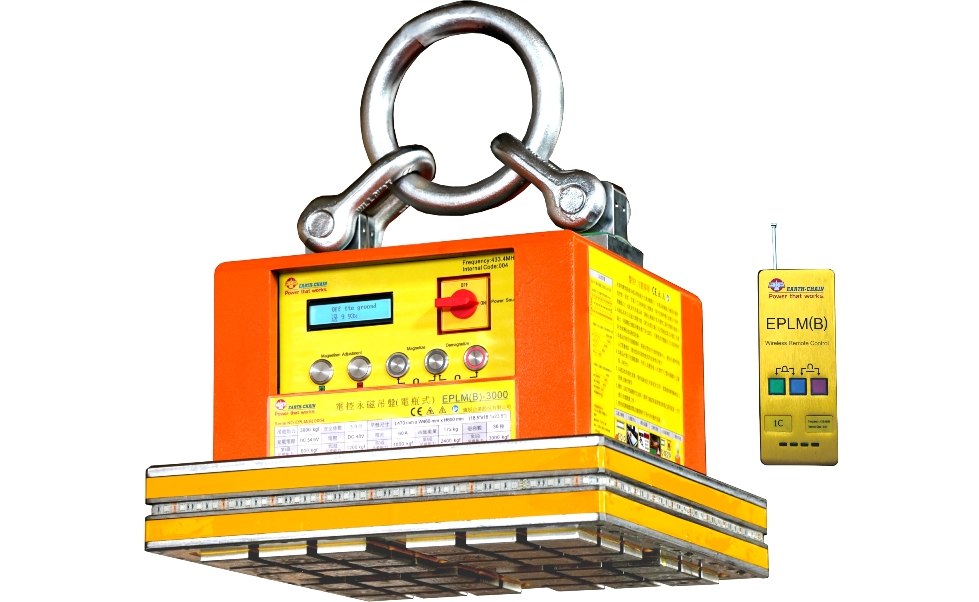

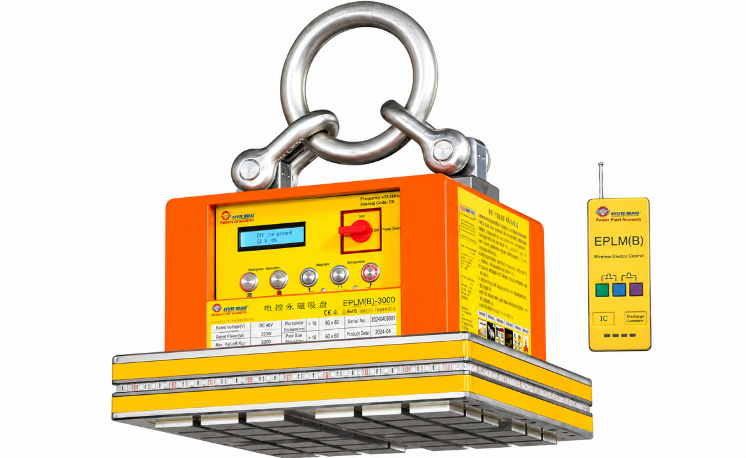

Feature
- Battery type Permanent magnet electronic control structure design, with Neodymium (NdFeB). No electric power supply required to keep magnetic chuck ON and provides maximized safety in case of power failure.
- Low-voltage safety warning system, can detect the lithium battery power through the screen at any time.
- With explosion proof Lithium battery, the charger can be setting 110V~220V.
EPLMB-3000B can be used for operating 160 cycles after the battery is fully charged.
EPLMB-4000D/EPLM-4000DS can be used for operating 100 cycles after the battery is fully charged. - The magnetism is divided into 5 levels, it can be adjusted the best magnetic force level for different workpieces.
- Modular design can be freely expanded the output port, and the number of EPLMB Lifters are according to the application.
- The numbers of EPLMB can be operated by wireless remote control the maximum can be 10 pcs EPLMB Lifter. Under unobstructed environment, the wireless remote control distance can be 20 meters.
- Customization：Replaceable induction block will be alternative option according to different workpiece sizes or shapes to meet the various applications requirements.
- Proximity sensor device: When the hoisting and lifting is started the wireless remote control device can't carry out any operation to prevent potential risk of workpiece dropping caused by mistouch the button.
Application:
Suitable for large iron and steel plate lifting and moving.
Warning!
Do not operate at temperatures above 80℃(176 F).
Safety sensor
With Safety sensor system, to prevent potential risk of workpiece dropping caused by
mistouch the button.
With safety sensor, when the hook is pulled up, the demagnetization could not be conducted.
If the operator mistouches the button, the buzzer (alarm) will sound and the LED flashes red
light to alert the operator.
Five levels magnetism force setting
The magnetism is designed with an adjustable function and divided into 5 levels. Can be
adjusted the magnetism based on the thickness of the workpiece. Thickness of workpiece
above 5mm can be quickly lift/move.
Specification
3 models are available:
1. EPLMB-3000B:
- Suitable for flat and thin workpieces above 10mm.
-
EPLMB-3000B can be used for operating 160 cycles after the battery is fully charged.
Unit:mm
2. EPLMB-4000D:
-
Suitable for steel plates, molds, cylindrical iron or irregular castings workpiece.
(Special accessories are required-EPLM (D)-IB Series) -
EPLM-D(B) can be used for operating 100 cycles after the battery is fully charged.
Unit:mm
3. EPLMB-4000DS:
- Suitable for flat and thin workpieces above 20mm.
-
EPLMB-4000DS can be used for operating 100 cycles after the battery is fully charged.
Unit:mm
- The Magnetic forces will changes depending on the thickness, attractive face roughness and quality of material and clearance between the workpiecec with EPLMB.
- When lifting round steel, the maximum lifting capacity is 2,000kgf due to installation of V-shaped EPLMB-IB.

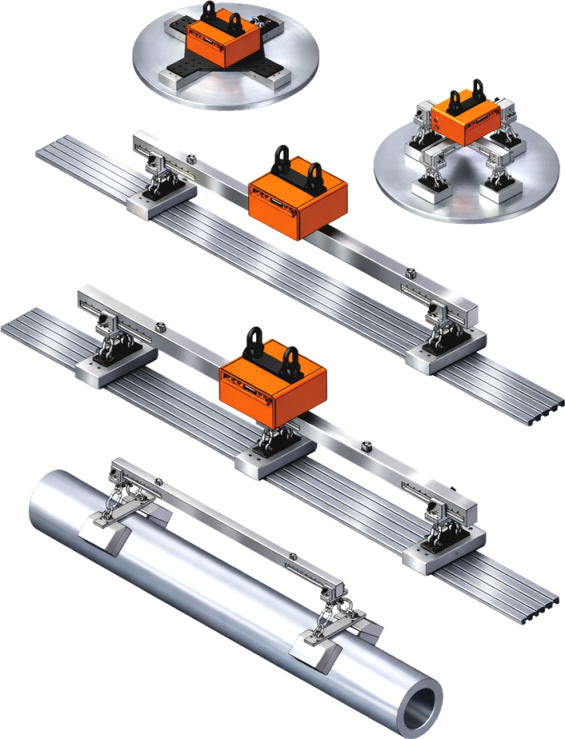

Option Accessories
Induction Block: EPLMB-IB Series
- Induction Block EPLMB-IB series could be machining according to varies workpiece shapes to increase workpiece touch surface for improving lifting capacity.
-
The EPLMB-4000D series can be used with different Induction blocks EPLMB-IB for the variety workpiece shapes required.
-
Induction block EPLMB-IB Series can be replaced and used for various type of workpiece such as steel plates, iron blocks, molds, cylindrical iron or irregular castings etc. for more application efficiency.
Application Drawings

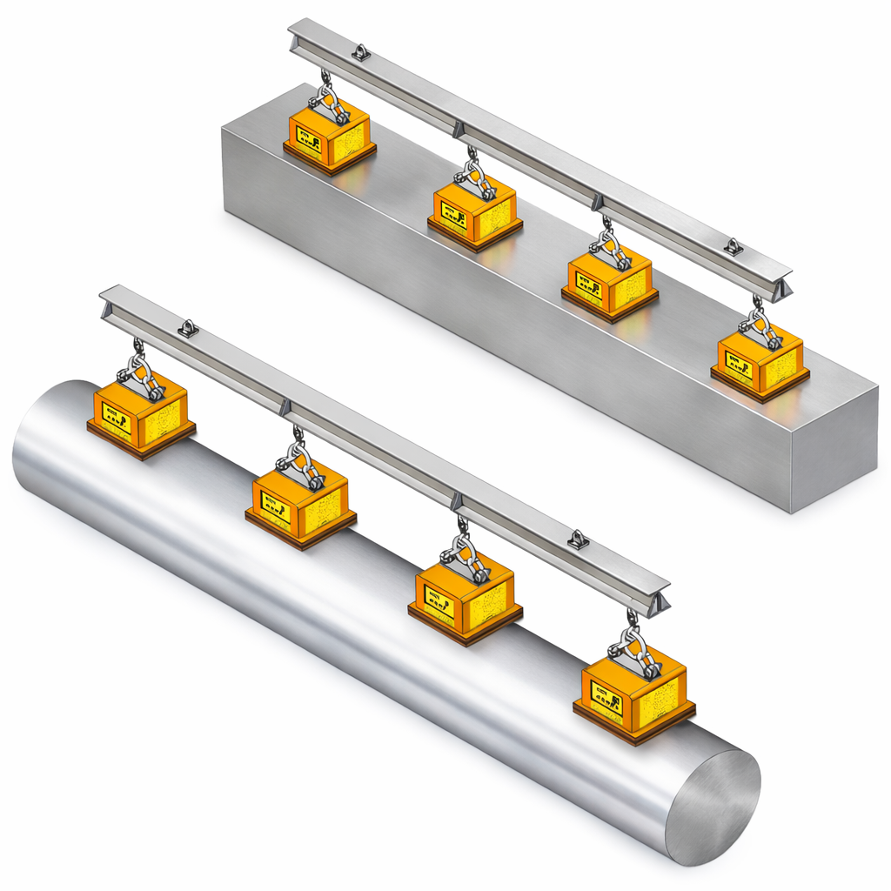

EPLMB Spreader Bars (Manntectured by Customer)
- Spreader bars help keep large or irregular loads under control during transport.
- Can be free to set up position, numbers and distance of EPLMB according to the dimension of workpiece and application for lifting balance, safety and convenience.
- Operated by wireless remote control, a single operator can control multiple EPLMB Lifter simultaneously which can easily lift large workpieces and greatly reduce the time for personnel to operate the lifting workpiece.
Custom-made product, please specify the workpiece dimension and weight before place order.
Electro-Permanent Lifting Magnet (battery type) EPLMBS series is Custom-Made professionally.
It could be customized according to workpiece shape, size and weight, with Custom-Made structure design to meet the different application of customers' various industries.
