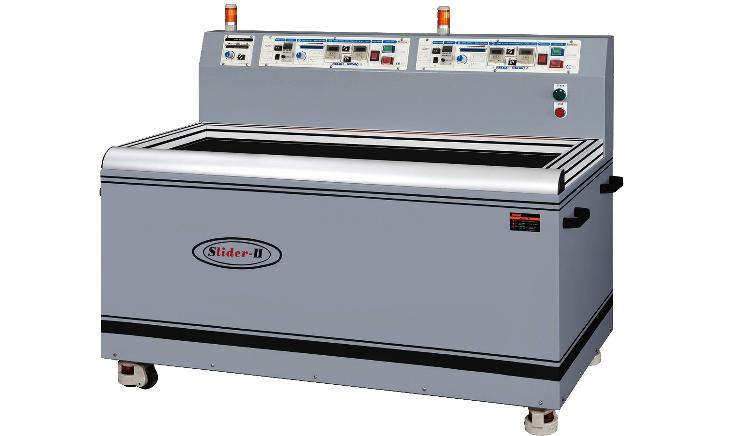

HD-7200

Metals applicable(Twin-spindle & Horizontally movement)
https://www.earth-chain.com/web/image/product.template/106/image_1920?unique=272bccc

Magnetic polishing machine

    This combination does not exist.




    Feature:

    • Patented TWIN-SPINDLE system
       • Each spindle can be operated independently as 2 sPINners
       • The twin spindles can do joint horizontal movement.
    • Suitable for long parts, such as plates, panels, or rods. The horizontal movement can grind every corner uniformly.
    • Suitable for the magnetic material. The horizontal movement can help the parts to rotate.

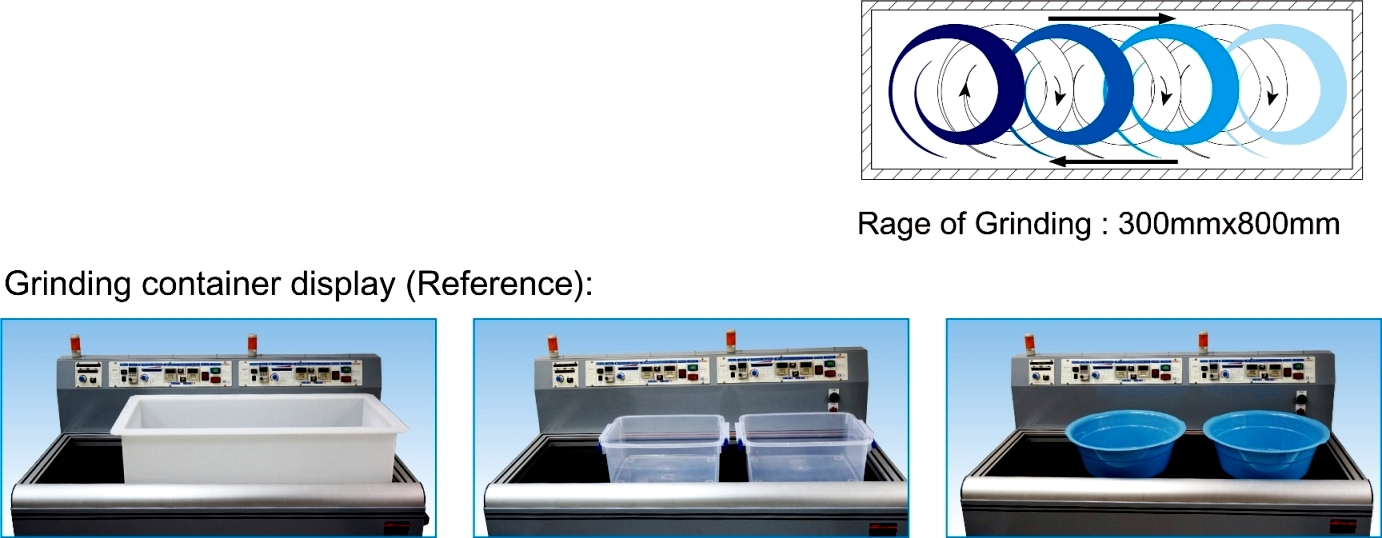

    • The effective grinding area is 800 × 300 mm
    • The total grinding capacity is 6KG.

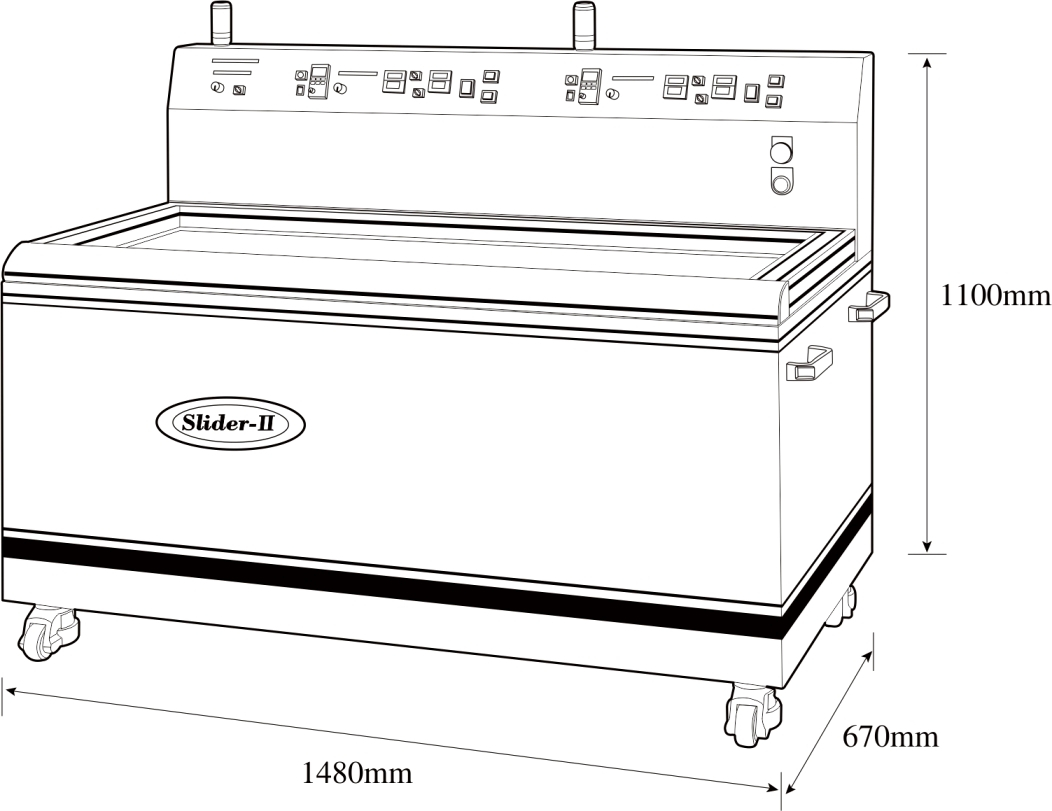

    MODEL DIMENSION(L X W X H) CONTAINER SIZE(LxH) POWER  WEIGHT
    HD-7200  1480×670×1100 mm  1000×450×255 mm 3 phase AC 220/380V(50/60HZ) 500 KG
    MODEL Max. processing capacity (Reference Value) STANDARD ACCESSORIES
    HD-7200  copper、stainless steel、aluminum、zinc(non-magnetic material)  6 KG

    1.Stainless pins/12KG(Standard Dimension)
    2.Plastic container/2 set
    3.Separating container/1set
    4.Magnetic sleeve/3set
    5.Grinding liquid/(12,000c.c)
    6.Operation manual

    iron、steel、stainless steel( magnetic material) 3 KG
