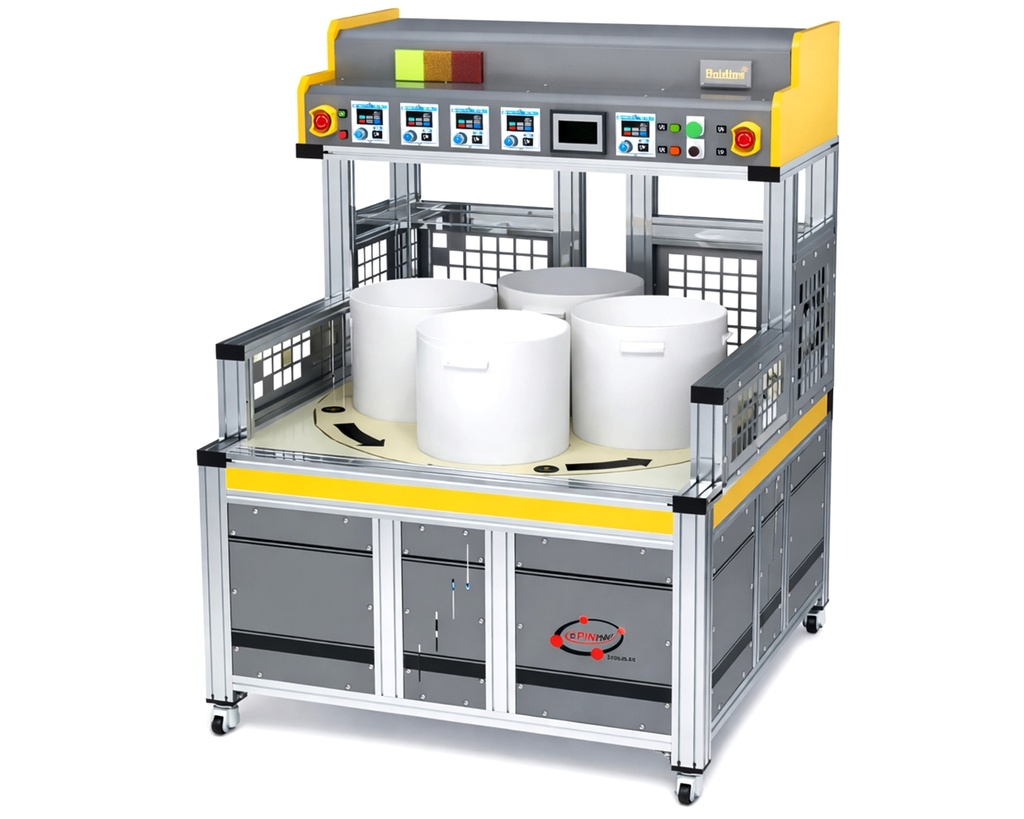

HD-7445
Circular model :4 tanks : 20KG
Magnetic polishing machine
High-capacity, Automated, Labor-saving Model
Circular model integrates multiple grinding areas together with a center-rotating worktable. It can grind multiple tanks of workpieces at the same time and reduce operating manpower. It equips a friendly HMI (hum-machine interface) and a PLC controller.
Many operation modes can be selected. It can communicate with external controllers through common protocols and I/O, and it can interact with robot arms to achieve full automation.
It supports many intelligent functions such as: saving and loading parameters as recipes; recording production history; managing accessing permissions; and recording abnormal alarms.
Fully Customized Machine
This model can be customized in many aspects according to the size and output of workpieces,
such as the number of grinding areas, the size of the grinding area, and the operation models.
The HMI can be integrated into the machine or at an external control box. The user interface and
external handshaking can also be customized.
Feature:
• It's a High-capacity, automated, labor-saving model.
• Patented circulation mechanism, such as sequential workstation integrating four groups of grinding containers.
• Realize the automation ideal of single-person control of multiple machines.
• Human Machine Interface and PLC control, multiple intelligent modes can be selected. For example automatic pit stop, continuous loop... etc.
