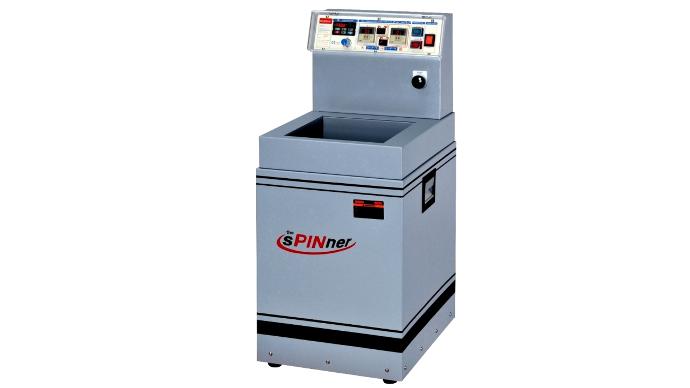

HD-728

1 KG grinding capacity
https://www.earth-chain.com/web/image/product.template/100/image_1920?unique=272bccc

Magnetic polishing machine

    This combination does not exist.


    Feature:

    * Max grinding capacity: About 1kg parts at a time.
    * Max grinding area: Ø260 mm.
      * Can place one grinding tank with Ø260 x 270mm size. (The tank is a standard accessory.)
      * Can place smaller containers with different sizes or shapes.

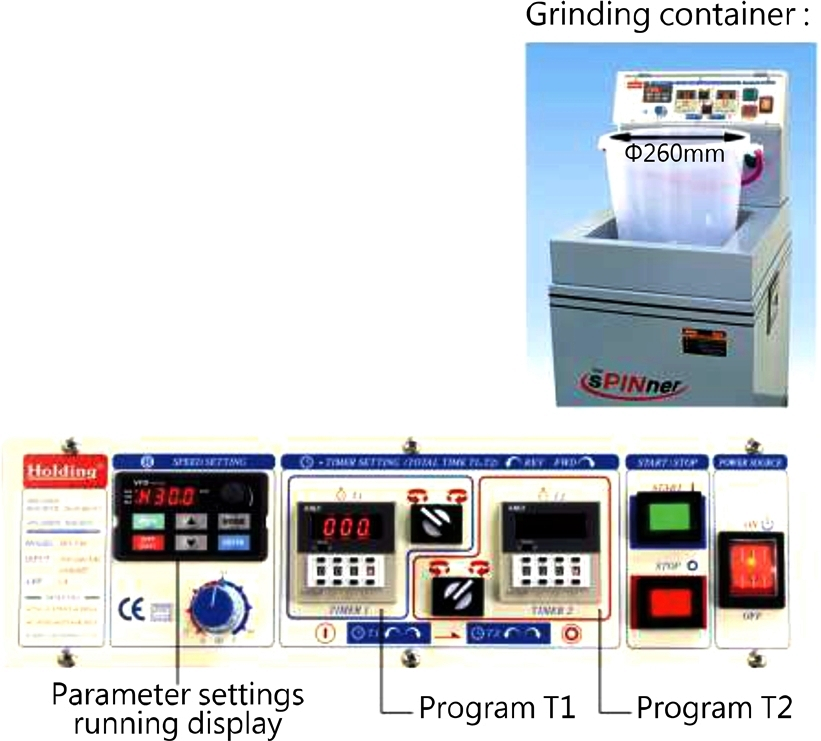

    * 2-stage grinding programs with independent adjustment functions for grinding time and rotation direction.
    * One set of grinding force adjustment function.


    MODEL DIMENSION(L X W X H) CONTAINER SIZE(LxH) POWER  WEIGHT
    HD-728  410×530×970 mm  Ø260×270mm Single phase AC 220V(50/60HZ) 65 KG
    MODEL Max. processing capacity(Reference Value) STANDARD ACCESSORIES
    HD-728  copper、stainless steel、aluminum、 zinc(non-magnetic material)  1 KG

    1.Stainless pins/2KG(Standard Dimension)
    2.Plastic container/2 set
    3.Separating container/1set
    4.Magnetic sleeve/1set
    5.Grinding liquid/(2,000c.c)
    6.Operation manual

    iron、steel、stainless steel ( magnetic material) 0.5 KG
