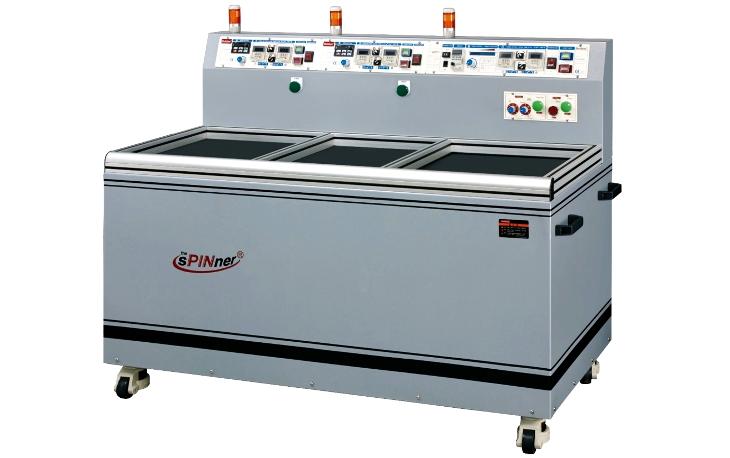

HD-7335

9 KG grinding capacity (Triple Spindle & multifunction)
https://www.earth-chain.com/web/image/product.template/107/image_1920?unique=39367fa

Magnetic polishing machine

    This combination does not exist.




    Feature:

    * Patented triple spindle structure, multi-grinding mode selection, up to the mass production, most convenient, effort.

    * Triple spindle, independent three machines easily operate by one person.

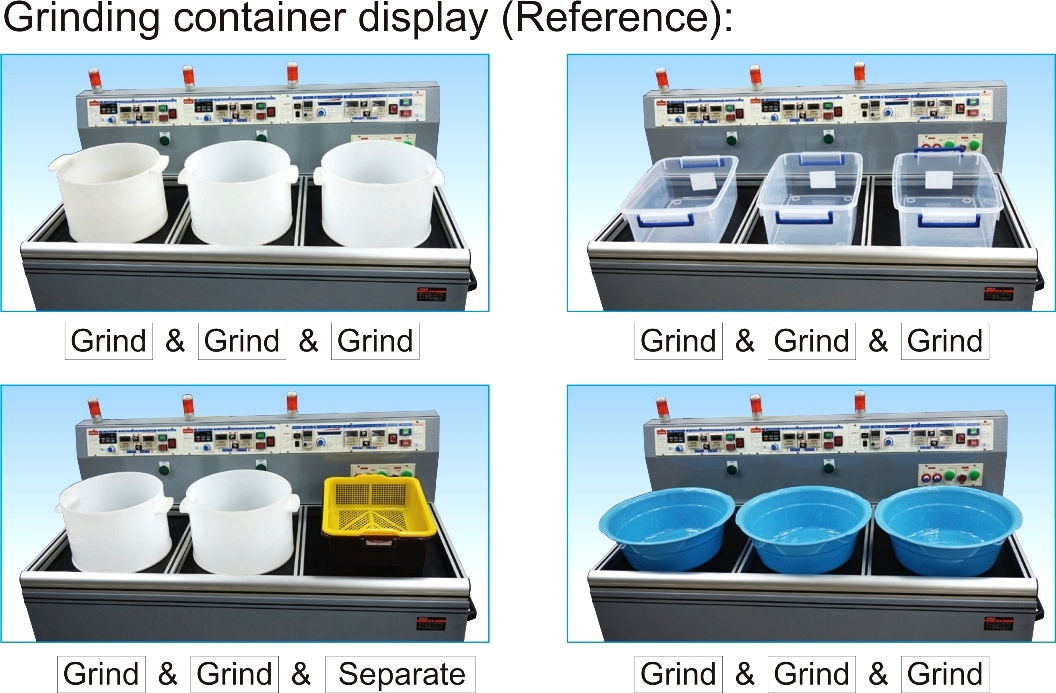

    * Multi functional to change different grinding method.

    * Grinding and separating magnetic pins and workpiece in one machine.

    * Grinding capacity about 3 kg workpieces. 3 barrel is approximately 9 KG.

    * Grinding container sizes Ø350x250mm. The weight and operation is suit for one person.

    * The machine is suitable for production of many small parts, with the automation of the production process planning, reaching optimum productionmodel.

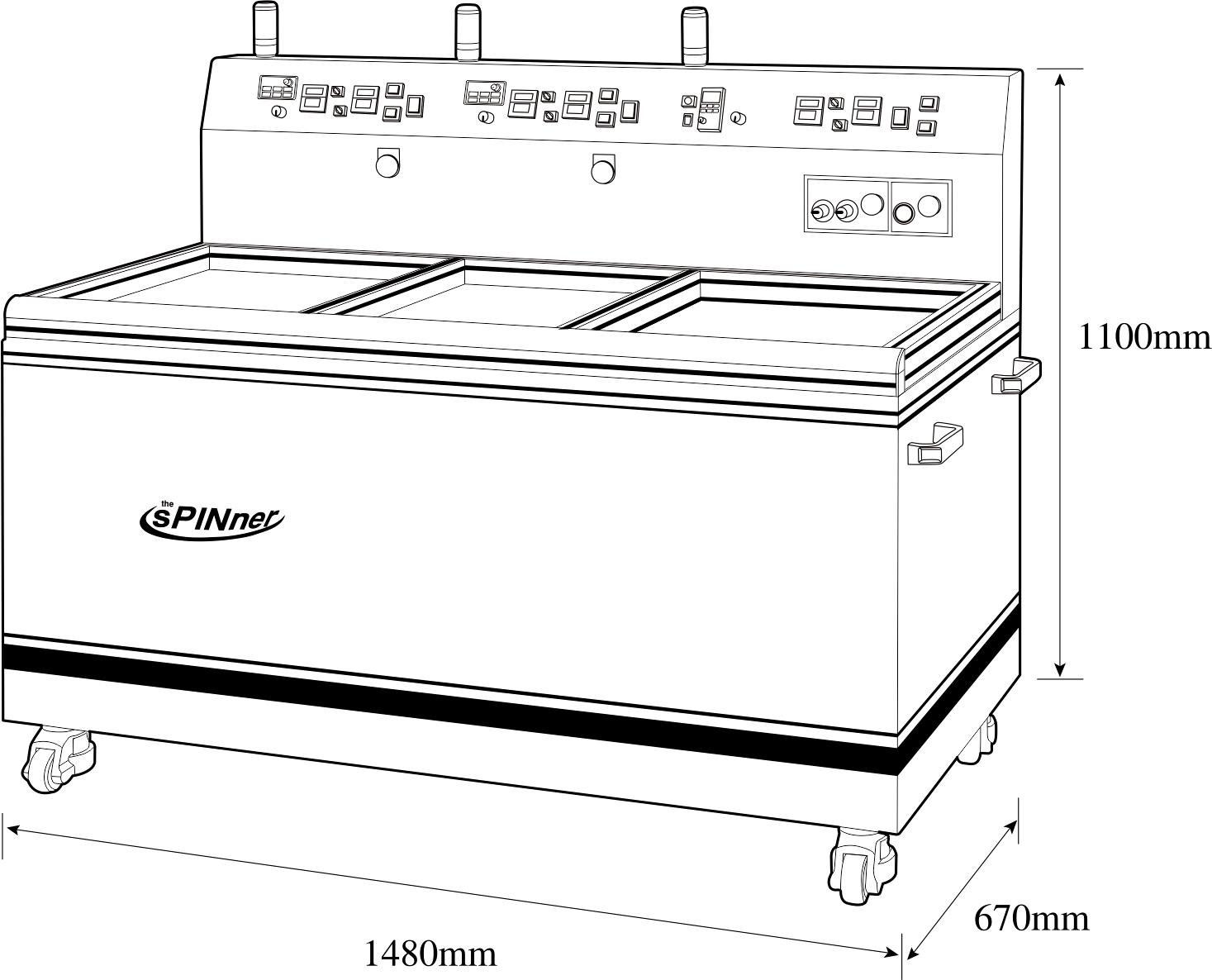

    MODEL DIMENSION(L X W X H) CONTAINER SIZE(LxH) POWER  WEIGHT
    HD-7335  1480×670×1100 mm  Ø350x250mm 3 phase 220/380VAC(50/60HZ) 500 KG
    MODEL Max. processing capacity(Reference Value) STANDARD ACCESSORIES
    HD-7335  copper、stainless steel、aluminum、 zinc(non-magnetic material)  1 Barrel = 3KG
    3 Barrel ≒9KG

    1.Stainless pins/12KG(Standard Dimension)
    2.Plastic container/6set
    3.Separating container/2set
    4.Magnetic sleeve/1set
    5.Grinding liquid/(12,000c.c)
    6.Operation manual
    iron、steel、stainless steel ( magnetic material) 1 Barrel = 1.5KG
    3 Barrel ≒4.5KG
