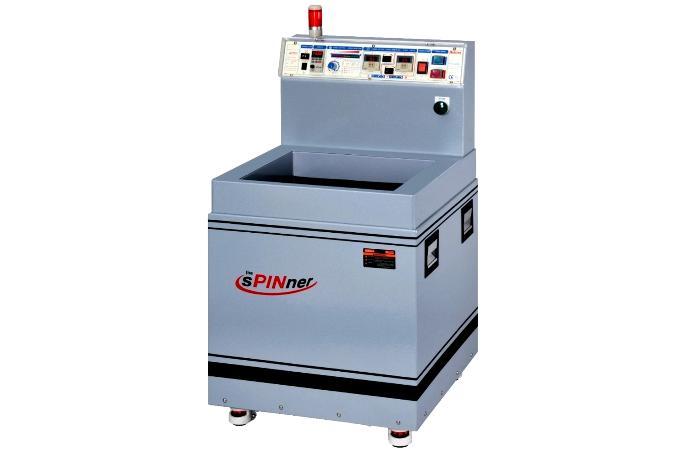

HD-735

3 KG grinding capacity
https://www.earth-chain.com/web/image/product.template/101/image_1920?unique=654bde4

Magnetic polishing machine

    This combination does not exist.




    Feature:

    * Max grinding capacity: About 3kg parts at a time.
    * Max grinding area: Ø350 mm.
       * Can place one grinding tank with Ø350 x 200mm size. (The tank is a standard accessory.)
    * 2-stage grinding programs with independent adjustment functions for grinding time and rotation direction.
    * One set of grinding force adjustment function.


    MODEL DIMENSION(L X W X H) CONTAINER SIZE(LxH) POWER  WEIGHT
    HD-735  560×630×1020 mm  Ø350×200mm Single phase AC 220V(50/60HZ) 100 KG
    MODEL Max. processing capacity(Reference Value) STANDARD ACCESSORIES
    HD-735  copper、stainless steel、aluminum、 zinc(non-magnetic material)  3 KG

    1.Stainless pins/4KG(Standard Dimension)
    2.Plastic container/2 set
    3.Separating container/1set
    4.Magnetic sleeve/1set
    5.Grinding liquid/(4,000c.c)
    6.Operation manual
    iron、steel、stainless steel ( magnetic material) 1.5 KG
