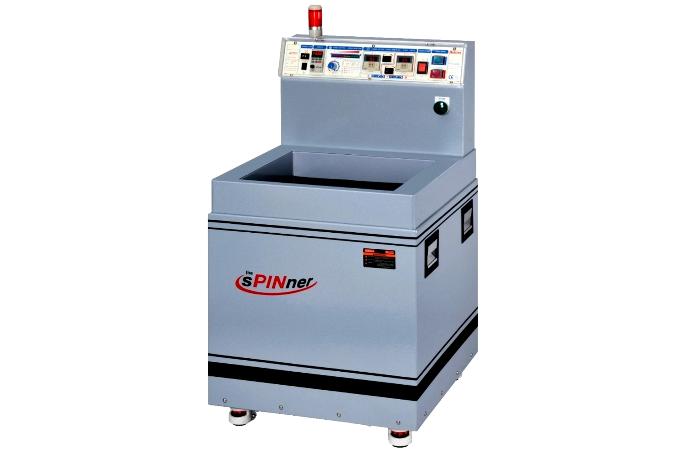

HD-735

3 KG grinding capacity
https://www.earth-chain.com/web/image/product.template/101/image_1920?unique=e911ce4

Magnetic polishing machine

    This combination does not exist.




    Feature:

    * Grinding capacity about 3kg workpiece.

    * Grinding container sizes Ø350x160mm.

    * Two kinds of grinding programmed, set speed, time, direction, set the various needs of grinding process.

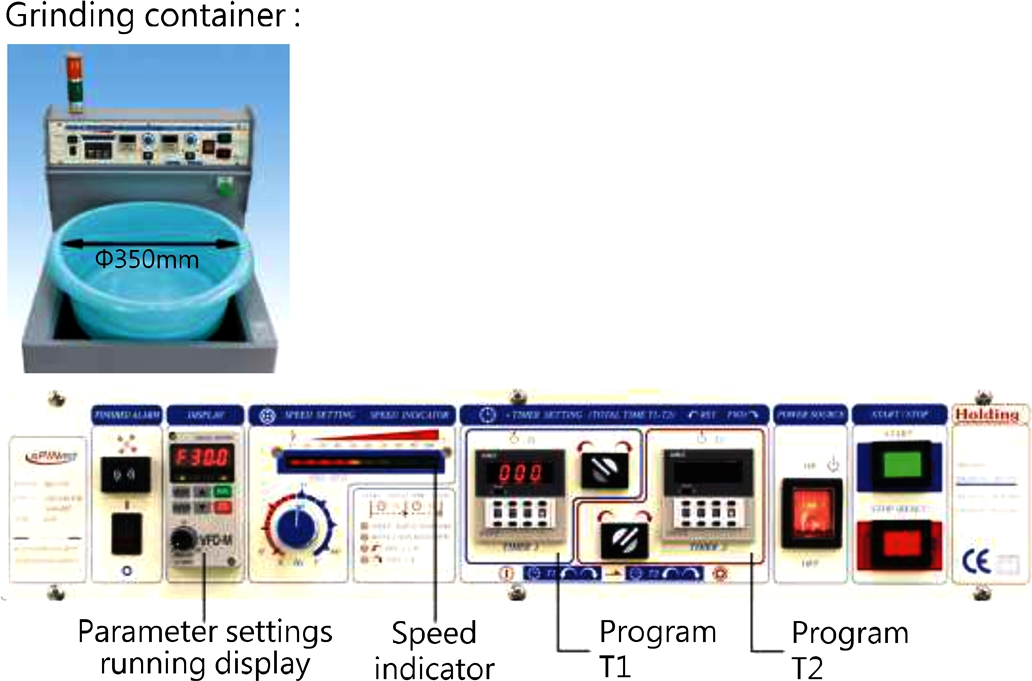

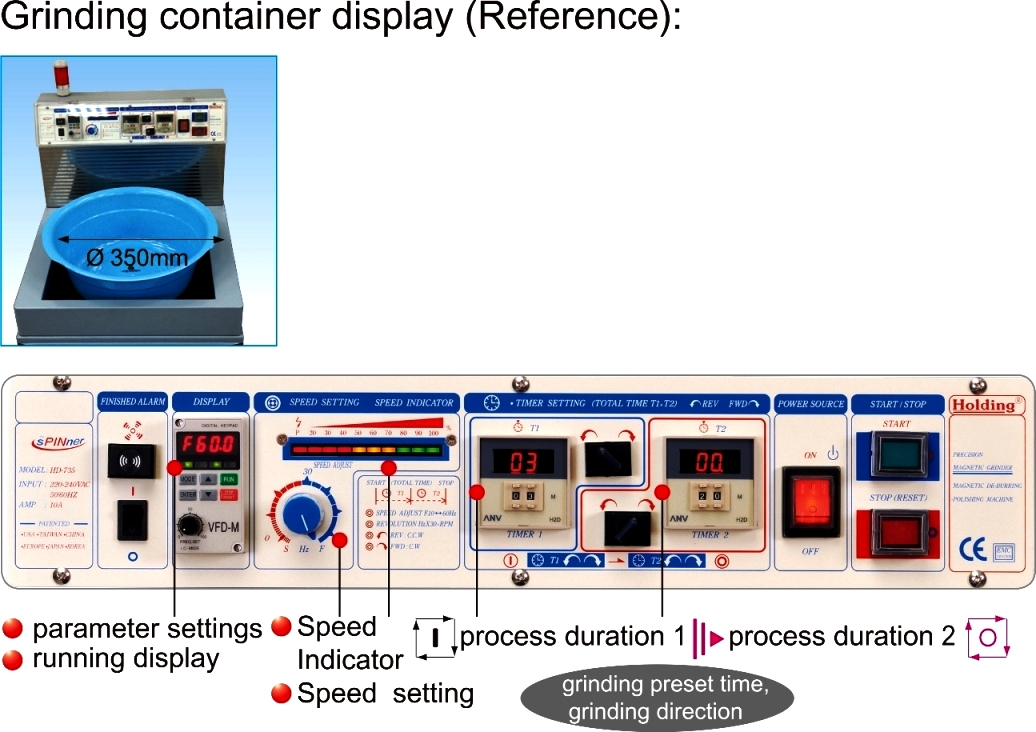

    * Grind setting display, running the display, parameter setting.

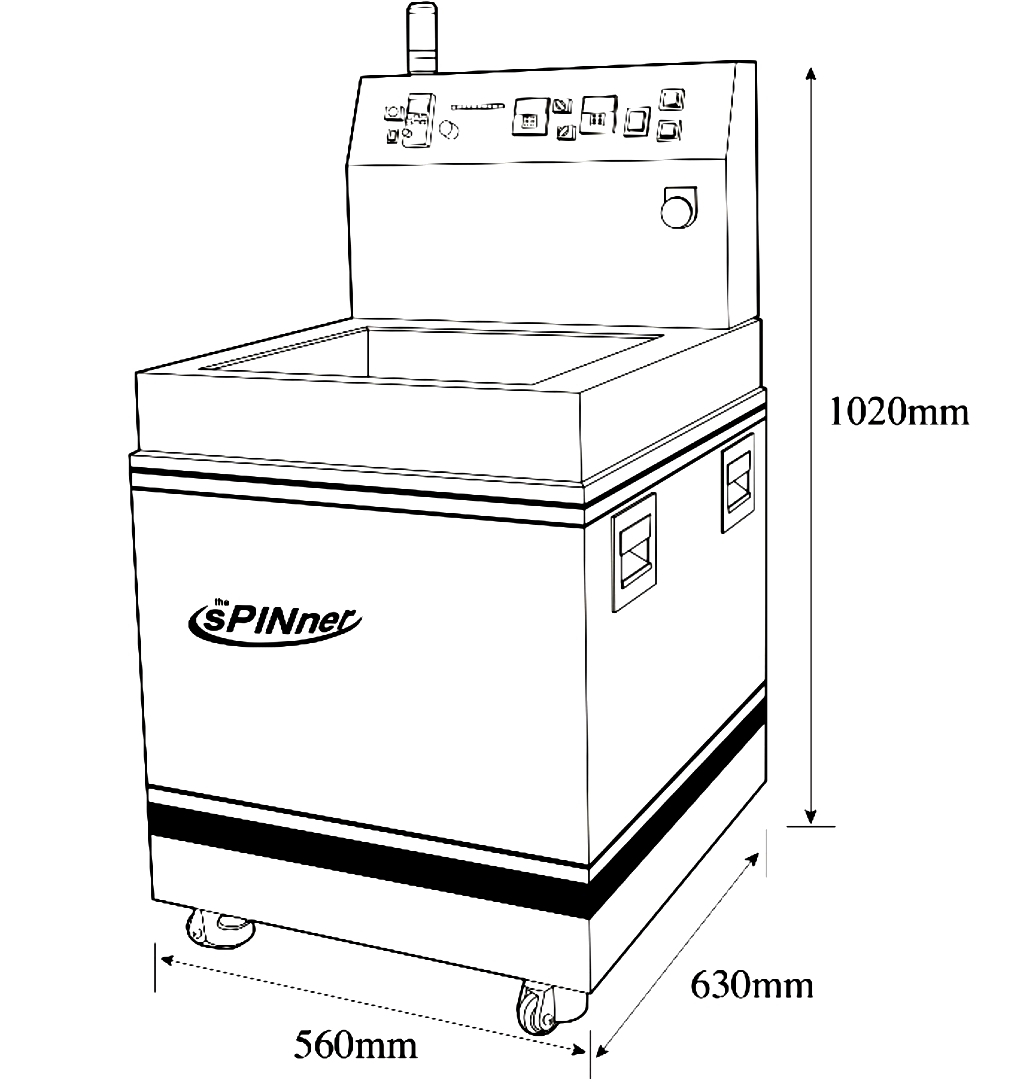

    MODEL DIMENSION(L X W X H) CONTAINER SIZE(LxH) POWER  WEIGHT
    HD-735  560×630×1020 mm  Ø350×160mm Single phase 220VAC(50/60HZ) 100 KG
    MODEL Max. processing capacity(Reference Value) STANDARD ACCESSORIES
    HD-735  copper、stainless steel、aluminum、 zinc(non-magnetic material)  3 KG

    1.Stainless pins/4KG(Standard Dimension)
    2.Plastic container/4 set
    3.Separating container/1set
    4.Magnetic sleeve/1set
    5.Grinding liquid/(4,000c.c)
    6.Operation manual
    iron、steel、stainless steel ( magnetic material) 1.5 KG
