HD-745

5 KG grinding capacity
https://www.earth-chain.com/web/image/product.template/102/image_1920?unique=a35e3a6

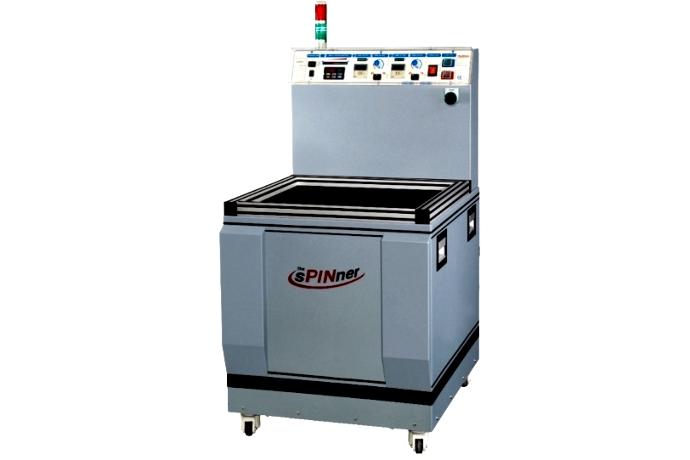

Magnetic polishing machine

    This combination does not exist.




    Feature:

    * Grinding capacity about 5kg workpiece.

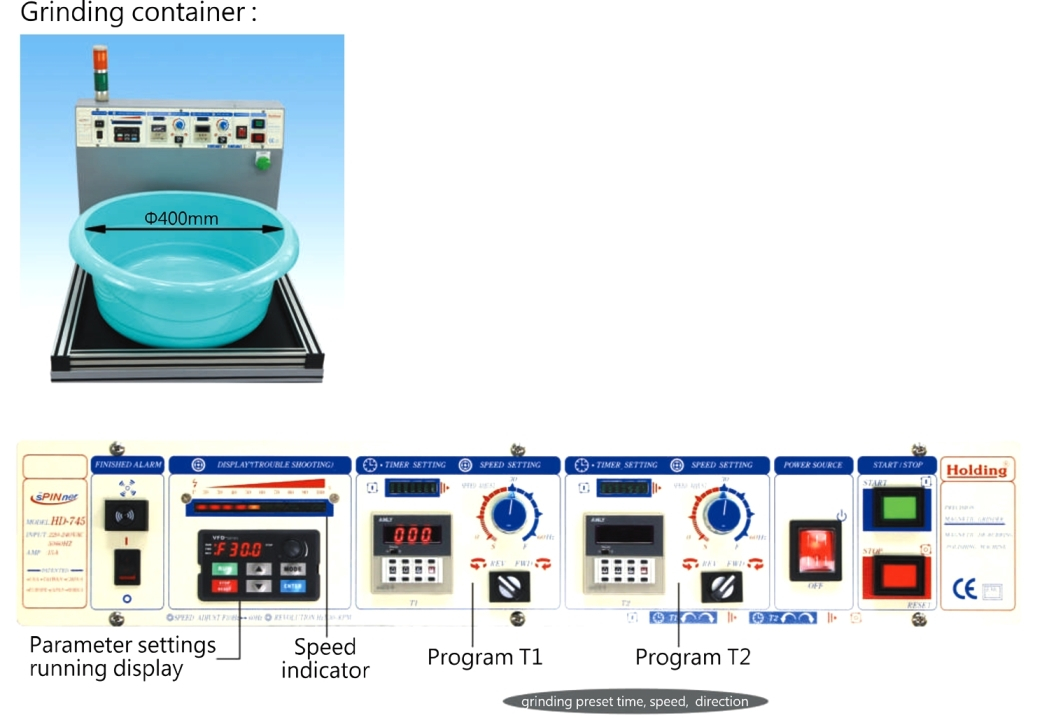

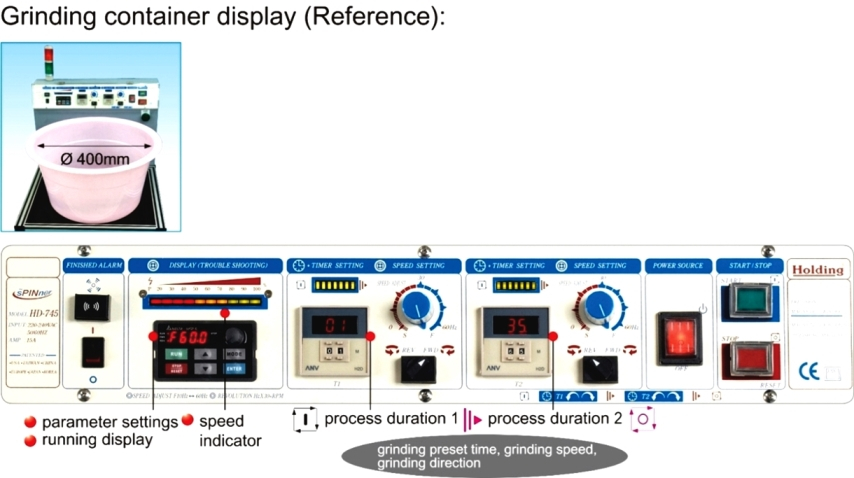

    * Grinding container sizes Ø400x300mm.

    * Two kinds of grinding programmed, set speed, time, direction, set the various needs of grinding process.

    * Grind setting display, running the display,parameter setting.

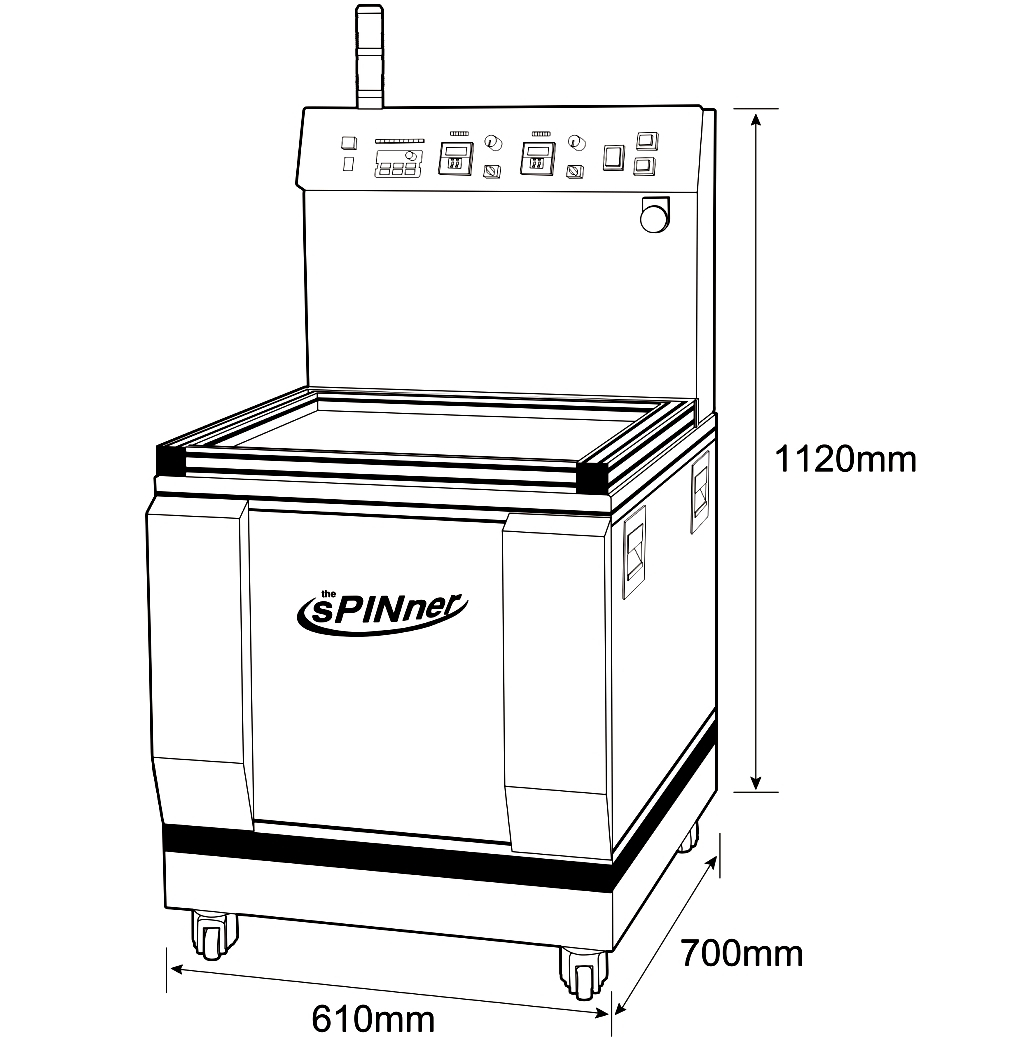

    MODEL DIMENSION(L X W X H) CONTAINER SIZE(LxH) POWER  WEIGHT
    HD-745  610×700×1120 mm  Ø400×300mm Single phase 220VAC(50/60HZ) 135 KG
    MODEL Max. processing capacity(Reference Value) STANDARD ACCESSORIES
    HD-745  copper、stainless steel、aluminum、 zinc(non-magnetic material)  5 KG

    1.Stainless pins/5KG(Standard Dimension)
    2.Plastic container/2 set
    3.Separating container/1set
    4.Magnetic sleeve/1set
    5.Grinding liquid/(5,000c.c)
    6.Operation manual
    iron、steel、stainless steel ( magnetic material) 2 KG
