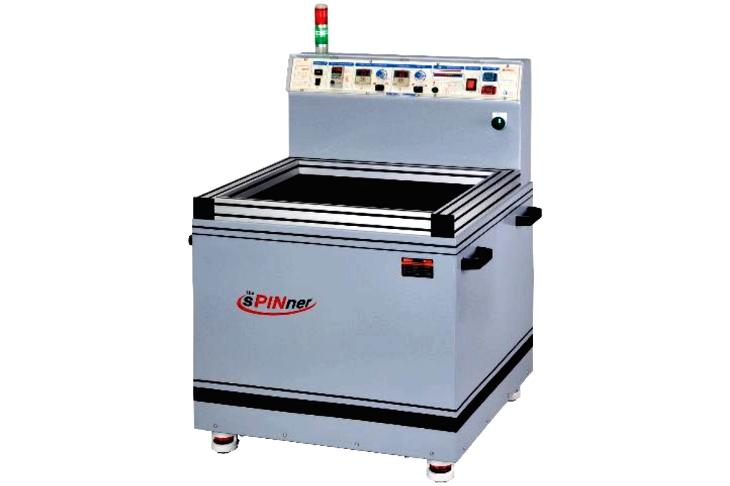

HD-750

8 KG grinding capacity
https://www.earth-chain.com/web/image/product.template/103/image_1920?unique=5dbc77a

Magnetic polishing machine

    This combination does not exist.




    Feature:

    * Grinding capacity about 8kg workpiece.

    * Large grinding container sizes Ø500x200mm.

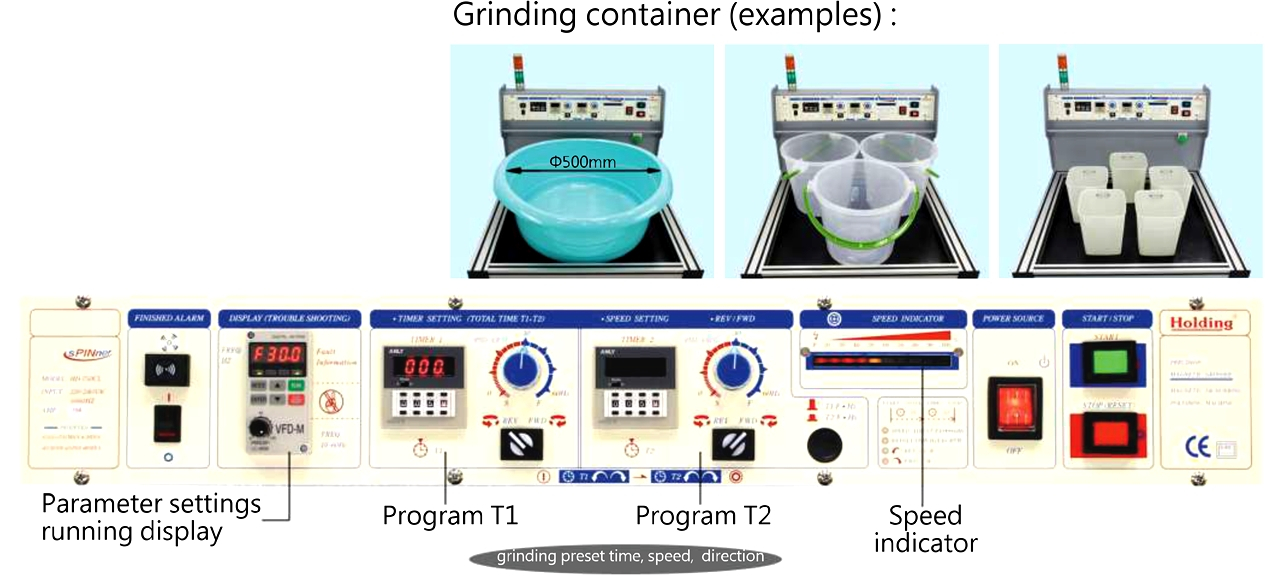

    * Two kinds of grinding programmed, set speed, time, direction, set the various needs of grinding process.

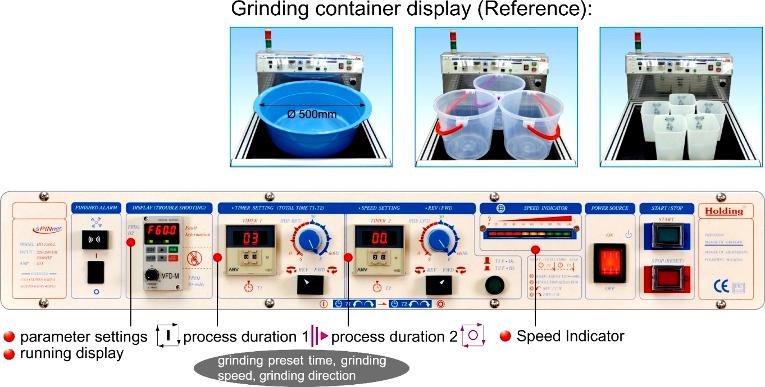

    * Grind setting display, running the display, parameter setting.

    * The grinding tank can change different sizes of container and same grinding effect.

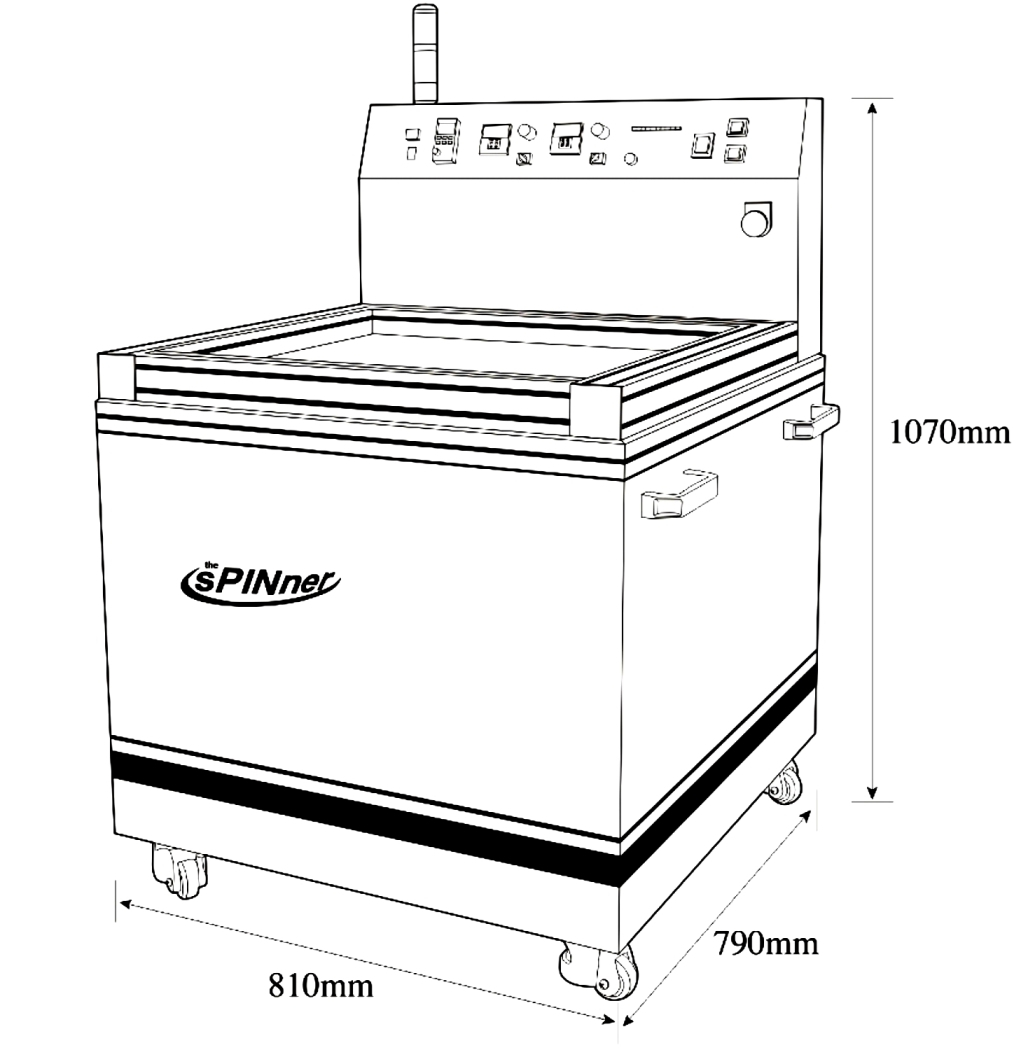

    MODEL DIMENSION(L X W X H) CONTAINER SIZE(LxH) POWER  WEIGHT
    HD-750  810×790×1070 mm  Ø500×200mm Single phase 220VAC(50/60HZ) 150 KG
    MODEL Max. processing capacity(Reference Value) STANDARD ACCESSORIES
    HD-750  copper、stainless steel、aluminum、 zinc(non-magnetic material)  8 KG

    1.Stainless pins/6KG(Standard Dimension)
    2.Plastic container/4 set
    3.Separating container/1set
    4.Magnetic sleeve/1set
    5.Grinding liquid/(6,000c.c)
    6.Operation manual
    iron、steel、stainless steel ( magnetic material) 3 KG
