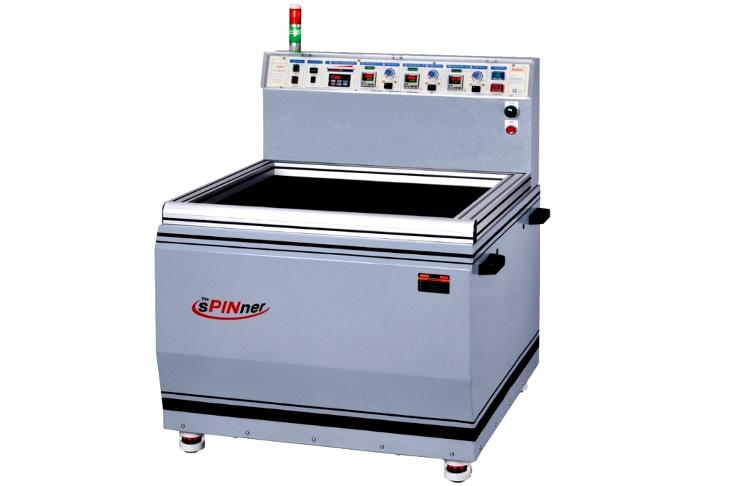

HD-765F

Powerful Model-12 KG grinding capacity
https://www.earth-chain.com/web/image/product.template/143/image_1920?unique=c45d95b

Magnetic polishing machine

    This combination does not exist.




    Feature:

    * The grinding force is upgraded. Using a high-density magnetic field, the magnetic field intensity is increased by 150~250%.
    * Increase the grinding height by 50~80%, the grinding force by 80~120%, and shorten the grinding time by 20~50%.
    * Max grinding capacity: About 12kg parts at a time.
    * Max grinding area: Ø650 mm
      * Can place one large grinding tank with Ø650 × 250 mm size. (The tank is a standard accessory)
      * Can place smaller containers with different sizes or shapes

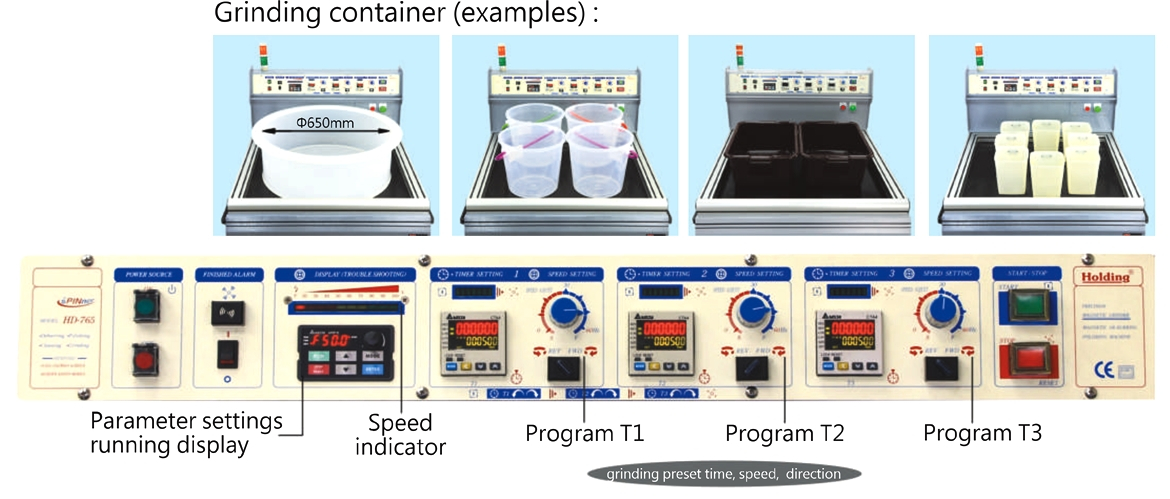

    * 3-stage grinding programs with independent adjustment functions for grinding force (speed), grinding time and rotation direction.


    MODEL DIMENSION(L X W X H) CONTAINER SIZE(ØxH) POWER  WEIGHT
    HD-765F  960×1000×1100 mm  Ø650×250mm 3 phase AC 220/380V(50/60HZ) 234 KG
    MODEL Max. processing capacity (Reference Value) STANDARD ACCESSORIES
    HD-765F  copper、stainless steel、aluminum、zinc(non-magnetic material)  12 KG

    1.Stainless pins/12KG(Standard Dimension)
    2.Plastic container/2 set />3.Separating container/1set
    4.Magnetic sleeve/1set
    5.Grinding liquid/(12,000c.c)
    6.Operation manual

    iron、steel、stainless steel( magnetic material) 5 KG
