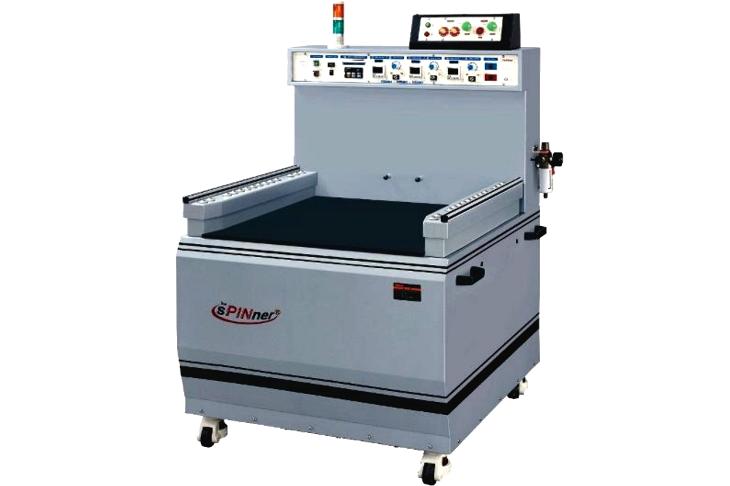

HD-768

12 KG grinding capacity
https://www.earth-chain.com/web/image/product.template/105/image_1920?unique=6e73a85

Magnetic polishing machine

    This combination does not exist.



    Feature:

    * Large grinding capacity about 12 kg workpiece.

    * Large grinding container sizes & Ø650x250mm.

    * Three kinds of grinding programmed, set speed, time, direction, set the various needs of grinding         process.

    * Grind setting display, running the display, parameter setting.

    * The grinding tank can change different sizes of container and same grinding effect.


    Special Function:

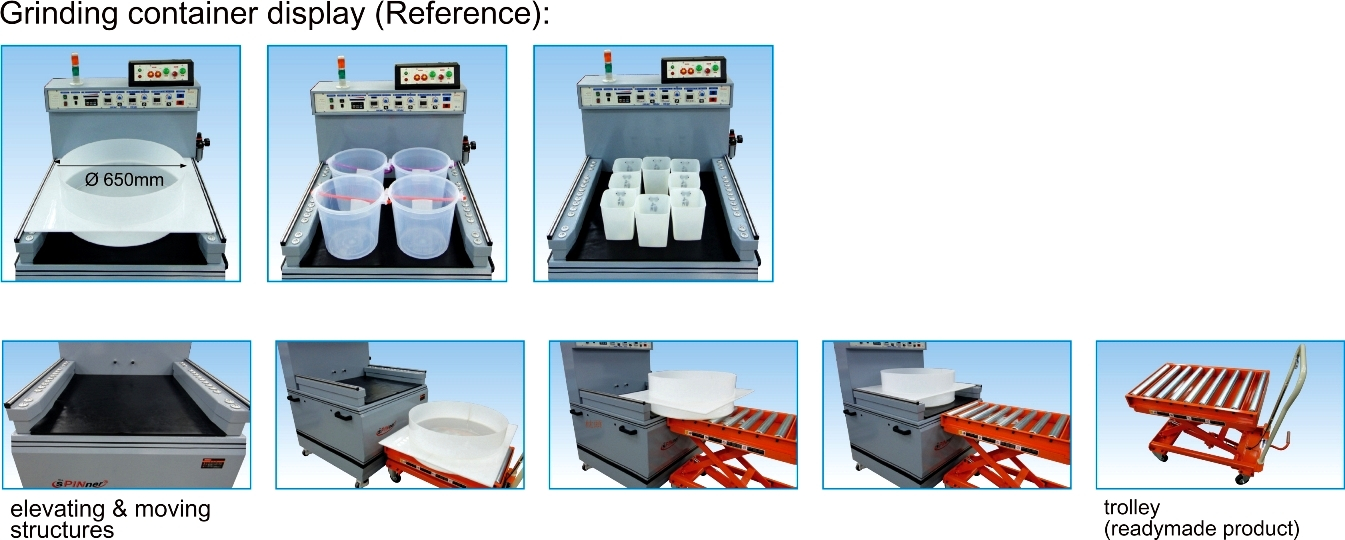

    * Automatic elevating and moving equipment can easily place a large container and operated by one   person.

    * Patented design of large grinding container lift up, down, back, forward movement, with trolley easy,   effort, fast operation.

    * Patented automatic control setting simple.

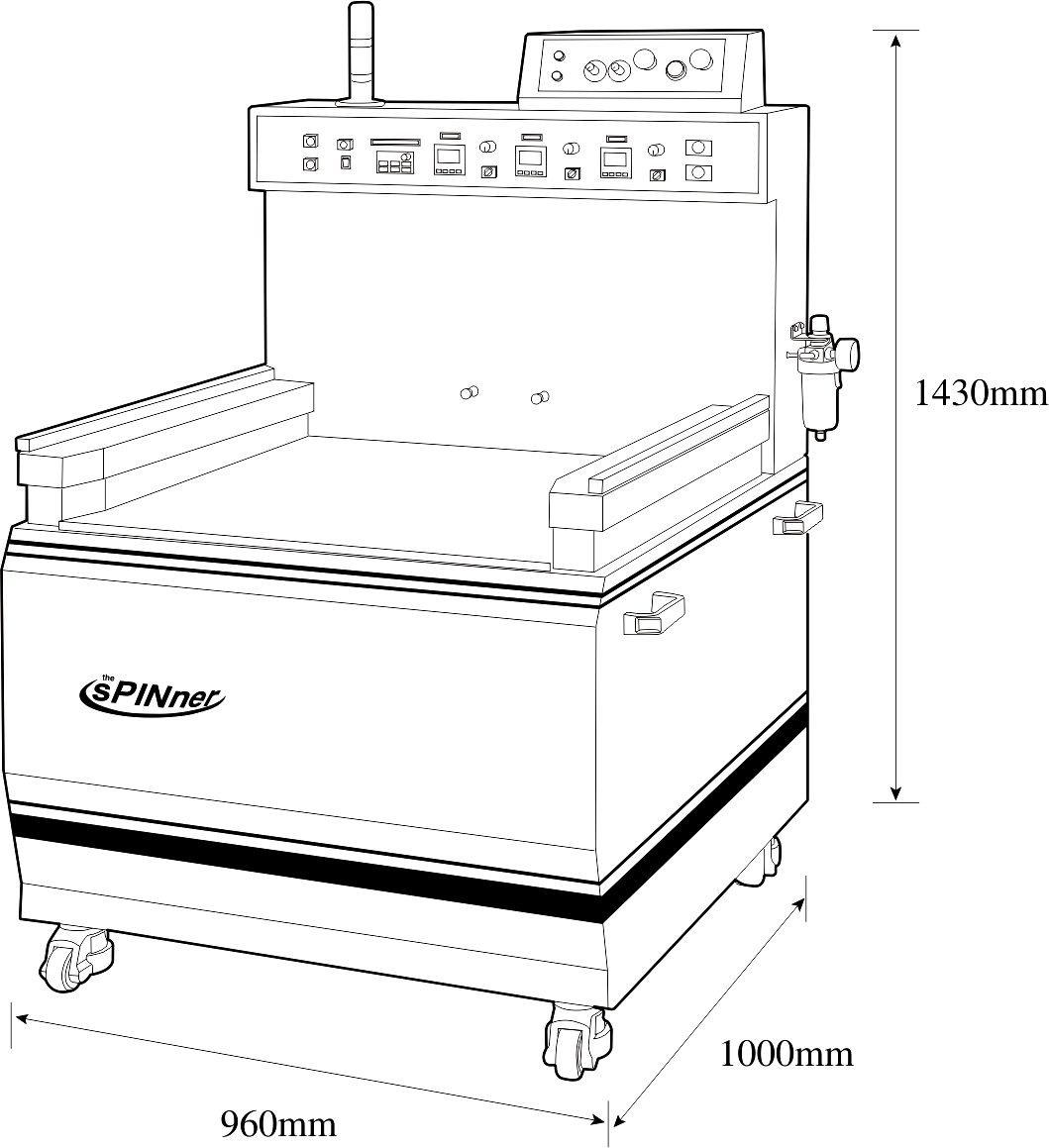

    MODEL DIMENSION(L X W X H) CONTAINER SIZE(ØxH) POWER  WEIGHT
    HD-768  960×1000×1430 mm  Ø650×250mm 3 phase 220/380VAC(50/60HZ) 250 KG
    MODEL Max. processing capacity(Reference Value) STANDARD ACCESSORIES
    HD-768  copper、stainless steel、aluminum、 zinc(non-magnetic material)  12 KG

    1.Stainless pins/12KG(Standard Dimension)
    2.Plastic container/2 set
    3.Separating container/1set
    4.Magnetic sleeve/1set
    5.Grinding liquid/(12,000c.c)
    6.Operation manual

    Trolley is additional purchase product.

    Model HD-768 have to supply
    7kg/cm² pressure air.
    iron、steel、stainless steel ( magnetic material) 5 KG
