HD-A Series

Metals applicable(Twin-spindle & Horizontally movement)
https://www.earth-chain.com/web/image/product.template/111/image_1920?unique=a703252

Magnetic polishing machine

    This combination does not exist.


    Standard Dimension


    MODEL S1 S2 S3 S4S5
    Size(Ø×mm)  Ø 0.3×5  Ø 0.4×5 Ø 0.5×5 Ø 0.7×5 Ø 0.8×5

    MODEL S6 S7 S8 S9
    Size(Ø×mm)  Ø 1.0×5  Ø 1.2×5 Ø 1.5×5 Ø 2.0×5

    Special Dimension


    MODEL S1 S2 S3 S4S5
    Size(Ø×mm)  Ø 0.2×5  Ø 0.3×3 Ø 0.4×3 Ø 0.5×1 Ø 0.5×3

    MODEL S6 S7 S8 S9S10
    Size(Ø×mm)  Ø 0.7×3  Ø 0.8×3 Ø 1.0×1 Ø 1.0×3 Ø 1.2×3

    A special corner angle


    MODEL (—) A1 A2 A3 A4
    Size(Ø×mm)  Ø 1.0×7(45°)  Ø 1.0×10(45°) Ø 1.5×7(45°) Ø 1.5×10(45°)
    Function：1. Strong Cutting Force  2. Strengthen the surface atomization

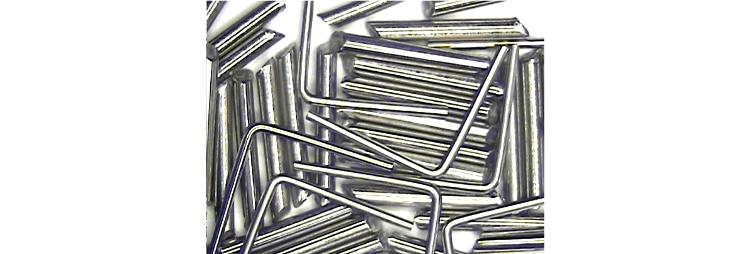

    L-standard Dimension


    MODEL (L) A1 A2 A3 A4
    Size(Ø×mm)  Ø 0.5×5×5  Ø 0.5×7×7 Ø 0.7×5×5 Ø 0.7×7×7
    Function : Prevent Pins clip into the workpiece hole

    Ceramic Pins


    MODEL SS1
    Size(Ø×mm)  Ø 3.2×9
    Function：1.Strong Cutting Force 2.Strengthen the surface atomization

    Steel Ball


    MODEL B1
    Size(Ø)  Ø 1.6 mm
    Function :Addwith Pins would strengthen the polishing effect.

    Recommended stainless steel magne

    * If pins is more rough, then the grinding capacity is more powerful. Therefore, when choose the pins, the material hardness of   workpiece will decide the pins. Stainless steel or iron materials can choose pins specification more than Ø0.5, and for copper and aluminum material of softness, the specification of pins adopts less than Ø0.5.

    * The rough or fine stainless steel pins will decide the size of bore for work piece. Besides, when grinding the seam inside the hole for work piece, we recommend you to use of pins with 3mm length for better effect.

    * Grinding material of stainless steel is permanent material available for continuous use, a special magnetic pins, can be customer-made on special request. The thickness of the pins has varying degrees of effectiveness on grinding surface, and select the acute angle of the pins if the surface of atomization effect is required, however, select a round magnetic pins if the surface of bright effect is required.
