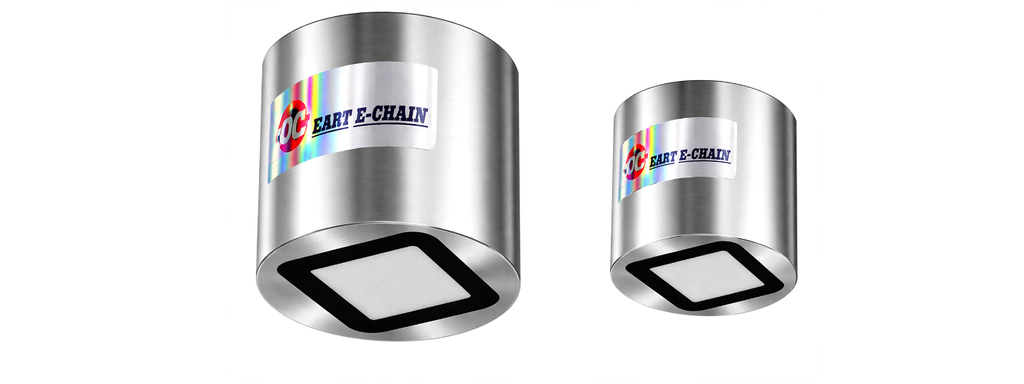

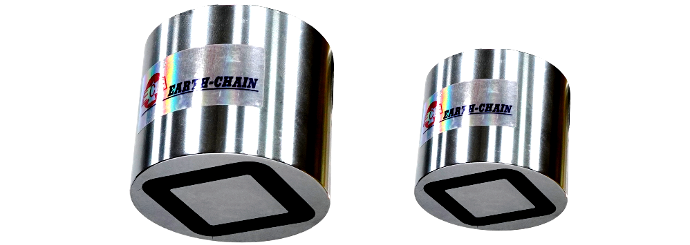

PECM SERIES

Electro Permanent Magnet
https://www.earth-chain.com/web/image/product.template/64/image_1920?unique=0ac9c1b

Suitable to be used with

Automatic Robotic Arm clamping

    This combination does not exist.


    Applied with robot arm for automatic production & transport line of medical equipment, machine, laboratory equipment

    FeatureSpecificationPractical Case(Picture)

    Feature

    Clamping the workpiece by permanent magnetic structure. Prevent workpiece drop even power supply failure. With nature north pole magnetism, reverse to be south pole magnetism after power supply. Enable clamp & de-clamp process.

      Operation Condition:
      1. No continuous power supply longer than 30 seconds.
      2. Working enviroment temperature lower than 80 degree celsius.

    Specification

    Unit:mm

    MODEL NO.ABCELINE
    LENGTH    		VOLTAGECURRENT
    AMP    		N.W.
    kg    		MAGNETIC FORCE
    PECM-A-100 70 60 M8 60 500 24V(DC) 3 1.8 100 kgf±5%
    PECM-B-300 100 85 M10 90 500 24V(DC) 4 6.2 300 kgf±5%

    Practical Case(Picture)
