In the world of rail transportation
equipment, turnout components, and rail processing, **precision, stability, and
safety** are the top priorities for engineers and production managers.
Traditional mechanical fixtures, bolt clamping, or hydraulic systems, while
capable of securing workpieces, often face issues such as localized stress
concentration, heat deformation during long processing, low efficiency,
cumbersome operation, and safety risks. For rail workpieces, which are **long,
heavy, and uneven in rigidity**, even minor deformation or displacement can
lead to reduced machining accuracy, surface defects, or serious safety
accidents.

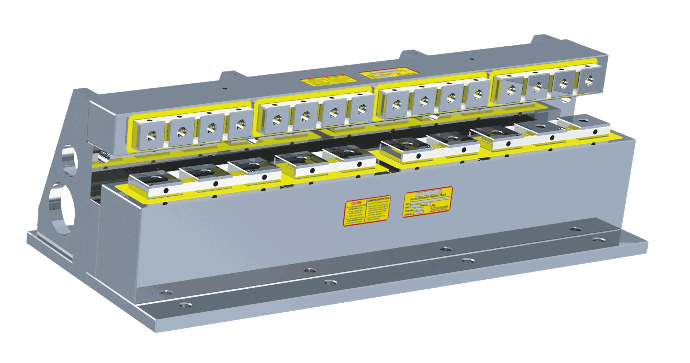

To meet the dual demands of precision and efficiency in modern rail processing, we present the **Electro-Permanent Magnetic Chuck (EEPM)**. Designed specifically for large steel workpieces, EEPM combines the **stability of permanent magnets** with the **convenience of electromagnetic control**, quickly becoming the preferred workholding solution in the rail processing industry, helping factories achieve higher machining accuracy and productivity.
1. Stable Workholding – No Deformation for Long Workpieces
Rail workpieces are often several meters long with complex cross-sections, including the rail head, web, and foot. Traditional mechanical fixtures can only secure a few points, leading to localized stress, workpiece warping, and micro-deformations that affect flatness and straightness.

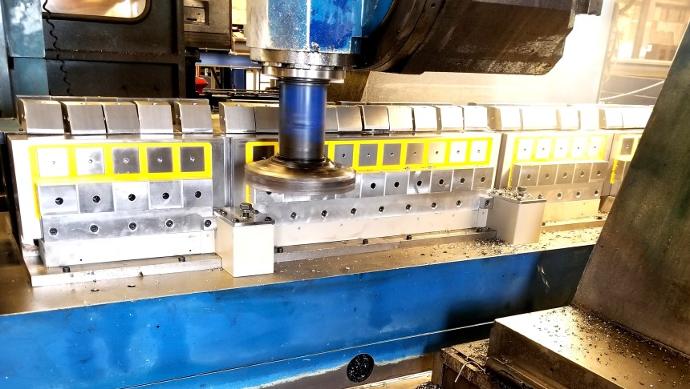

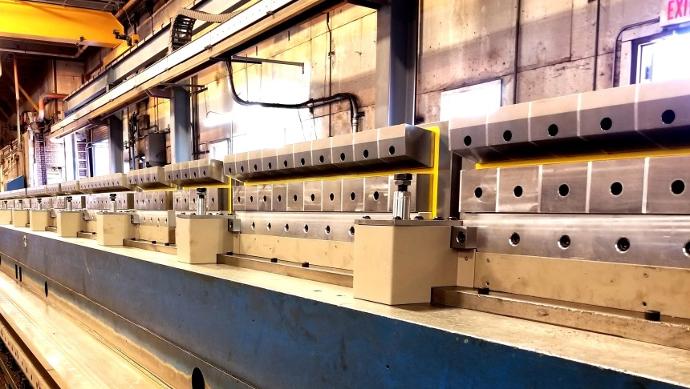

The **EEPM** distributes a strong and uniform magnetic force across a large area, providing stable clamping. Even rails several meters long and weighing hundreds of kilograms can be firmly held on the machine table, ensuring absolute stability throughout the machining process and providing a reliable foundation for precision work.
2. Low Thermal Deformation – High Precision Machining Without Worry
Thermal deformation is a major factor in accuracy loss during long-distance rail grinding or milling. Traditional electromagnetic chucks require continuous power, causing coil heating that results in thermal expansion of both the workpiece and the table, ultimately affecting flatness and dimensional stability.
The **EEPM** operates in a “momentary energize, hold while off” mode, requiring power for only 1–3 seconds during magnetization or demagnetization, with no heat generation during normal operation. This ensures that even during long machining cycles, rails maintain flatness, straightness, and high precision, providing consistently reliable results.
3. Safe and Reliable – Holds Workpieces Even During Power Loss
Rail workpieces can weigh hundreds of kilograms to several tons. If they were to become loose during machining, the results could be catastrophic for both equipment and personnel.
The **EEPM**, powered by permanent magnets, retains full magnetic force even if power is lost, keeping workpieces securely fixed on the machine table. Compared to traditional electromagnetic chucks, EEPM provides greater safety and reliability, giving operators peace of mind and ensuring a stable production process.
4. Full Surface Support – Reduces Vibration, Improves Surface Quality
Rails have complex cross-sections, and traditional fixtures often support only part of the workpiece. This can lead to vibration, uneven tool marks, and poor surface finish.
The **EEPM** offers full-surface support, effectively reducing machining vibration, keeping rail contact surfaces smooth and flat, significantly improving grinding and milling surface quality, and extending the lifespan of tools and grinding wheels.
5. Fast Setup – Efficient Automation
Traditional fixtures require bolt adjustments or hydraulic systems, which take time and reduce efficiency.
The **EEPM** magnetizes and demagnetizes in just a few seconds, with simple operation and quick loading/unloading. It seamlessly supports automated production lines, improving productivity for both high-volume and small-batch production while reducing labor costs.
6. Energy-Saving and Low Maintenance
The EEPM only consumes power during magnetization or demagnetization, remaining completely energy-free during normal operation, significantly reducing electricity costs. No cooling systems or continuous monitoring are required, and the internal permanent magnets have a long service life and minimal maintenance needs. For factories with long, continuous rail processing operations, EEPM is the **ideal energy-efficient, high-performance, and low-maintenance workholding solution**.
Summary – The Ultimate Workholding Solution for Rail Processing
*Large-area, stable magnetic force: Suitable for rails several meters long and hundreds of kilograms in weight
*Low thermal deformation: Maintains precision during long processing
*Power-off holding: Safe and reliable, eliminates the risk of workpiece drop
*Vibration reduction and surface quality improvement: Extends tool life
*Quick setup and automation-ready: Significantly improves productivity
*Energy-saving and low maintenance: Reduces operational costs

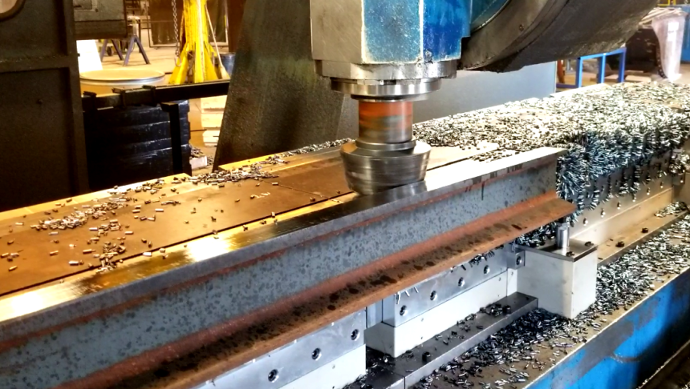

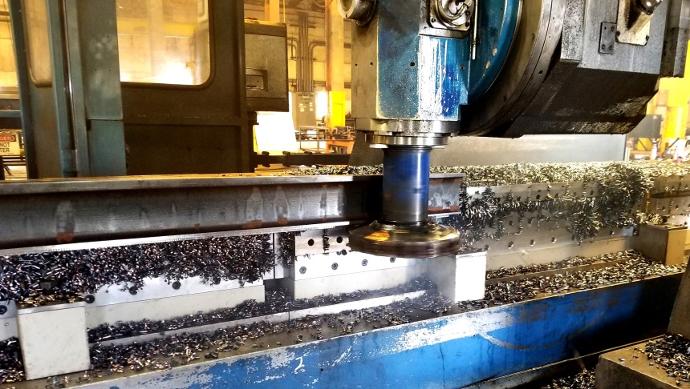

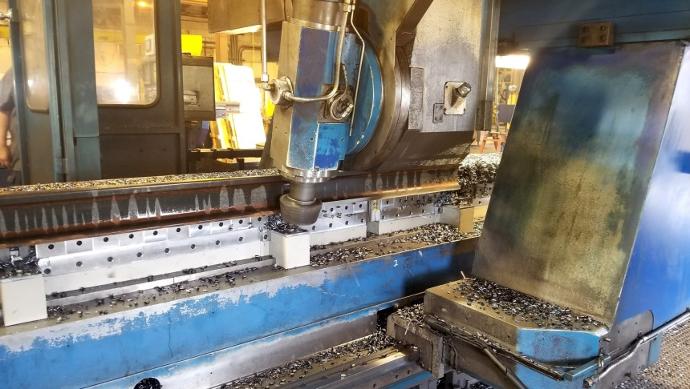

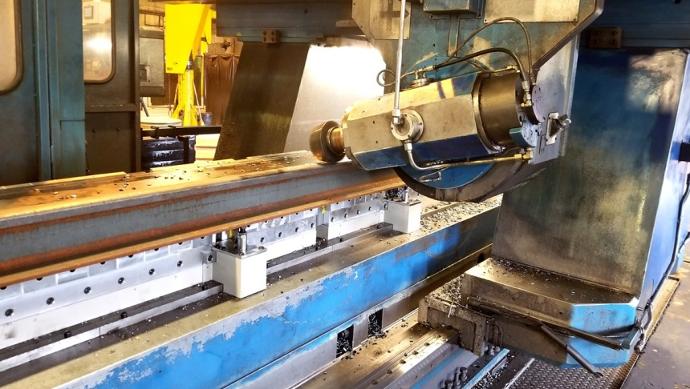

Whether
for rail grinding, milling, end-face processing, or groove machining, the
**EEPM** is the core workholding solution to enhance machining accuracy,
efficiency, and safety. Choose EEPM to ensure every rail is secure, precise,
and reliable, making it the perfect partner for smart factories and modern rail
production lines.
