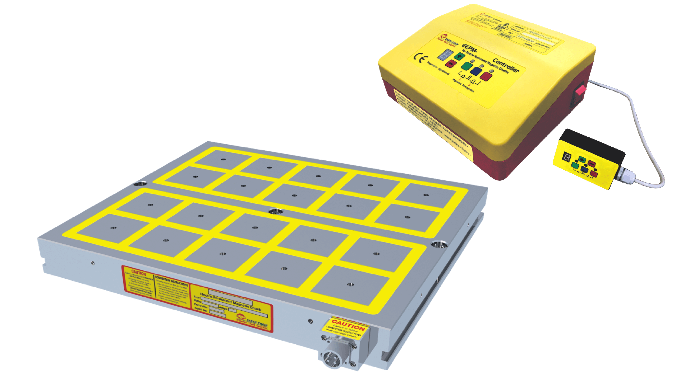

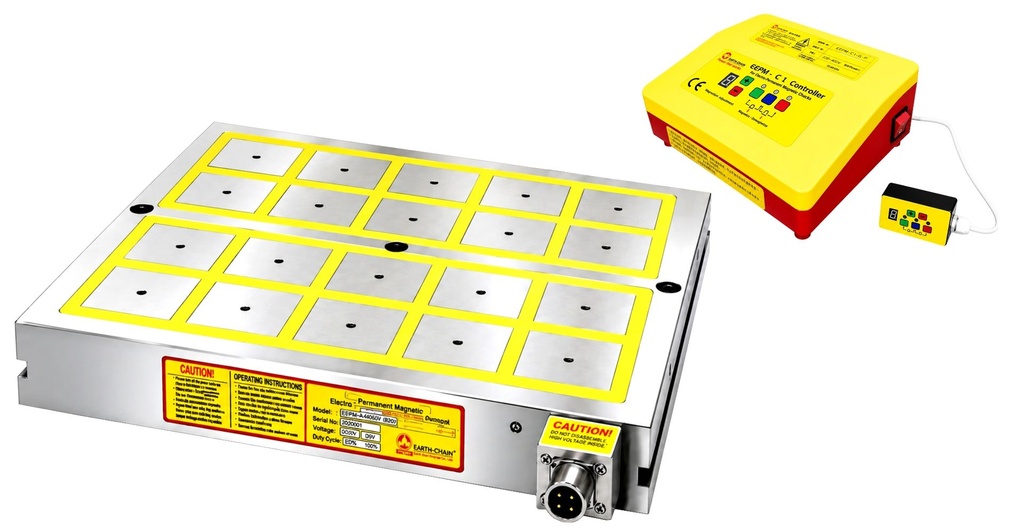

Feature
Pole 92X92 mm, Flux Line 50 mm, Magnetic Force 4800±5% kgf/4 Poles
- 1-6 seconds control for power ON & OFF. No electric power supply required to keep magnetic chuck ON and provides maximized safety in case of power failure. Never get temperatures to affect the accuracy of workpieces.
- With 8 Magnetic levels for different workpiece size and application to avoid sticking the iron chip.
- Capable for 5 sides machining and un-obstructed cutter movement during machining. Allow workpiece machining finished in one cycle, while still achieving best machining accuracy and highly increased working efficiency.
- Easy and convenient to clamp a workpiece, shortens clamping time.
- Minimum size of workpiece required as 4 alternate magnetic square poles and above contacts is necessary for optimum clamping.
- More functions for cooperate with Induction Block and Spring Block. (See the detail of Option Accessories)
Specification
Unit:mm
