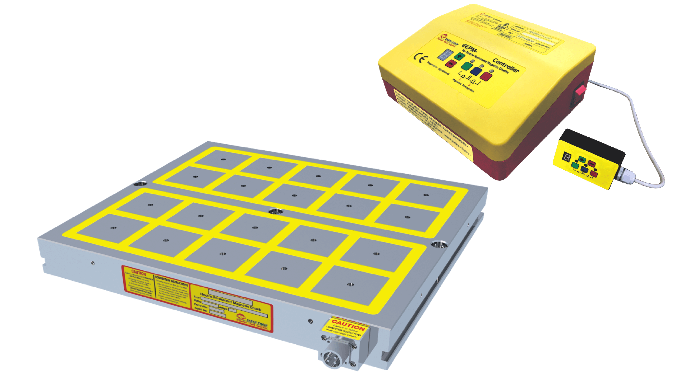

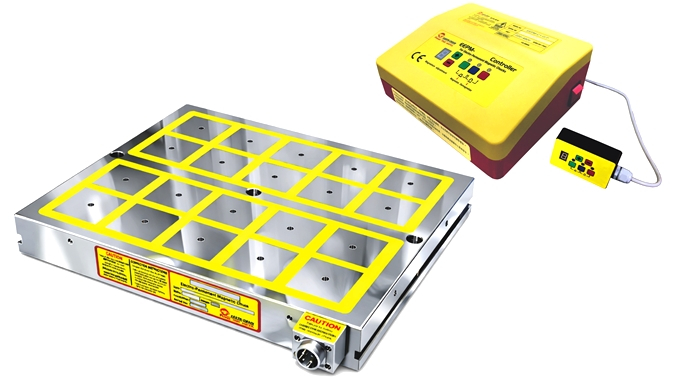

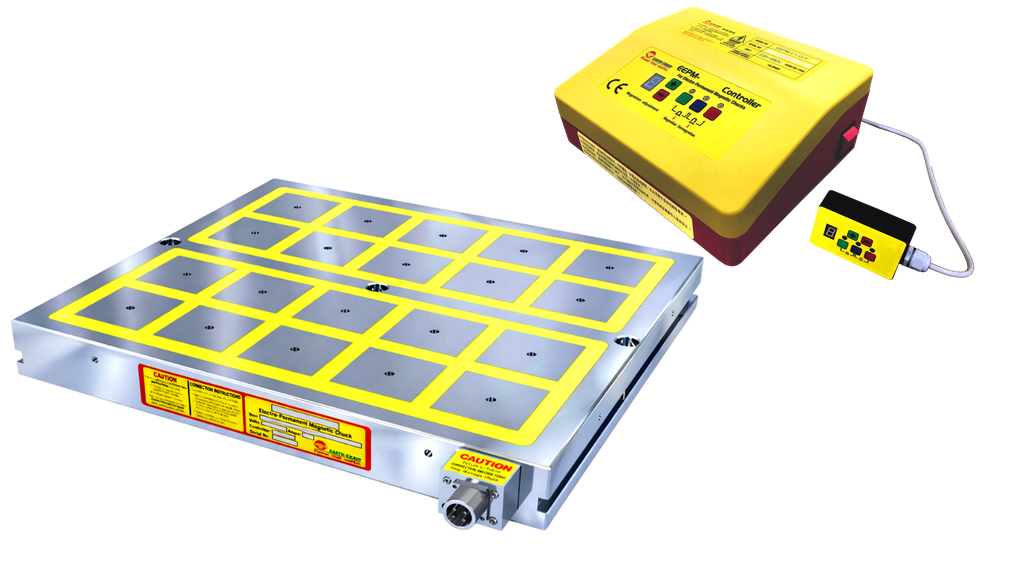

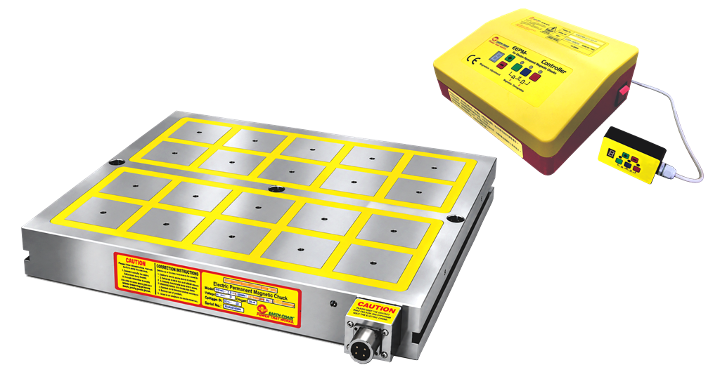

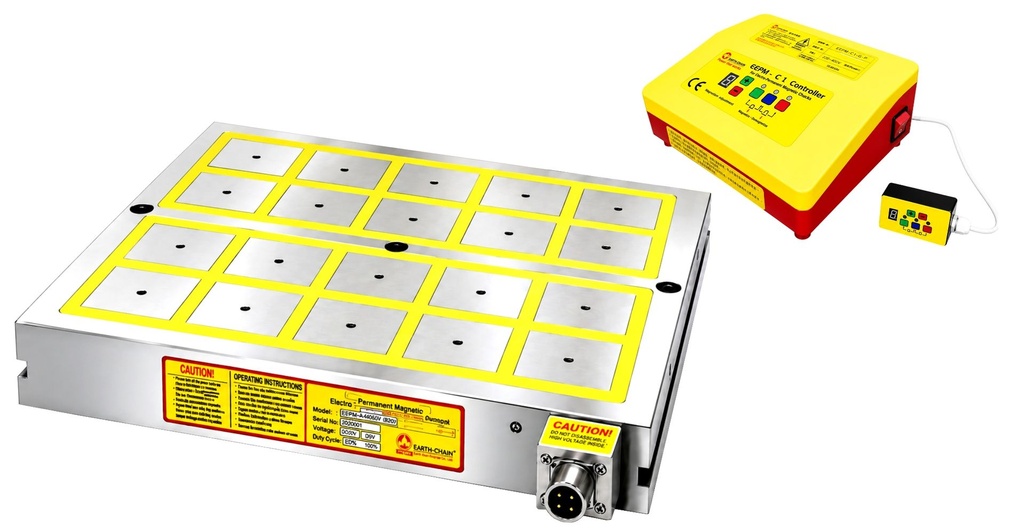

EEPM-E Series

Suitable for large and high-thickness workpiece
https://www.earth-chain.com/web/image/product.template/19/image_1920?unique=272bccc

Electro-Permanent Magnetic Chuck


    This combination does not exist.


    The EEPM-E Electro-Permanent Magnetic chuck is designed for large workpiece machining. It features 1–6 seconds magnetization and demagnetization, requires no continuous power supply, and produces no heat, ensuring machining accuracy is not affected. When used with flux-conducting soft jaws, it enables five-sided machining, significantly improving overall productivity and reducing repeated positioning tolerances to meet precision requirements.

    FeatureSpecificationPractical Case(Picture)

    Feature

    Pole 92X92 mm, Flux Line 50 mm, Magnetic Force 4800±5% kgf/4 Poles
    • 1-6 seconds control for power ON & OFF. No electric power supply required to keep magnetic chuck ON and provides maximized safety in case of power failure. Never get temperatures to affect the accuracy of workpieces.
    • With 8 Magnetic levels for different workpiece size and application to avoid sticking the iron chip.
    • Capable for 5 sides machining and un-obstructed cutter movement during machining. Allow workpiece machining finished in one cycle, while still achieving best machining accuracy and highly increased working efficiency.
    • Easy and convenient to clamp a workpiece, shortens clamping time.
    • Minimum size of workpiece required as 4 alternate magnetic square poles and above contacts is necessary for optimum clamping.
    • More functions for cooperate with Induction Block and Spring Block. (See the detail of Option Accessories)

    Specification

    Unit:mm

    MODEL NO.DIMENSION PITCH
    G    		POLE
    P    		NO. OF
    POLE    		TOTAL HOLDING
    POWER kgf ±5%    		CHUCK
    N.W.    		VOLTAGE
    (Single Phase)    		CURRENT
    AMP    		CONTROLLER
    (included)
    W L S S1 M M1 T H
    EEPM-6060E  565 640 30 25 --  27 M10  70 20 92×92 20 24000 214kg CHUCK
    DC
    380V

    CONTROLLER
    AC
    380V
    /
    440V    		 24A  C2-B
    EEPM-60100E  565 1025 30 25 29 27 32 38400 343kg  13A  C4-B
    EEPM-60120E  565 1250 30 25 30 27 40 48000 418kg  24A  C4-B
    EEPM-8080E  790 800 30 25 28 28 36 43200 374kg  26A  C4-B
    EEPM-80100E  790 1025 30 25 29 28 48 57600 480kg  19A  C4-B
    EEPM-80120E  790 1250 30 25 30 28 60 72000 585kg  15A  C8-B
    Unit:mm

    6060E

    60100E

    60120E

    8080E

    80100E

    80120E

    將其替換為您自己的 HTML 代碼

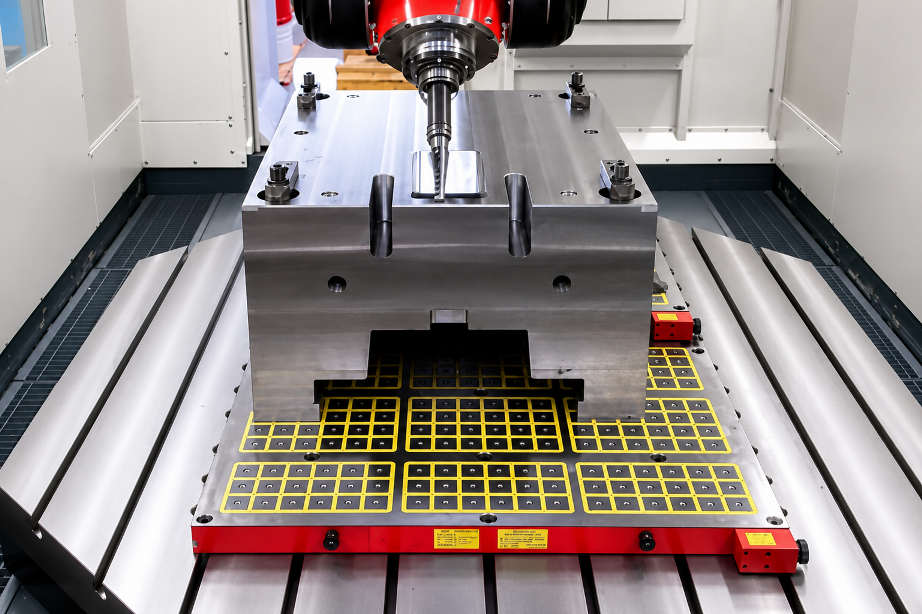

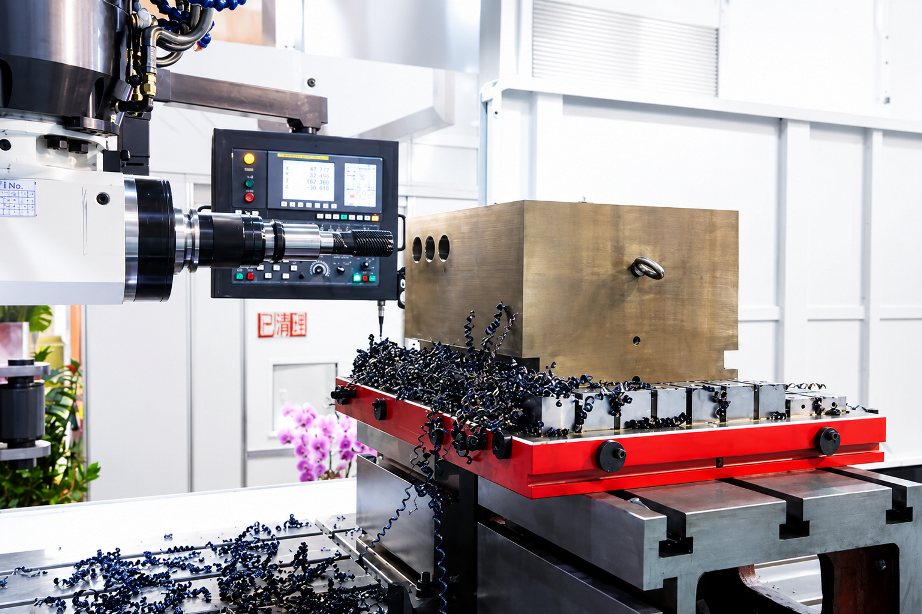

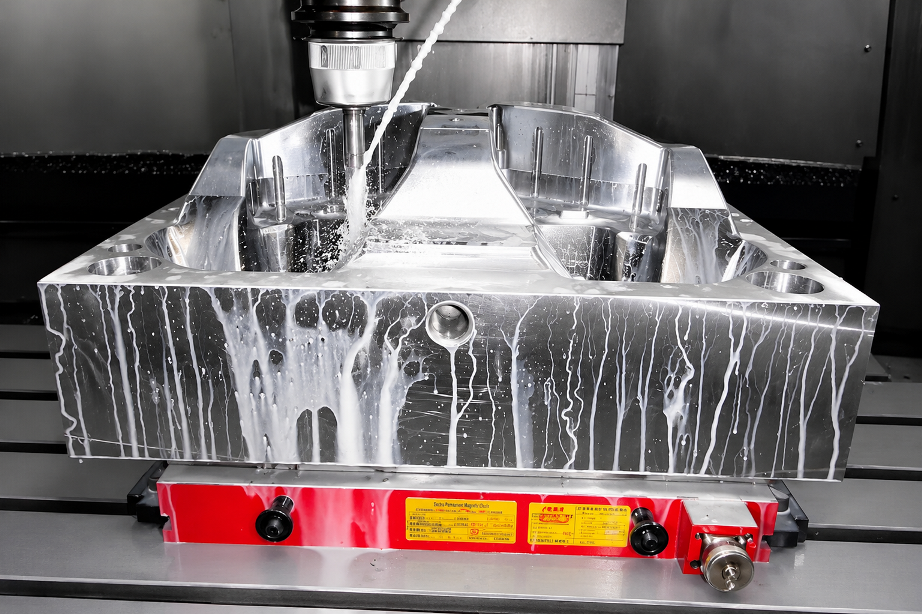

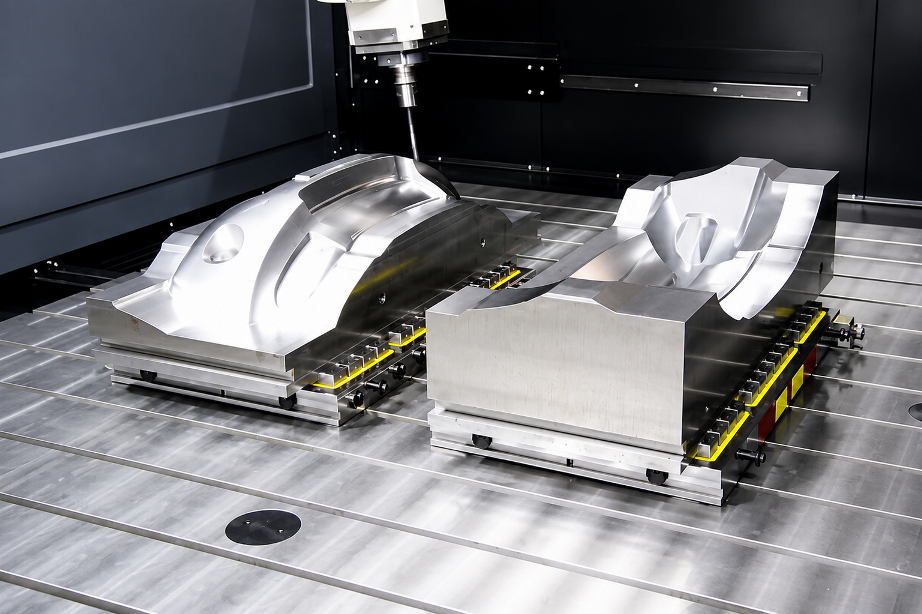

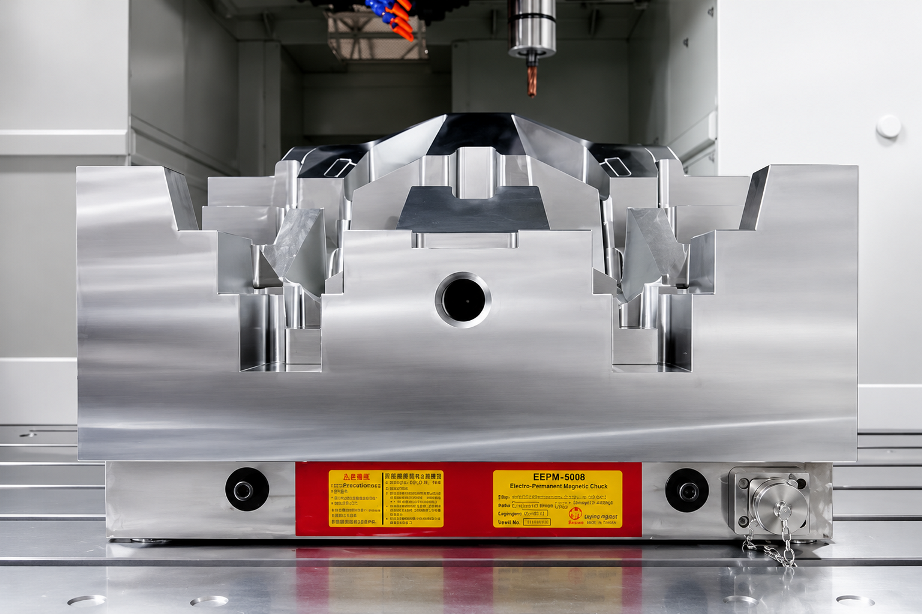

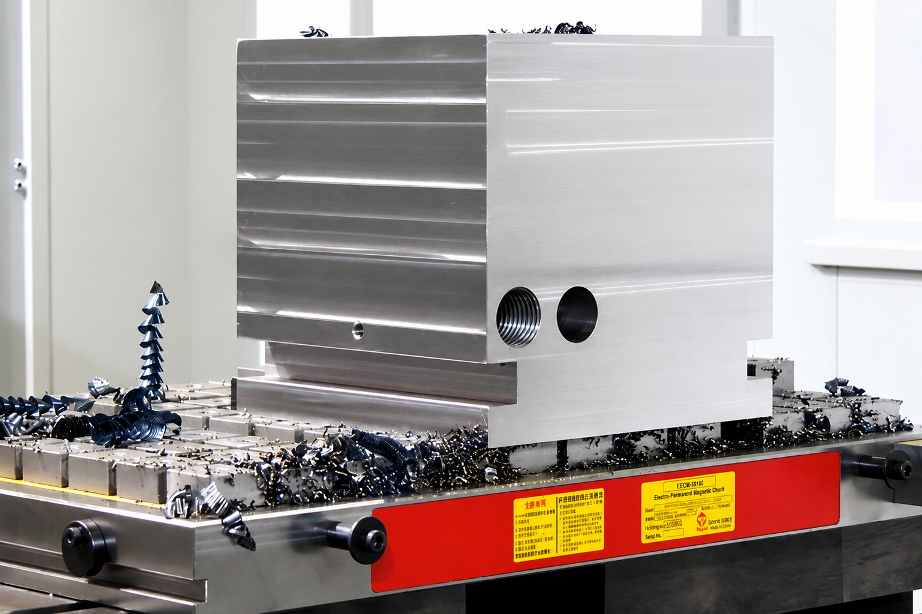

    Practical Case(Picture)
