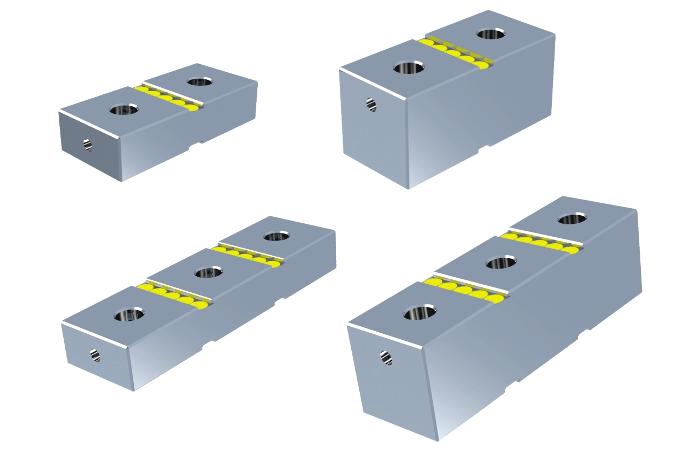

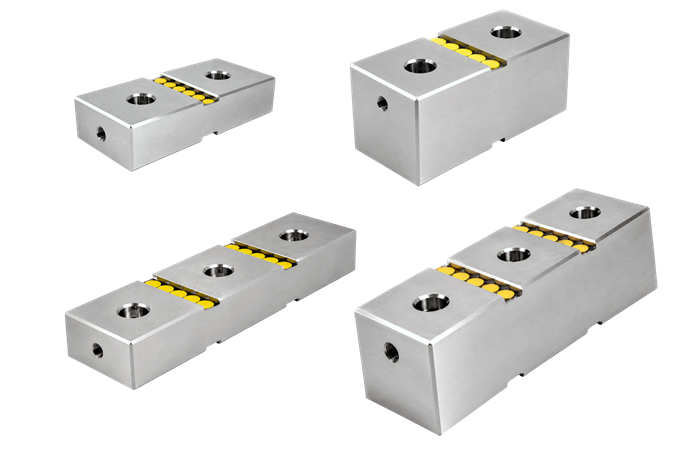

Discover the EEPM-IB Series Spring Block for Enhanced Magnetic Workholding

Feature

Induction Block EEPM-IB series are use with EEPM chucks, can be increased to more functions on workholding.
Increased using life of magnetic chuck: We suggest always use induction block to clamp workpieces, due to workpiece will not touch to the surface of chucks it can be keep chucks always be new.
Convenience and Accuracy: Induction Block are interchanging & consuming accessories, you can machining surface or forming induction blocks for the workpiece required by the machine directly, so the parallelism of induction block will always 100% match to the machine.

EEPM-IBA Suitable for use on EEPM-A Series Chucks.

Unit:mm

MODEL NO.	NO. OF POLE	W	L	HEIGHT	P	G
EEPM-IB215A	2	35	77	15	35	7
EEPM-IB315A	3	35	119	15	35	7

EEPM-IBB Suitable for use on EEPM-B Series Chucks.

Unit:mm

MODEL NO.	NO. OF POLE	W	L	HEIGHT	P	G
EEPM-IB225B	2	50	110	25	50	10
EEPM-IB325B	3	50	170	25	50	10

MODEL NO.	NO. OF POLE	W	L	HEIGHT	P	G
EEPM-IB250B	2	50	110	50	50	10
EEPM-IB350B	3	50	170	50	50	10

EEPM-IBD Suitable for use on EEPM-D Series Chucks.

Unit:mm

MODEL NO.	NO. OF POLE	W	L	HEIGHT	P	G
EEPM-IB225D	2	70	160	25	70	20
EEPM-IB325D	3	70	250	25	70	20

EEPM-IBE Suitable for use on EEPM-E Series Chucks.

Unit:mm

MODEL NO.	NO. OF POLE	W	L	HEIGHT	P	G
EEPM-IB225E	2	92	204	25	92	20
EEPM-IB325E	3	92	316	25	92	20
