EEPM-SL Series
Suitable for all size of workpiece, can be used together with mechanical clamping tools.

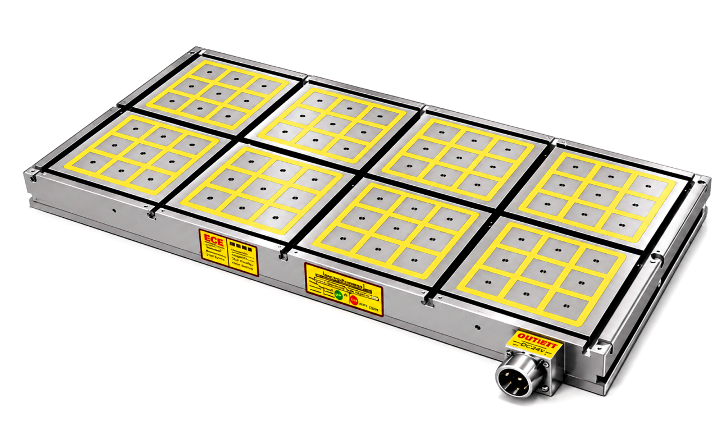

Electro-Permanent Magnetic Chuck
The EEPM-SL magnetic chuck is suitable for medium and small workpieces and is used in conjunction with clamping fixtures, offering versatile functionality. Its clamping surface can evenly cover the entire machining area, enabling five-sided machining, drilling, tapping, slot milling, and forming in a single operation, significantly improving work efficiency.
Specification
Unit:mm
| MODEL NO. | DIMENSION L x W x H | PITCH | POLE | NO. OF POLE | T-SLOT | TOTAL HOLDING POWER kgf±5% | CHUCK N.W. | VOLTAGE (Single Phase) | CURRENT AMP | CONTROLLER (included) | VOLTAGE (Single Phase) | CURRENT AMP | CONTROLLER (included) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EEPM-30100SL | 990×300×70 | 10 | 50×50 | 39 |  |
12100 | 160kg | CHUCK DC 220V CONTROLLER AC 220V / 480V |
24A | C2-G | CHUCK DC 380V CONTROLLER AC 380V / 440V |
16A | C2-B |
| EEPM-40100SL | 990×420×70 | 65 | 20300 | 225kg | 30A | C2-G | 13A | C2-B | |||||
| EEPM-50100SL | 990×500×70 | 72 | 22500 | 260kg | 14A | C4-G | 14A | C2-B | |||||
| EEPM-60100SL | 990×600×70 | 84 | 26200 | 320kg | 22A | C4-G | 9A | C4-B |
