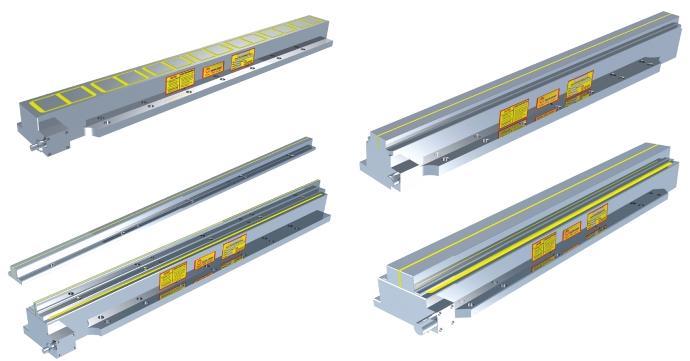

EEPML Series

Linear grinding
https://www.earth-chain.com/web/image/product.template/121/image_1920?unique=6297624

Used on Linear Guideway high precision or high accuracy long strip workpiece drilling, grinding machining...etc.

Patented:Taiwan M415776,Taiwan M456247, China ZL 2013 2 0056033.9


    This combination does not exist.


    FeatureSpecificationPractical Case(Picture)  Practical Case (Video)

    Feature

      • Structure of Electro-Permanent Magnetic Chuck, 1-3 seconds control fo power ON & OFF. No electric power supply required to keep the chuck ON.
    • EEPM Chucks can be connected and one controller can be control muti-EEPM Chucks.
      • Linear guideway or long strip workpieces can be fully clamped by EEPM Chucks for increasing grinding accuracy.
      • It could be used for long time and never get temperatures to affect the accuracy of workpieces.

    Specification

    EEPM-WS Series

    Suitable for large sizes of precision linear guideway or long strip workpiece.

    Unit:mm                                  Customized service-the following specifications are for reference only

    MODEL NO DIMENSION
    L x W x H     		NO. OF
    POLE     		TOTAL HOLDING
    POWER kgf ±5%     		CHUCK
    N.W.    		VOLTAGE
    (Single Phase)    		CURRENT
    AMP    		CONTROLLER
    (included)    		VOLTAGE
    (Single Phase)    		CURRENT
    AMP    		CONTROLLER
    (included)
    EEPM-08102WS  1020×130×80  14 3150 60 kg CHUCK
    DC
    220V

    CONTROLLER
    AC
    220V
    /
    480V    		 20A C1-G CHUCK
    DC
    380V

    CONTROLLER
    AC
    380V
    /
    440V    		 10A C1-B
    EEPM-08104WS  1040×130×80  61 kg
    EEPM-08106WS  1060×130×80  62 kg

    EEPML-11 Series

    Suitable for small, medium and large of linear guideway high precision or long strip workpieces.

    Unit:mm                                   Customized service-the following specifications are for reference only

    MODEL NO DIMENSION
    L x W x H     		NO. OF
    POLE     		TOTAL HOLDING
    POWER kgf ±5%     		CHUCK
    N.W.    		VOLTAGE
    (Single Phase)    		CURRENT
    AMP    		CONTROLLER
    (included)    		VOLTAGE
    (Single Phase)    		CURRENT
    AMP    		CONTROLLER
    (included)
    EEPM-11-08102  1020×130×88  14 2275 65 kg CHUCK
    DC
    220V

    CONTROLLER
    AC
    220V
    /
    480V    		 20A C1-G CHUCK
    DC
    380V

    CONTROLLER
    AC
    380V
    /
    440V    		 10A C1-B
    EEPM-11-08104  1040×130×88  66 kg
    EEPM-11-08106  1060×130×88  67 kg

    EEPML-11-1 Series

    Induction block is changeable, can be suitable for small, medium and large of linear guideway high precision or long strip workpieces.

    Unit:mm                                Customized service-the following specifications are for reference only

    MODEL NO DIMENSION
    L x W x H     		NO. OF
    POLE     		TOTAL HOLDING
    POWER kgf ±5%     		CHUCK
    N.W.    		VOLTAGE
    (Single Phase)    		CURRENT
    AMP    		CONTROLLER
    (included)    		VOLTAGE
    (Single Phase)    		CURRENT
    AMP    		CONTROLLER
    (included)
    EEPM-11-08102-1  1020×130×88  14 2275 63 kg CHUCK
    DC
    220V

    CONTROLLER
    AC
    220V
    /
    480V    		 20A C1-G CHUCK
    DC
    380V

    CONTROLLER
    AC
    380V
    /
    440V    		 10A C1-B
    EEPM-11-08104-1  1040×130×88  64 kg
    EEPM-11-08106-1  1060×130×88  65 kg

    EEPML-15 Series

    Suitable for small, medium and large of linear guideway high precision or long strip workpieces.

    Unit:mm                                    Customized service-the following specifications are for reference only

    MODEL NO DIMENSION
    L x W x H     		NO. OF
    POLE     		TOTAL HOLDING
    POWER kgf ±5%     		CHUCK
    N.W.    		VOLTAGE
    (Single Phase)    		CURRENT
    AMP    		CONTROLLER
    (included)    		VOLTAGE
    (Single Phase)    		CURRENT
    AMP    		CONTROLLER
    (included)
    EEPM-15-15102-1  1020×200×88  28 4550 101 kg CHUCK
    DC
    220V

    CONTROLLER
    AC
    220V
    /
    480V    		 33A C1-G CHUCK
    DC
    380V

    CONTROLLER
    AC
    380V
    /
    440V    		 15A C1-B
    EEPM-15-15104-1  1040×200×88  103 kg
    EEPM-15-15106-1  1060×200×88  105 kg
