ELM-V Series

Vertical Lifting Magnets
https://www.earth-chain.com/web/image/product.template/33/image_1920?unique=84ca266

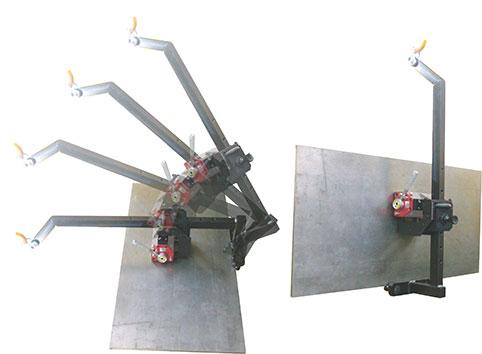

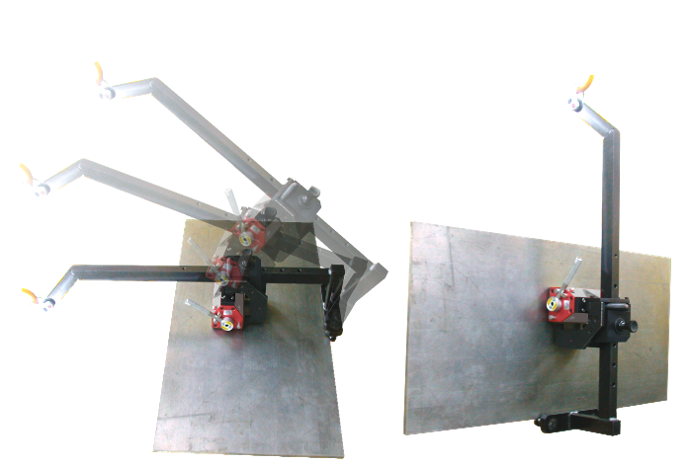

ELM-V Vertical Lifting Magnets
(The device included a Lifting Magnet)

Patented:Taiwan D173646, China ZL 2015 3 0073422.7


    This combination does not exist.


    Feature

    • Fast loading for vertical transport.
    • One person can load and unload.
    • No dangerous straps & slings.

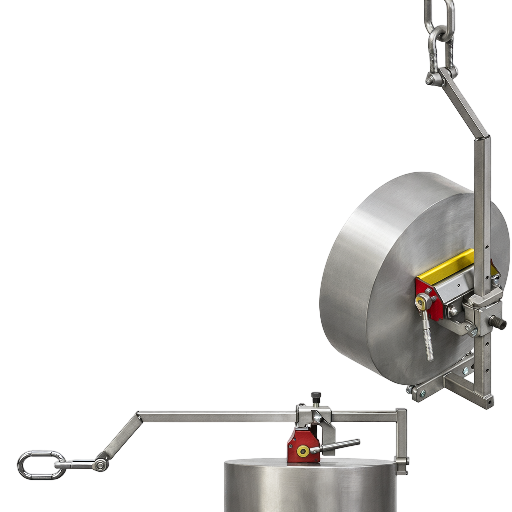

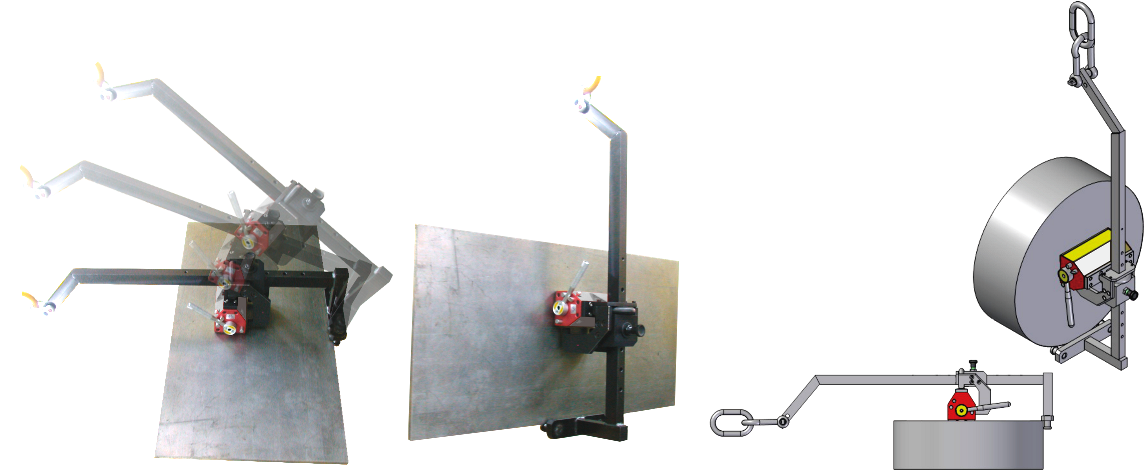

    Used for vertical transport of plate stock for fabricating, machining, etc.



    Specification


    Unit:mm

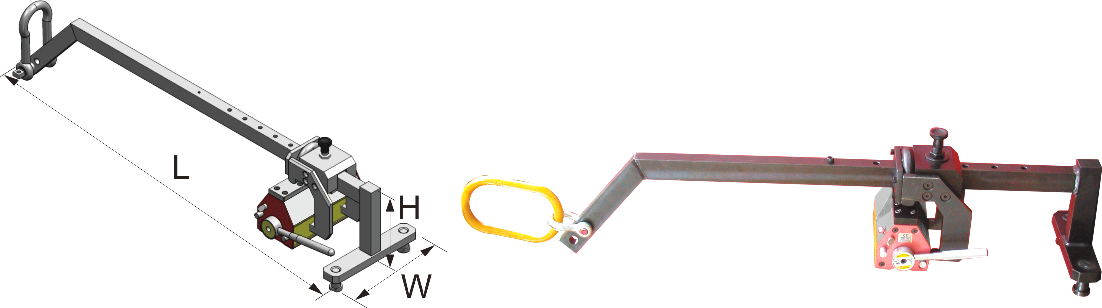

    ModelSize L X W X HWeight
    mminchkglbs
    ELM-300V 953 X 216 X 254 37.5 X 8.5 X 10 26 57
    ELM-600V 1156 X 272 X 254 45.5 X 10.7 X 10 39 86
    ELM-1000V 1207 X 343 X 305 47.5 X 13.5 X 12 58 128


    ModelPlate Size ( L X W X H min/max )
    CapacityL (min. / max.)W (min. / max.)H (min. / max.)
    kglbsmminchmminchmminch
    ELM-300V 300 660 200/1500 8/60 300/800 11.8/31.5 6/150 0.25/5.9
    ELM-600V 600 1320 300/1800 12/72 300/1000 11.8/39.4 8/250 0.31/9.8
    ELM-1000V 1000 2200 300/2000 12.5/79 300/1000 11.8/39.4 10/300 0.93/11.8

     Practical Case (Video)
