In modern metal processing, mold
manufacturing, and precision machinery fields, production cycles are becoming
increasingly shorter, customized production continues to rise, and
mold-changing frequency has consequently increased significantly. How to shorten
mold change time, improve equipment utilization, and reduce operational risks
has become one of the core improvement goals for manufacturers.

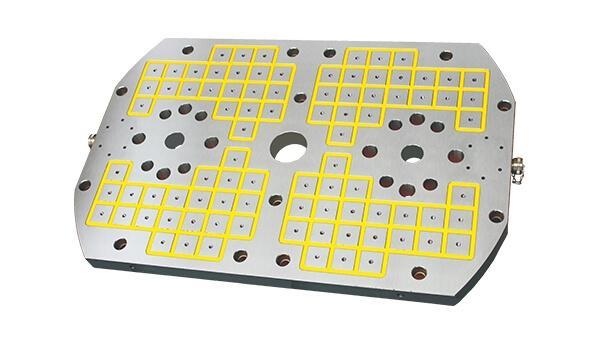

Electro-permanent magnetic chucks, known for their high safety, high efficiency, and stability, have gradually become an important technological option for quick mold change systems. The following explains the main advantages of electro-permanent magnetic chucks in quick mold change applications from the perspectives of functional principles, practical benefits, and operational advantages.
1. Instant Energizing, Permanent Holding Force: Significant Improvement in Mold Change Speed
The key feature of an electro-permanent magnetic chuck is that electricity is used only for magnetization/demagnetization, while the holding force is provided by internal permanent magnets. This means that during a mold change, only a short pulse of electricity is needed to activate or release magnetic force. The entire process takes only 1–3 seconds, far faster than traditional mechanical clamps, bolts, or hydraulic systems.
2. Uniform Holding and Reduced Alignment Time: More Accurate Mold Changes
Traditional clamps often have limited contact area, causing localized stress concentration and requiring repeated alignment or leveling of the workpiece.
In contrast, an electro-permanent magnetic chuck applies uniform magnetic force across the full surface, providing a stable, low-deformation holding environment. This greatly reduces repositioning time after mold changes.
Benefits of uniform magnetic holding include:
* Easy placement of the workpiece with minimal fixture adjustments
* Reduced deformation caused by bolt or clamp pressure
* Improved flatness and stability during grinding and milling
These advantages make post-change machining smoother, reduce trial-cut time, and minimize manpower wasted on repeated adjustments.
3. High Safety: No Loss of Magnetism During Power Outages
Electro-permanent magnetic chucks differ from standard electromagnetic chucks because their holding force comes from permanent magnets. Therefore:
* Holding force remains at 100% even when power is lost
* No risk of workpieces falling due to power failure, loose plugs, or cable damage
* No need for continuous power, offering higher operational safety
This feature provides peace of mind during mold changes or workpiece handling and prevents accidents that could damage machines or cause injury. It is especially valuable for heavy workpieces or high-risk environments such as surface grinders and milling machines.
4. No Consumables and Minimal Maintenance: Lower Long-Term Mold Change Costs
Electro-permanent magnetic chucks have almost no moving parts and require no hydraulic oil, seals, hoses, or related consumables. As a result, maintenance requirements are far lower than hydraulic or mechanical clamping systems.
Key advantages include:
* No need for periodic replacement of hoses or pressure valves
* No issues with oil leakage or insufficient hydraulic pressure
* Service life typically exceeds 10 years
* Only 1–3 seconds of energizing needed, resulting in extremely low power consumption
Over long-term use, companies can significantly reduce maintenance and downtime costs, further enhancing mold change efficiency and stability.
5. Compatible With Automation: Enhances Overall Production Capacity
Electro-permanent magnetic chucks can be easily integrated into automatic mold change systems and unmanned production lines:
* Controlled via PLC for mold clamping/unclamping
* Integrated with robotic arms for automatic loading and unloading
* No need for operators to repeatedly tighten screws or adjust the workpiece
This greatly improves manufacturing flexibility without major increases in equipment investment, making it ideal for small-batch, multi-variety production.
6. Improved Working Environment and Operational Comfort
Traditional mold changes require repeated bending, tightening bolts, and moving heavy fixtures—tasks that are time-consuming and increase the risk of workplace injuries.
An electro-permanent magnetic chuck requires only a button press to complete the mold change, making it highly user-friendly:
* No need for operators to handle high-pressure hydraulic systems
* Reduced heavy lifting and clamping operations
* Enhanced workplace safety and productivity
These improvements lead to lower operator fatigue and more consistent machining quality.
Conclusion: Electro-Permanent Magnetic Chucks Are a High-Efficiency Quick Mold Change Solution
In summary, the advantages of electro-permanent magnetic chucks in quick mold change operations include:
* Fast mold changes: magnetic switching in seconds
* Precise positioning: uniform force reduces alignment time
* High safety: no loss of magnetism during power failure
* Low maintenance and cost: virtually no consumables or failure points
* Automation-ready: compatible with CNC systems and robotic arms
* Improved ergonomics: safer and easier operation
For manufacturers seeking to shorten process times, improve production capacity, enhance safety, and reduce maintenance costs, electro-permanent magnetic chucks are not only an upgrade in mold change technology but also a strategic investment for overall process improvement.
