Maximizing 5-Axis CNC Machining with Electro-Permanent Magnetic Chucks
In today’s competitive manufacturing world, companies are investing heavily in 5-axis CNC machines—and for good reason. These machines are known for their flexibility, precision, and ability to machine complex geometries in fewer setups.
But there’s a hidden
problem that many manufacturers overlook.
Even with the most advanced machines on the shop floor, many are still using
outdated workholding methods—clamps, bolts, and fixtures that were never
designed for 5-axis freedom. And that’s where time, efficiency, and precision
are quietly slipping away.
A Familiar Challenge in High-Precision Shops
You’ve just installed a brand-new 5-axis CNC gantry machine. Your team is excited, and the first job is a complex aluminum part that needs multi-angle machining. The machine is more than capable—but your setup? That’s another story.
The operator begins
securing the workpiece using traditional clamps.
They need to leave enough space for the tool to reach multiple faces, but the
clamps are in the way. So they machine what they can, stop the process,
reposition the part, check alignment, and start again. This happens two or
three times during a single job.
Each interruption costs
time.
Each re-clamping introduces the risk of error.
And the part that was supposed to be finished in one setup?
It now takes hours—and three setups.
This is the silent
struggle of many modern factories:
High-end machines held back by outdated clamping.
The Turning Point – Rethinking Workholding

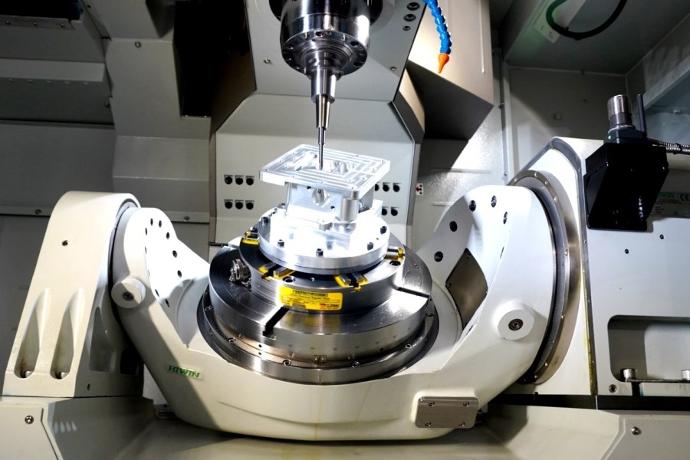

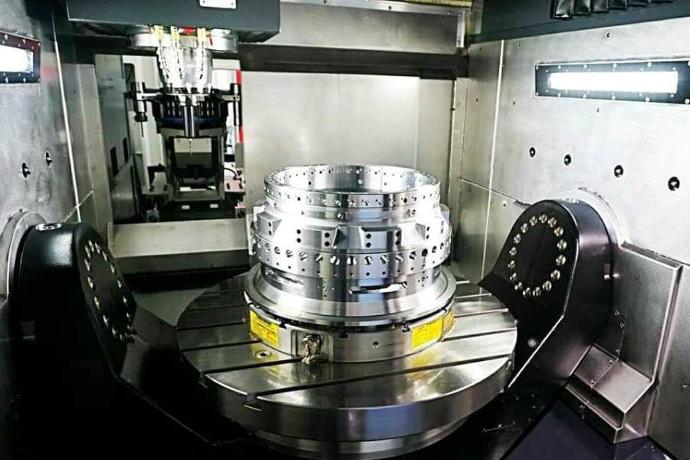

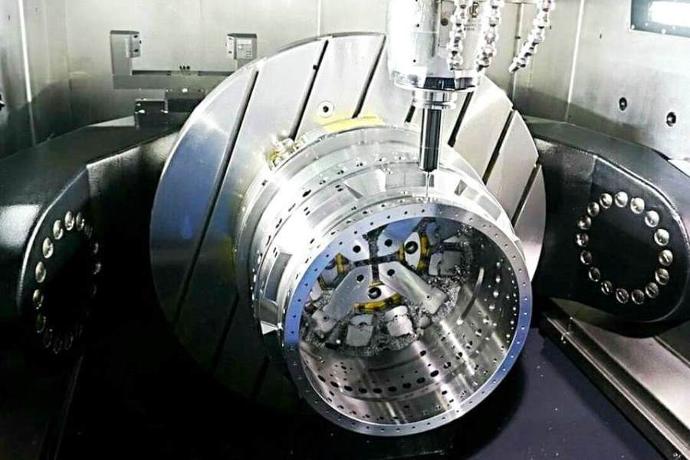

Now, imagine the same scenario—but with an electro-permanent magnetic chuck installed on the machine table.
No clamps. No bolts. No obstruction. Just a flat, clean magnetic surface holding the entire base of the workpiece evenly and securely.
The operator loads the
part and activates the magnetic chuck with the press of a button.
In seconds, the workpiece is locked in place with full access on all five
visible faces.
No need to reposition. No need to re-align. The machine gets to work—and it
doesn’t stop until the job is done.
That’s the power of
magnetic clamping in 5-axis machining.
It’s not just a workholding method—it’s an upgrade to your entire process.
Why Magnetic Chucks Are Ideal for 5-Axis Machines
The design and functionality of 5-axis machines demand workholding that keeps up. Here’s why electro-permanent magnetic chucks are the perfect match:
🧲 1. Unobstructed Access to Five Faces
Traditional clamps always take up space—space that a 5-axis toolpath might need. Magnetic chucks clamp from underneath, leaving five full surfaces of the workpiece free for machining.
⚙️ 2. One Setup for Full Machining
Repositioning is a time killer. With magnetic clamping, complex parts can be machined in one setup, reducing the chance for alignment errors and improving precision.
⏱️ 3. Faster Setup and Changeover
Gone are the long minutes (or hours) spent tightening bolts and checking levels. Magnetic chucks clamp or release a part in just seconds, dramatically improving machine uptime.
🔋 4. Power-Efficient and Fail-Safe
Electro-permanent technology means the chuck only uses electricity to clamp or unclamp—no continuous power is needed during machining. And if the power goes out, the magnet holds the part firmly in place, ensuring safety.
🛠️ 5. Extended Tool and Workpiece Life
Because the entire
bottom surface of the workpiece is supported evenly, there are no pressure
points or distortion—protecting both the part and your tooling.
Real-World Application: From Downtime to Productivity
One of our customers, a precision parts manufacturer, recently transitioned their 5-axis operations from mechanical clamping to our EEPM Series magnetic chucks. Before the switch, setup took nearly 45 minutes per part due to re-clamping and alignment.
After installing the
magnetic system, setup time dropped to under 10 minutes.
The operator could machine all faces in one go.
More parts were finished per shift.
Tool wear decreased.
And the customer told us, “This is how 5-axis machining is meant to be
used.”
The Future of 5-Axis Workholding Starts Now
Manufacturers invest in 5-axis CNC machines to increase flexibility, improve accuracy, and reduce production time. But to truly unlock those benefits, you need a clamping system that complements the machine’s strengths.
Electro-permanent
magnetic chucks
are built for the future of manufacturing.
They bring speed, safety, precision, and energy efficiency to your 5-axis
workflow—so your machines can work at their full potential.
