EEPM-TA Series
Suitable for big size of workpiece only, used together with mechanical clamping tool for heavy duty machining.

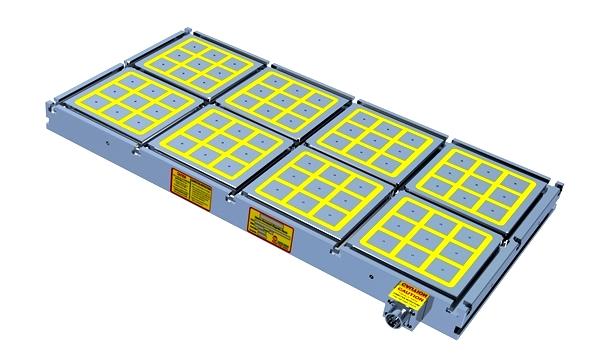

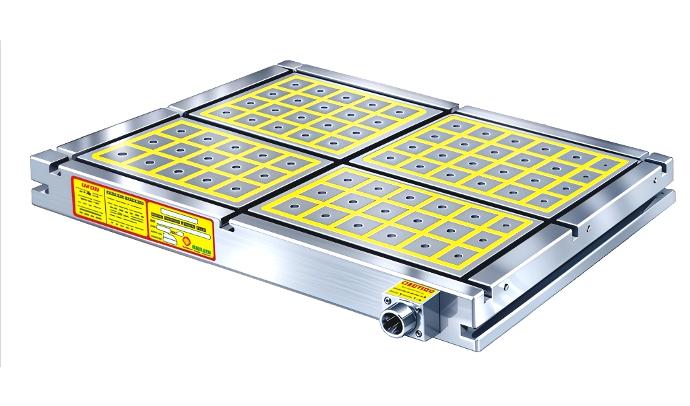

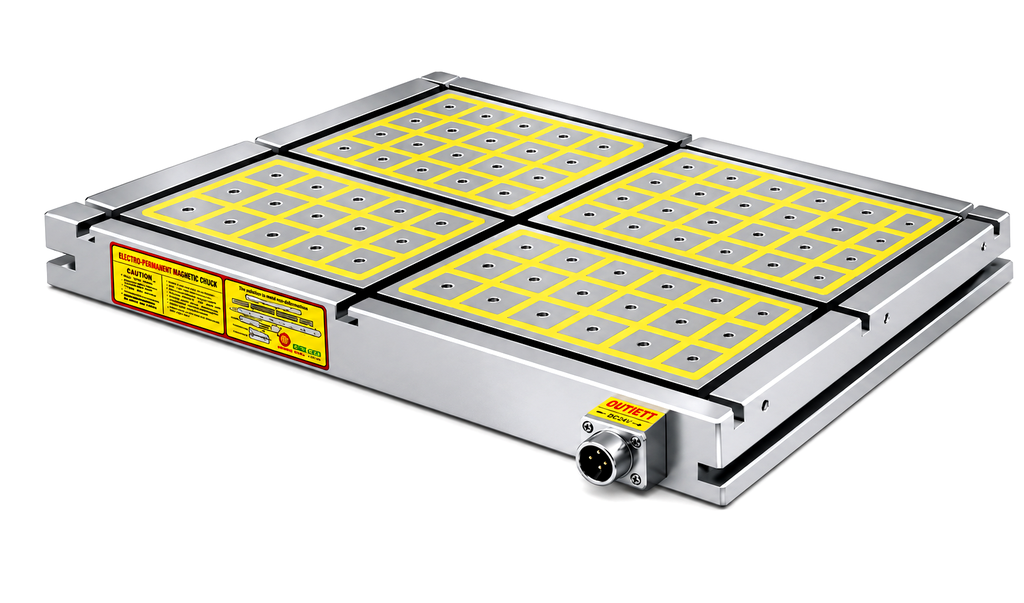

Electro-Permanent Magnetic Chuck
The EEPM-TA magnetic chuck is suitable for medium to large workpieces. When used with clamping plates and fixtures, it can handle heavy cutting. Its clamping area evenly covers the entire machining surface, enabling five-sided machining, drilling, tapping, milling grooves, and forming operations to be completed in a single setup, significantly improving work efficiency.
Specification
Unit:mm

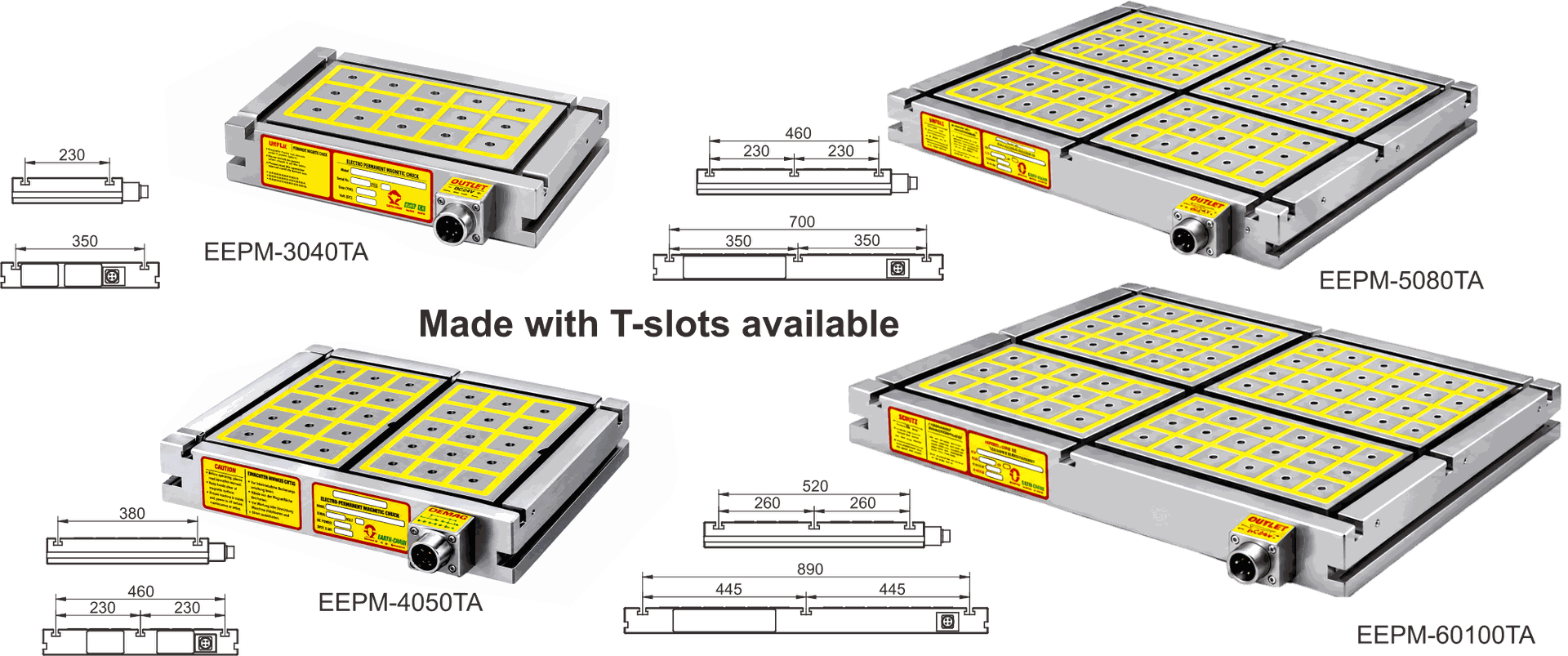

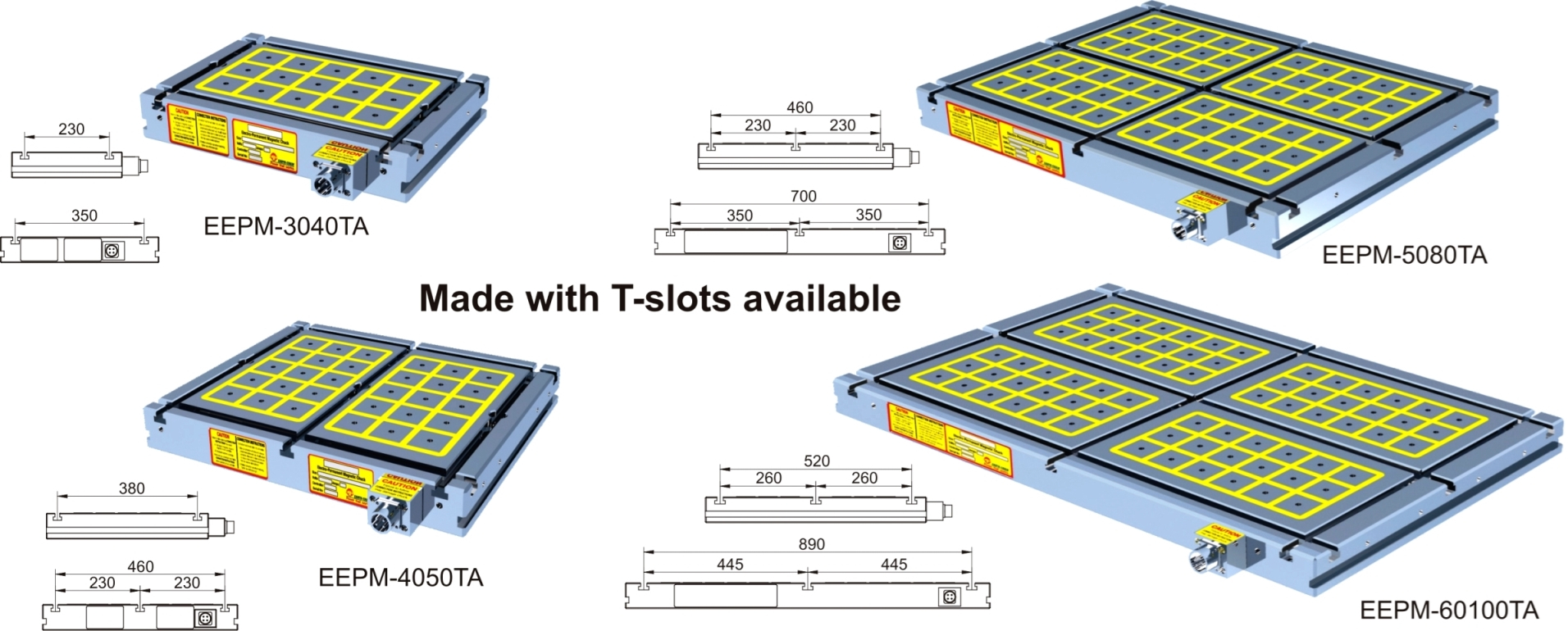

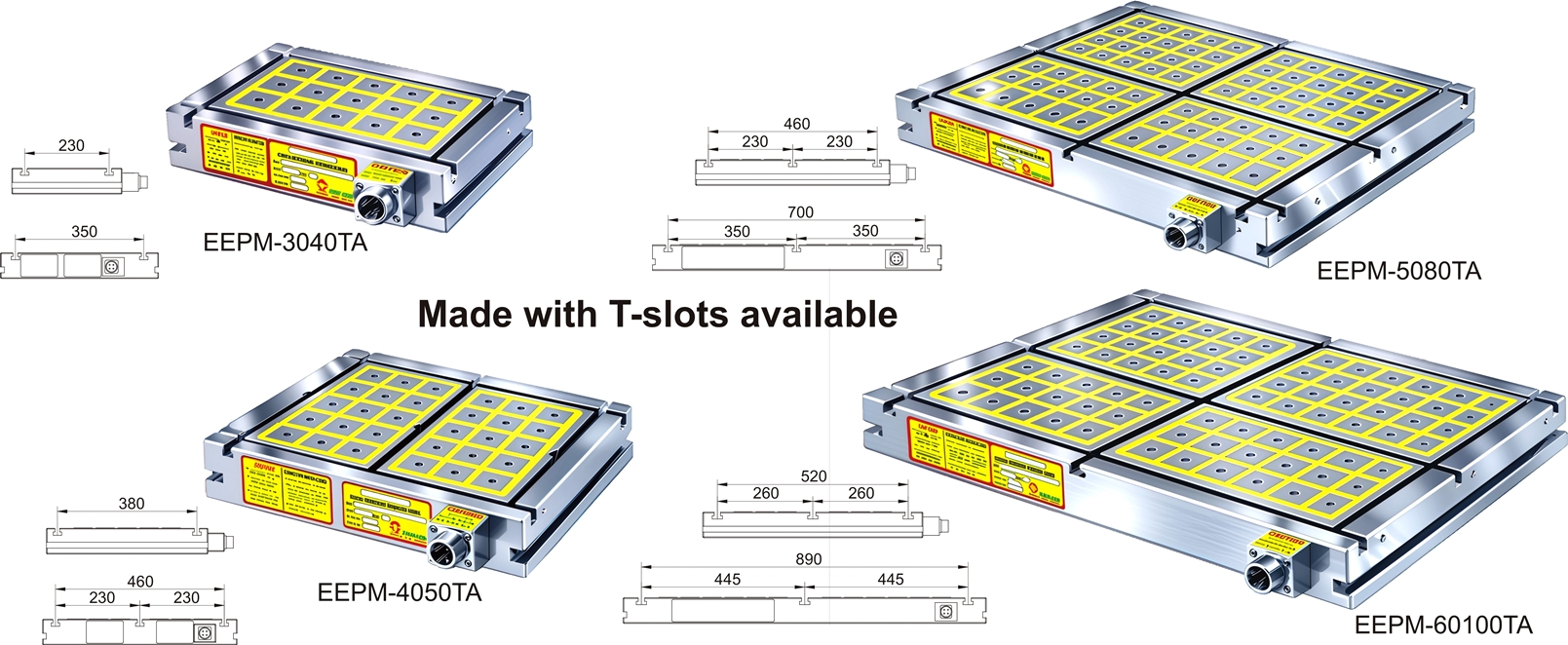

| MODEL NO. | DIMENSION L x W x H | PITCH | POLE | NO. OF POLE | T-SLOT | TOTAL HOLDING POWER kgf±5% | CHUCK N.W. | VOLTAGE (Single Phase) | CURRENT AMP | CONTROLLER (included) | VOLTAGE (Single Phase) | CURRENT AMP | CONTROLLER (included) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EEPM-3040TA | 420×300×70 | 10 | 50×50 | 15 |  |
4600 | 50kg | CHUCK DC 220V CONTROLLER AC 220V / 480V |
17A | C1-G | CHUCK DC 380V CONTROLLER AC 380V / 440V |
14A | C1-B |
| EEPM-4050TA | 530×440×70 | 30 | 9300 | 80kg | 33A | C1-G | 16A | C1-B | |||||
| EEPM-5080TA | 790×530×70 | 60 | 18700 | 180kg | 32A | C2-G | 14A | C2-B | |||||
| EEPM-60100TA | 990×600×70 | 72 | 22500 | 240kg | 23A | C4-G | 13A | C2-B |
