In the modern field of precision machining,
vertical lathes and CNC five-axis machining centers have become essential
equipment for handling large, complex, or high-precision workpieces due to
their high rigidity, efficiency, and multi-surface machining capabilities.
However, as workpieces diversify, precision requirements increase, and
production lines face greater pressure to improve efficiency, traditional
fixtures (such as mechanical chucks, hydraulic fixtures, and jaw chucks) have
increasingly revealed issues such as uneven clamping, significant workpiece
deformation, long changeover time, and high maintenance costs.
Permanent
electro-magnetic chucks, with features such as instantaneous magnetization,
permanent holding force, safety and stability, no consumables, and
compatibility with automation, are rapidly becoming a key clamping solution for
vertical lathes and five-axis machining centers. The following sections explain
their advantages from five perspectives: clamping accuracy, machining
efficiency, safety, equipment integration, and cost effectiveness.
1. Uniform Clamping Force Enhances Accuracy and Reduces Workpiece Deformation
Vertical lathes and five-axis machining often involve thin-wall parts, large-surface components, or high-precision geometric machining. Traditional mechanical jaws and hydraulic chucks frequently cause localized force issues that lead to:
* Workpiece deformation
* Increased vibration during machining
* Uneven cutting loads
* Unstable dimensional accuracy
Permanent electro-magnetic chucks provide the following benefits:
1.1 Full-surface clamping with evenly distributed force
The chuck applies uniform magnetic force across the entire bottom surface of the workpiece, avoiding stress concentration and maintaining high stability during high-speed or heavy-cut machining.

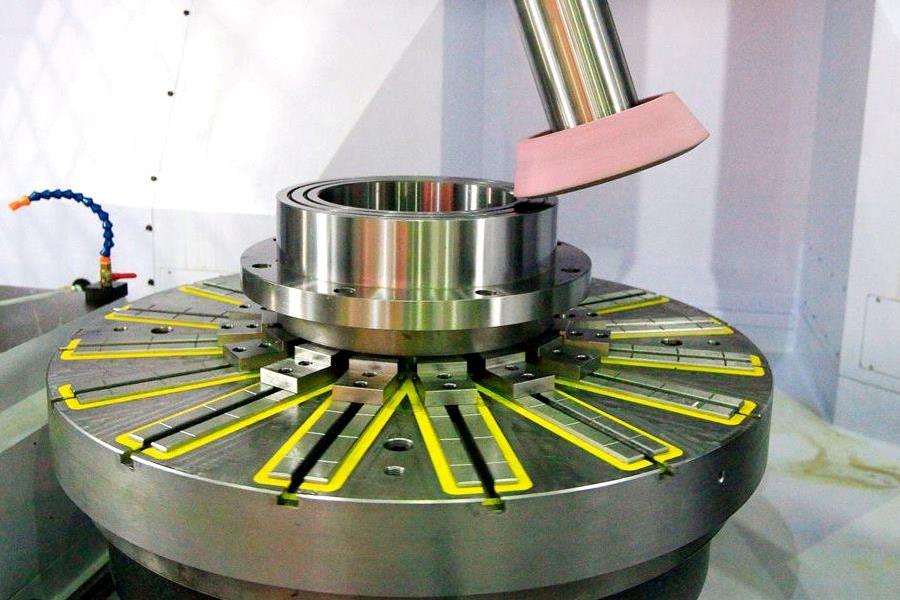

1.2 Reduced deformation for thin plates, rings, and castings

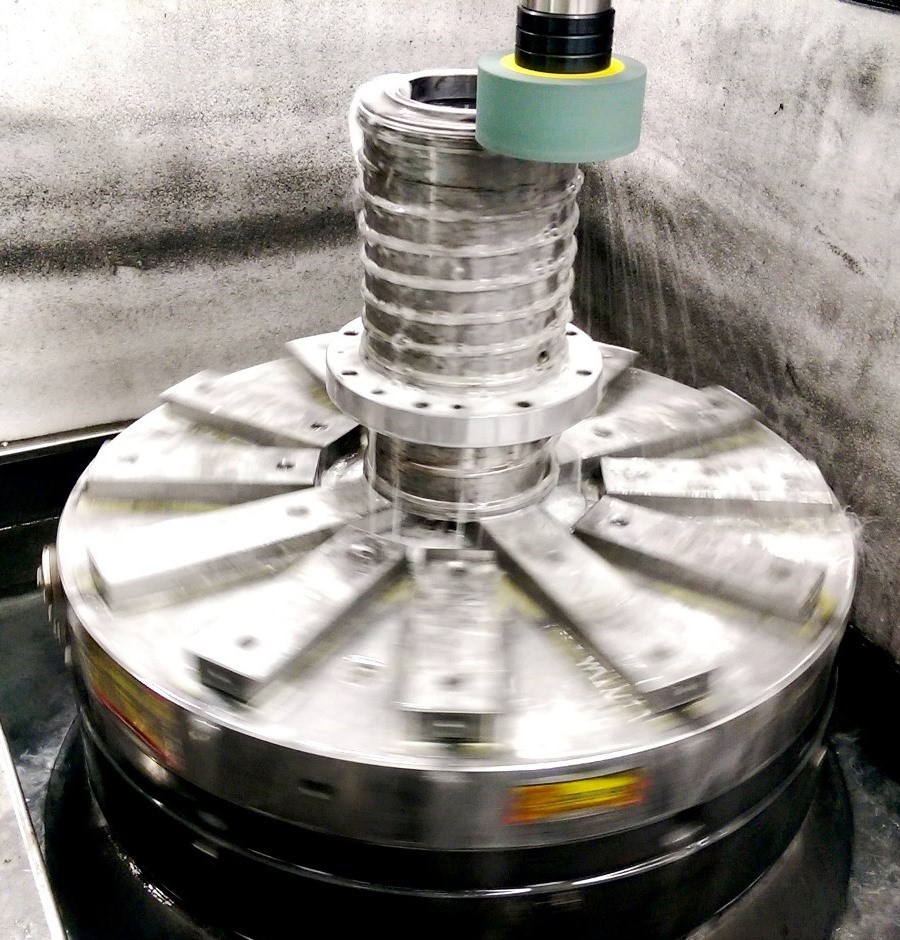

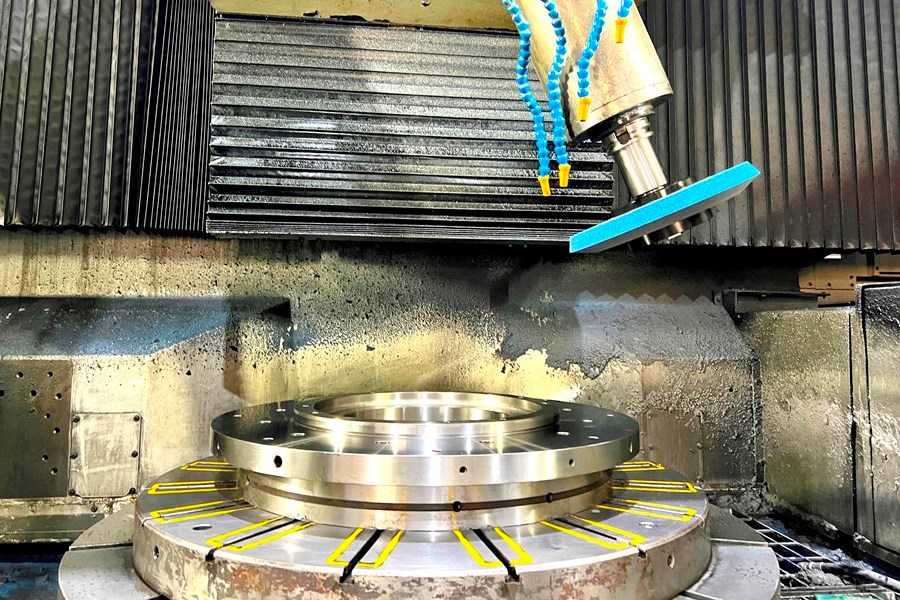

Especially suitable for vertical lathes machining large flanges, ring-shaped parts, turbine housings, pump bodies, and other deformation-prone components.

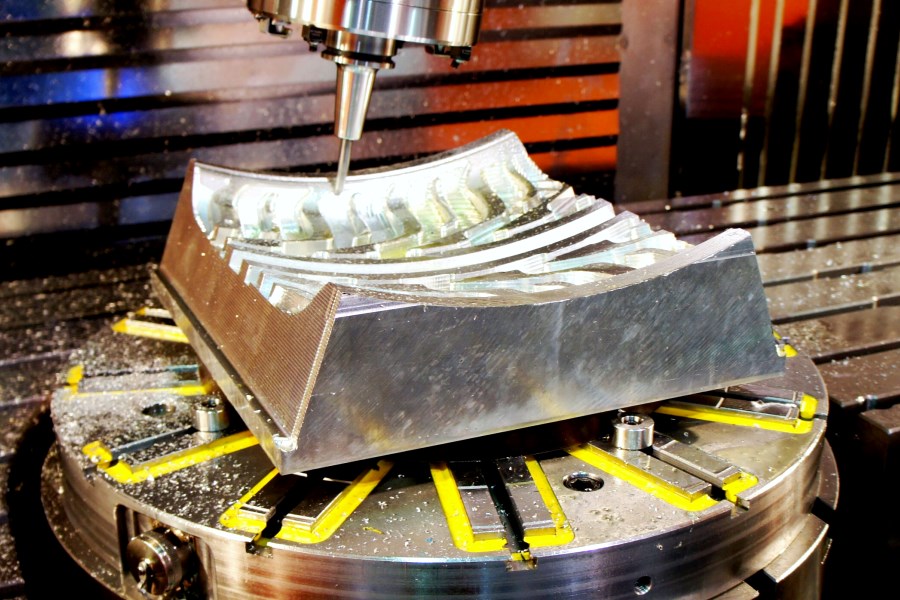

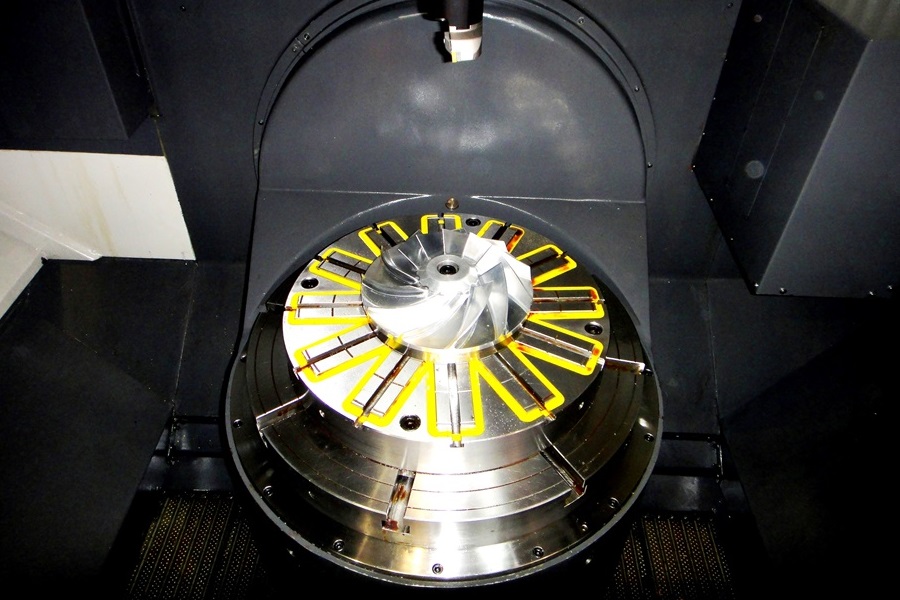

1.3 Improved dynamic stability in five-axis machining
Because the workpiece rotates and tilts in multiple directions, uniform magnetic force minimizes vibration caused by biased clamping, improving surface finish quality.
2. Fast Clamping Greatly Reduces Workpiece Changeover Time
In five-axis and vertical lathe machining, fixture changeover consumes substantial non-cutting time and often becomes a production bottleneck. Permanent electro-magnetic chucks enable-1–3 second magnetization/demagnetization, with electricity used only at the moment of activation or release—far faster than:
* Traditional jaw chucks that require repeated jaw adjustments
* Hydraulic fixtures that wait for pressure buildup
* Custom fixtures that require complex alignment
2.1 Simplified clamping process
Place workpiece → press button → start machining
No screws, jaw adjustments, or leveling are required, improving production takt time.
2.2 Ideal for high-mix, low-volume production
Five-axis machining commonly handles diverse and low-quantity parts. Magnetic chucks quickly adapt to different sizes and materials, reducing fixture development time.
3. High Safety: No Loss of Force During Power Failure, Reliable for Heavy Cutting
The key safety advantage of permanent electro-magnetic chucks is:
3.1 100% holding force even when power is off**
Since the main force comes from permanent magnets, it is unaffected by power interruptions, preventing:
* Workpieces falling during power outage
* Pressure loss in hydraulic fixtures causing loosening
* High-risk incidents during five-axis tilted machining
3.2 High rigidity suitable for heavy-duty cutting
Vertical lathes often require heavy-cut or high-feed machining. Magnetic force ranging from several tons to several tens of tons ensures stable clamping for large castings and heavy-duty workpieces.
3.3 No overheating issues
Traditional electromagnetic chucks require constant power and tend to overheat, reducing magnetic force. Permanent electro-magnetic chucks completely avoid this problem.
4. No Consumables and Low Maintenance Reduce Long-Term Costs
Traditional fixtures for vertical lathes and five-axis machines often require extensive maintenance:
* Hydraulic fixtures need seal, hose, and pump replacement
* Mechanical chucks require regular calibration and lubrication
* Large custom fixtures are expensive and must be stored long term
Permanent electro-magnetic chucks provide:
4.1 Virtually zero consumables
No hydraulic components or moving parts—no oil or seals to replace.
4.2 Service life exceeding 10 years
Magnetic force does not deteriorate, and the structure is highly durable.
4.3 Extremely low energy consumption
Electricity is used only during magnetization/demagnetization, making it far more energy-efficient than hydraulic or electromagnetic systems.

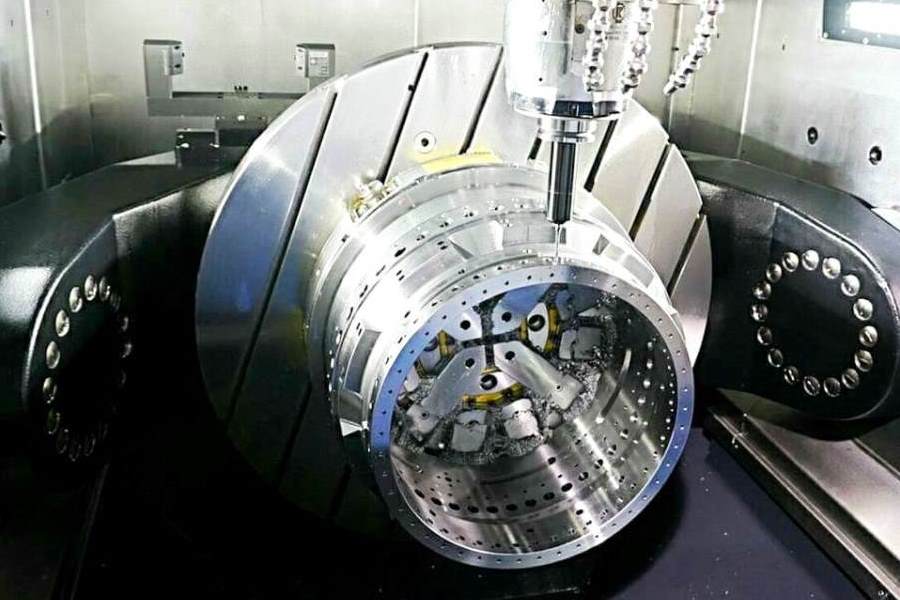

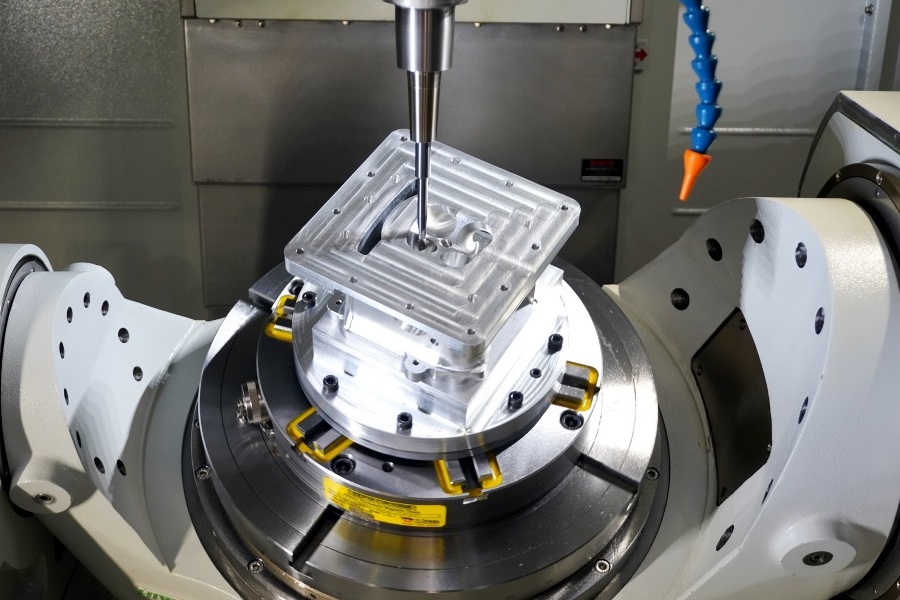

5. High Flexibility for Multi-Surface Machining in Five-Axis Applications
Five-axis machining requires the workpiece to tilt, rotate, and undergo multi-surface cutting. Permanent electro-magnetic chucks offer:
5.1 Unobstructed four-sided or multi-sided machining
No jaws blocking the tool path, allowing a single setup to complete:
* Profile machining
* Chamfering
* Side milling
* Light cavity machining
This improves first-pass yield and reduces errors caused by re-clamping.

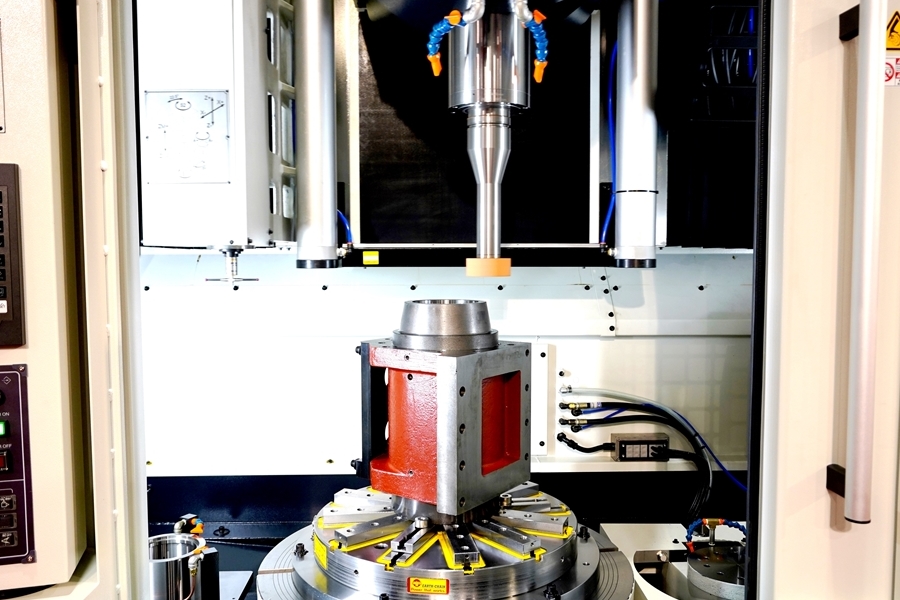

5.2 Flexible workpiece support configuration
Can be paired with magnetic blocks, pole extensions, and adjustable supports to accommodate complex curves or irregular shapes.

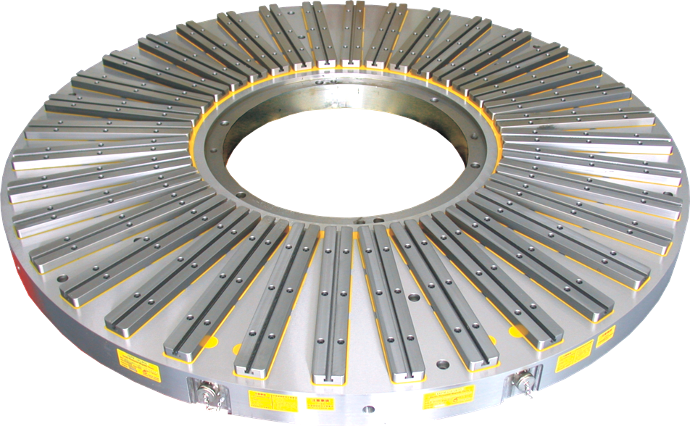

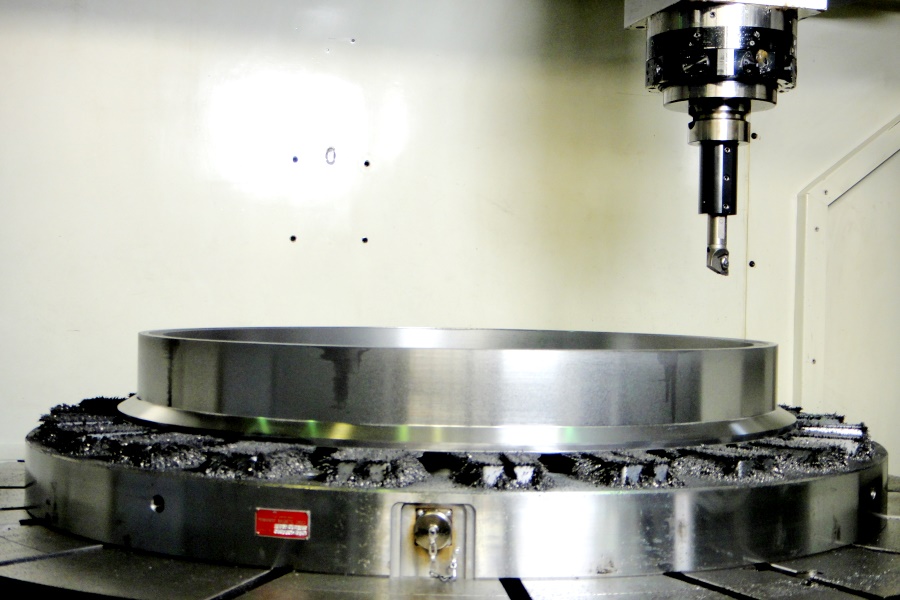

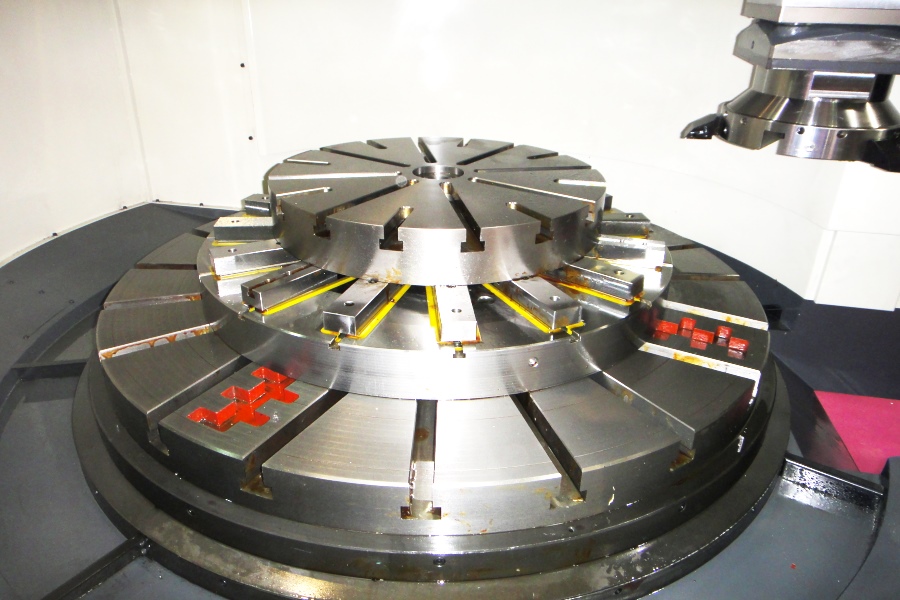

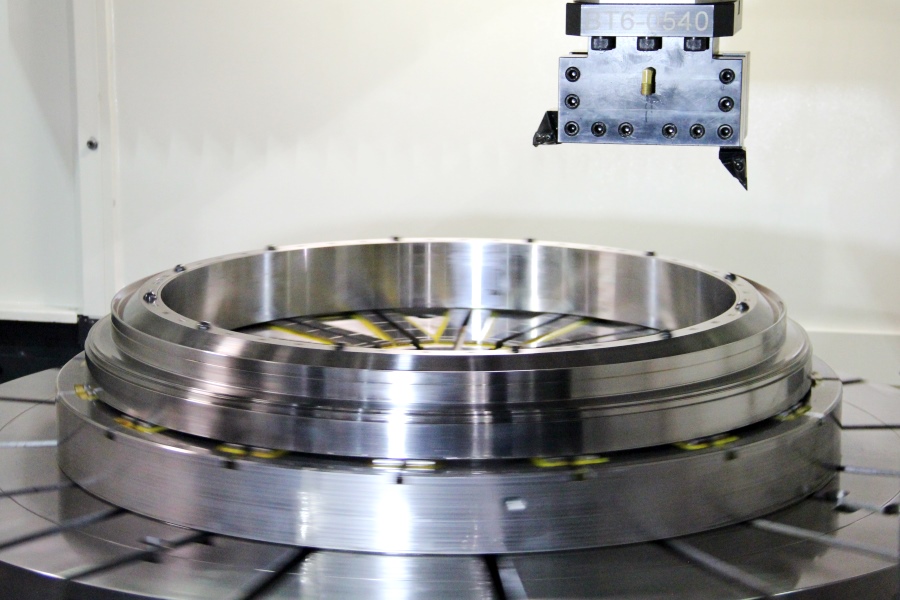

5.3 Fully open center for vertical lathe ring-shaped parts
Unlike jaw chucks, magnetic chucks have an open center, ideal for machining internal diameter features and grooves.
6. Ideal for Automation and Smart Manufacturing
Permanent electro-magnetic chucks can be integrated with:
* CNC controllers
* Robotic arms
* Automatic mold/fixture change systems (AMC)
* Smart factory monitoring systems (MES)
This enables automated loading/unloading and unmanned machining, aligning with Industry 4.0 and smart manufacturing trends.
Permanent electro-magnetic chucks offer high precision, high stability, safety, fast changeover, low maintenance, and excellent flexibility when used on vertical lathes and five-axis machining centers. They not only improve machining quality but also significantly reduce non-cutting time, minimize workpiece deformation, and enhance automation capability.
For
companies aiming to improve production efficiency, optimize machining quality,
and reduce total equipment cost, adopting permanent electro-magnetic chucks is
not merely an upgrade in clamping technology—it is a long-term, competitive,
and intelligent investment.
